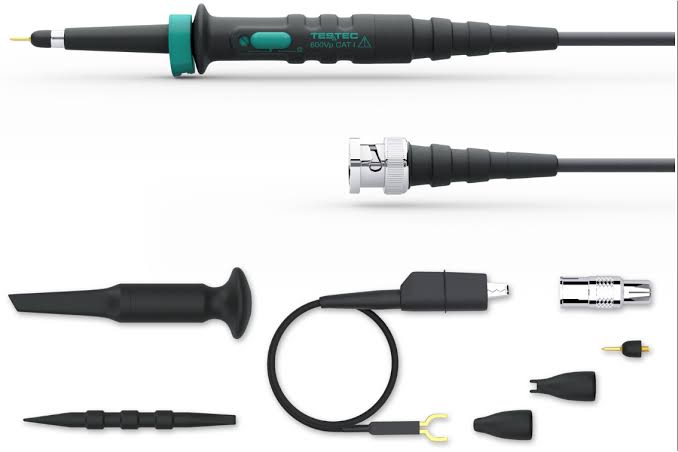

Modular Probe 1:1 25MHz 1,2m Cable
Varenummer:
90-403
Varekode: TTLF112
Vægt: 75 g
0 stk.
på lager
Gruppe:
M5531
TESTEC Passive Modular Probes
For Oscilloscopes up to 150MHz
Series: TTLF
TESTEC Passive Modular Probes
For Oscilloscopes up to 150MHz
Series: TTLF
| Features |
| • Modular probes for all common oscilloscopes • Ergonomic design • Excellent manufacturing quality • Large selection of accessories included |
 |
| TTLF112 |
| Probe 1:1 |
|
| Technical Specifications |
| |
| Attenuation: | 1x |
| Input Impedance | |
| R:1) | 1MW |
| C: | 45pF |
| Bandwidth: | 25MHz |
| Rise Time: | 14ns |
| Input Voltage, Max.:2) | 600V |
| Cable Length: | 1,2m |
| 1) 1MW Input Resistance of Oscilloscope, 2) Maximum Input Voltage, DC incl. AC Peak (Derate with Rising Frequency). Attenuation 1:1 Max. Input Voltage 400V, DC including AC Peak (Derate with Rising Frequency) | |
| |
| TTLF212 |
| Probe 10:1 |
|
| Technical Specifications |
| |
| Attenuation: | 10x |
| Input Impedance | |
| R: | 10MW |
| C: | 14pF |
| Bandwidth: | 150MHz |
| Rise Time: | 2,3ns |
| Input Voltage, Max.:1) | 600V |
| Compensation Range: | 10...30pF |
| Cable Length: | 1,2m |
| 1) Maximum Input Voltage, DC incl. AC Peak (Derate with Rising Frequency) | |
| |
| TTLF312, TTLF312-2 |
| Probe 1:1 and 10:1 |
|
| Technical Specifications |
| |
| Attenuation: | 1x/10x |
| Input Impedance | |
| R, 1x/10x: | 11)/10MW |
| C, 1x/10x: | 47pF/15,5pF |
| Bandwidth, 1x/10x: | 15MHz/150MHz |
| Rise Time, 1x/10x: | 24ns/2,3ns |
| Input Voltage, Max.:2) | 600V |
| Compensation Range: | 10...30pF |
| Cable Length: | 1,2m |
| 1) 1MW Input Resistance of Oscilloscope, 2) Maximum Input Voltage, DC incl. AC Peak (Derate with Rising Frequency). Attenuation 1:1 Max. Input Voltage 400V, DC including AC Peak (Derate with Rising Frequency) | |
| |
| Selection Table |
| Contents | TTLF312 | TTLF312-2 |
| Probe: | 1 | 2 |
| Ground Lead: | 1 | 2 |
| Probe Tip: | 1 | 1 |
| Insulating Cap: | 1 | - |
| Insulating Cap IC: | 1 | - |
| BNC Connector: | 1 | - |
| Alignment Tool: | 1 | 1 |
| Hook Clip: | 1 | 2 |
| ||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece Delivery contents: accessories as per diagram |
|
| Manufacturer |
 |
| http://www.testec.de |
|
