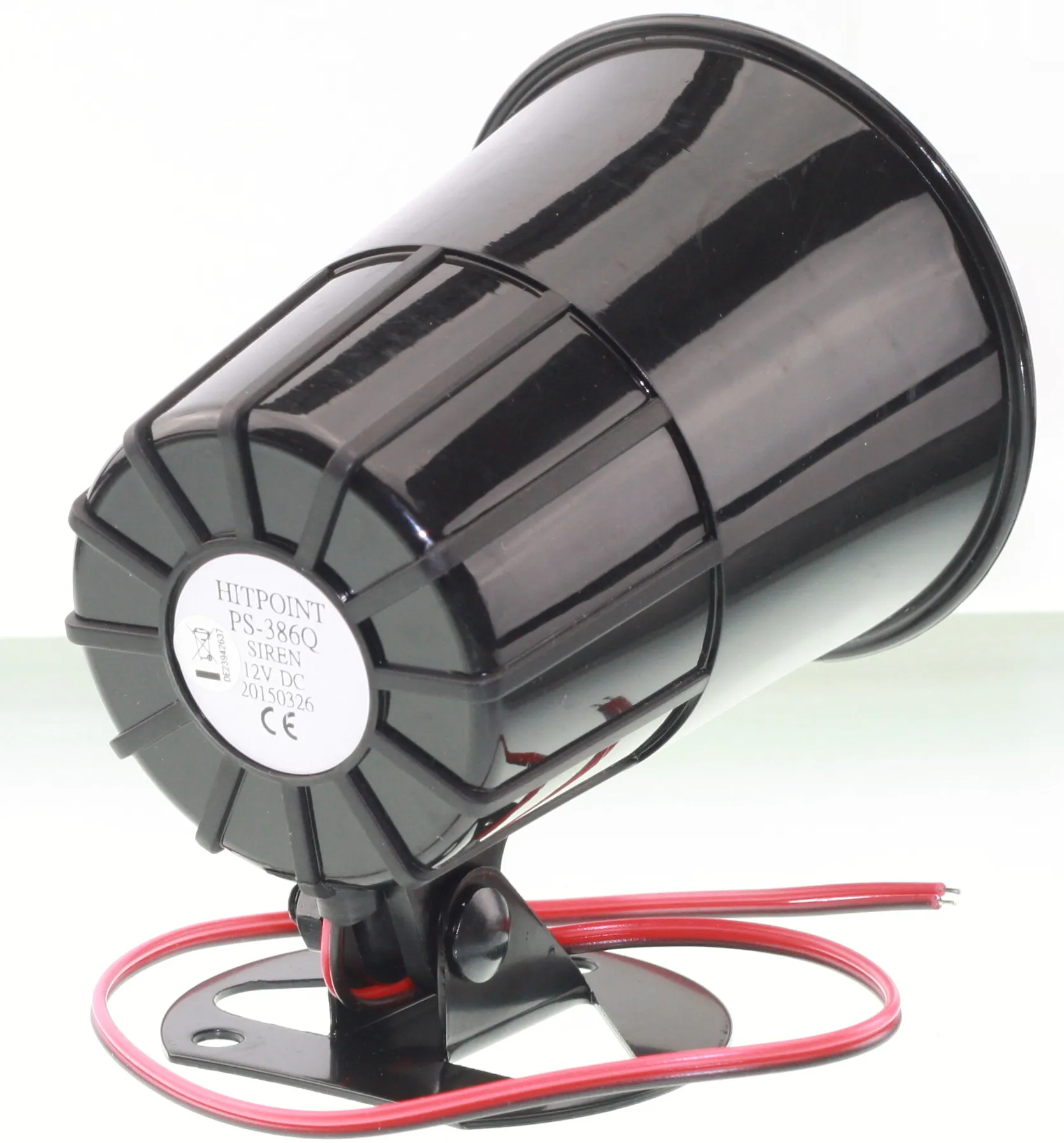

Horn-Sirene 6 tones; 12VDC 115dB
Varenummer:
90-307
Varekode: HOS386
Vægt: 467 g
10 stk.
på lager
PS-386Q
Material and Weight
| Housing | ABS 757 UL94HB plasitic resin |
| Color | Black |
| Wire | 20 AWG |
| Weights (g) | 383.2 |
Electrical Characteristics
| Oscillation Frequency | 1.5 ± 3.5 | KHz |
| Operation Voltage | 5 ~ 15 | Vdc |
| Rated Voltage | 12 | Vdc |
| Current Consumption (Max.) | 1200 at Rated Voltage | mA |
| Sound Pressure Level (Min.) | 115 at 100 cm at Rated Voltage | dB |
| Tone / Pulse Rate | Six Tone | |
| Operating Temperature | -20 ~ +70 | °C |
| Storage Temperature | -30 ~ +80 | °C |
Dimensions PS-386Q
