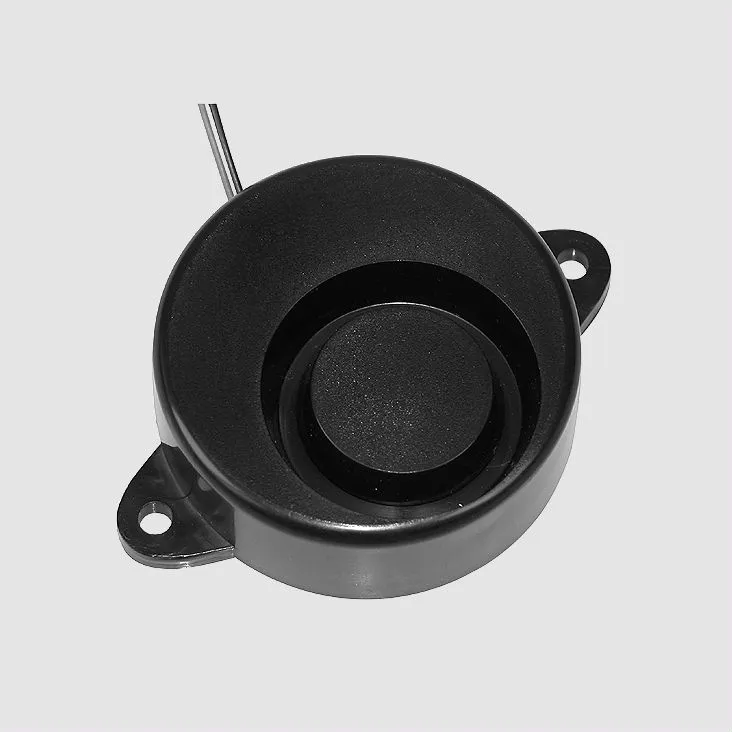

Piezo-Sirene 12V 1,5-3,5kHz 100dB
Varenummer:
90-299
Varekode: PS583Q
Vægt: 32 g
104 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 4457 stk. kan skaffes tirsdag d. 20/10
Gruppe: H1511
HITPOINT Piezo Sirens
Series: PS5, PS6
| Features |
| • Very high sound output, • High reliability and long life |
 |
| PS523AQ |
| Piezo Siren with High and Low Tones |
|
| Technical Specifications |
|
|||||||||||||||
| Operating Voltage: | 12V DC | Operating Frequency: | 1,5...4,0kHz | Current Consumption: | 200mA/12V DC | S.P.L.1): | 105dB/12V DC | Pulse Rate: | 4,5Hz±20% | Operating Temperature: | -20...+70°C | Storage Temperature: | -30...+80°C | ||
| 1) Within 1m Range | |||||||||||||||
|
|||||||||||||||
| PS532Q, PS552Q |
| Dual Tone Piezo Sirens with Changing Tones |
|
| Technical Specifications |
|
|||||||||||||||
| Operating Voltage: | 12V DC | Operating Frequency: | 2,3...3,5kHz | Current Consumption: | 200mA/12V DC | S.P.L.1): | 105dB/12V DC | Pulse Rate: | 1,2Hz±20% | Operating Temperature: | -20...+70°C | StorageTemperature: | -30...+80°C | ||
| 1) Within 1m Range | |||||||||||||||
|
|||||||||||||||
| PS693Q |
| Piezo Siren with High and Low Tones |
|
| Technical Specifications |
|
|||||||||||||||
| Operating Voltage: | 12V DC | Operating Frequency: | 1,5...3,8kHz | Current Consumption: | 200mA/12V DC | S.P.L.1): | 110dB/12V DC | Pulse Rate: | 3,3Hz±20% | Operating Temperature: | -20...+70°C | StorageTemperature: | -30...+80°C | ||
| 1) Within 1m Range | |||||||||||||||
|
|||||||||||||||
| PS583Q Pulserende tone |
| Piezo Siren with High and Low Tones |
|
| Technical Specifications |
|
|||||||||||||||
| Operating Voltage: | 12V DC | Operating Frequency: | 1,5...3,5kHz | Current Consumption: | 300mA | S.P.L.1): | 100dB | Pulse Rate: | 3,3Hz±20% | Operating Temperature: | -20...+70°C | StorageTemperature: | -30...+80°C | ||
| 1) Within 1m Range | |||||||||||||||
|
|||||||||||||||
| PS593SCQ |
| Piezo Sirens with High and Low Tones |
|
| Technical Specifications |
|
|||||||||||||||
| Operating Voltage: | 12V DC | Operating Frequency: | 1,5...3,5kHz | Current Consumption: | 250mA | S.P.L.1): | 115dB | Pulse Rate: | 3,3Hz±20% | Operating Temperature: | -20...+70°C | StorageTemperature: | -30...+80°C | ||
| 1) Within 1m Range | |||||||||||||||
|
|||||||||||||||
| Labelling |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.hitpoint.com.tw |
|
