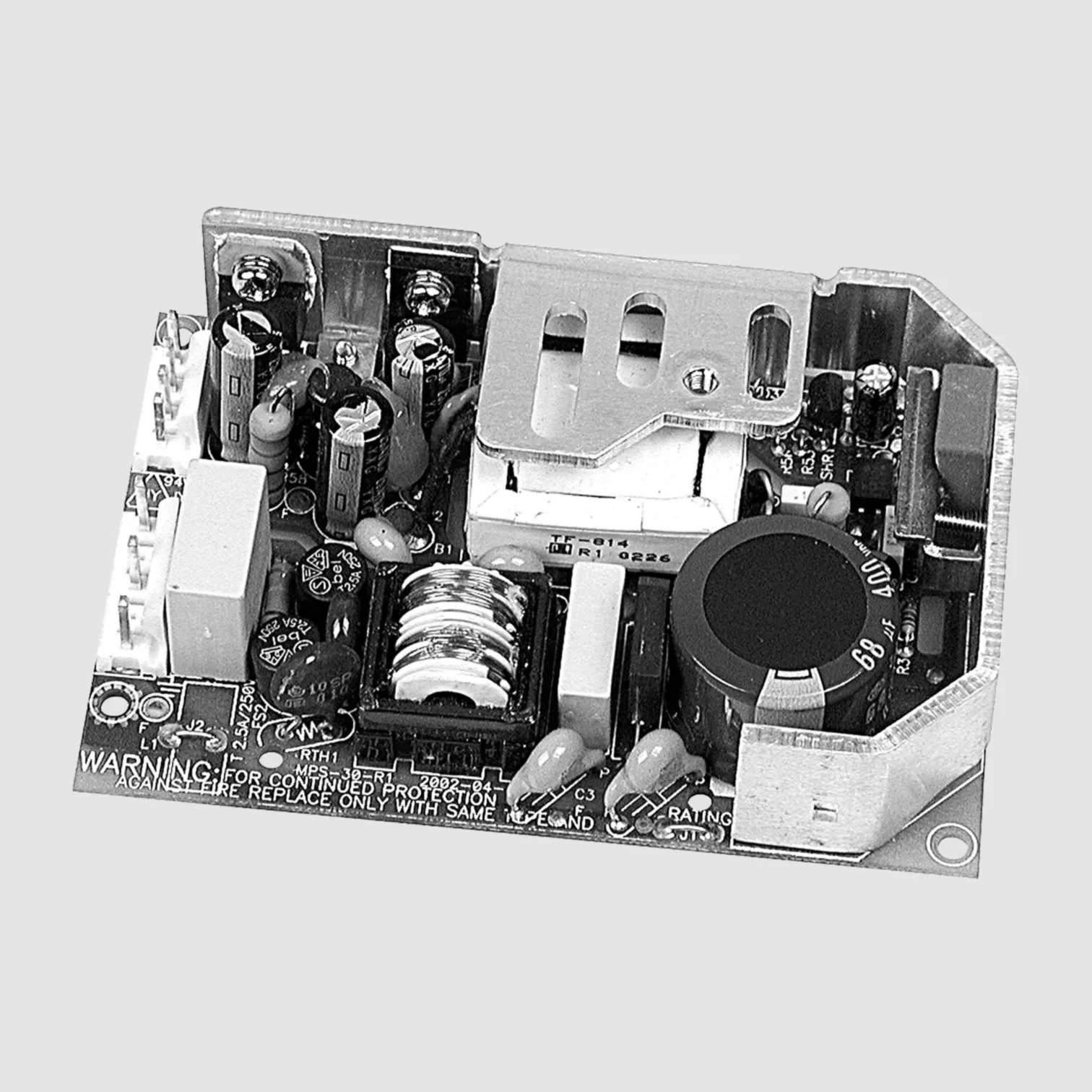

SPS Medical 30W 12V/2,5A
Varenummer:
90-056
Varekode: MPS-30-12
Vægt: 164 g
0 stk.
på lager
Gruppe:
L7511
MEANWELL Switching Power Supplies
Series: MPS-30
Open Frame, Medical, Single Output
Output: 25 to 30W
MEANWELL Switching Power Supplies
Series: MPS-30
Open Frame, Medical, Single Output
Output: 25 to 30W
| Features |
| Open frame Contact pin for nylon-crimp terminals Universal input Overload protection, pulsing hiccup shutdown, auto recovery Protections: short circuit/over load/over voltage EN60601-1 compliant |
 |
| Technical Specifications |
| |
| Input Voltage: | 88...264V AC (47...63Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 30A |
| Leakage Current, Max.: | 0,3mA |
| Over Load Protection: | >105% |
| Withstand Voltage | |
| I/P-O/P: | 4000V AC |
| I/P-FG: | 1500V AC |
| O/P-FG: | Short |
| Operating Temperature: | -10...+60C |
| Weight: | 160g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
| |
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| MPS-30-5 | 5 | 0...5 | 25 | 3 | 80 | 72 |
| MPS-30-12 | 12 | 0...2,5 | 30 | 3 | 120 | 75 |
| MPS-30-15 | 15 | 0...2 | 30 | 3 | 150 | 76 |
| MPS-30-24 | 24 | 0...1,2 | 28,8 | 3 | 240 | 77 |
| MPS-30-27 | 27 | 0...1,1 | 29,7 | 3 | 240 | 78 |
| MPS-30-48 | 48 | 0...0,6 | 28,8 | 2 | 240 | 78 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
| ||||||
| Note |
| You will find suitable crimp housings in product group L7611. |
|
| Labelling |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
Inkl. moms
Kr. 331,64
- v/5 – Kr. 265,31
- v/10 – Kr. 237,50
Produktfiler
