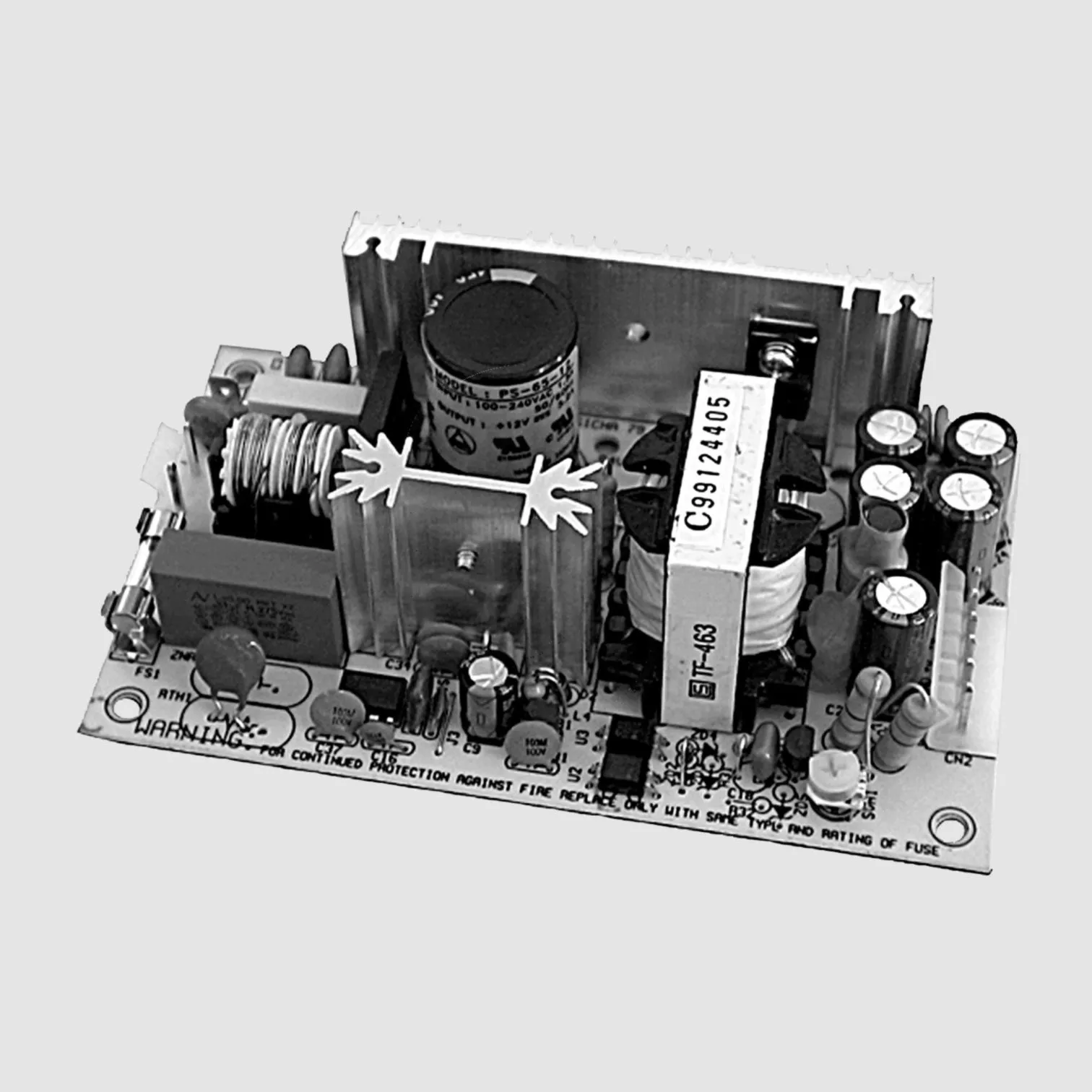

SPS Open Frame 65W 27V/2,4A

Varenummer: 90-028
Varekode: PS-65-27
Vægt: 245 g
0 stk. på lager
Kontakt os for at få oplyst leveringstid
Vis lignende produkter i kategorien "27V"
Gruppe: L7161
MEANWELL Switching Power Supplies
Series: PS-65
Open Frame, Single Output
Output: 40 to 65W
Features
Open frame
Contact pin for nylon-crimp terminals
Universal input
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
Technical Specifications
Input Voltage:
90...264V AC (47...440Hz)
127...370V DC
Input Inrush Current, Max.:
40A
Leakage Current, Max.:
0,75mA
Output Voltage Adjustment:
+10/-5%
Over Load Protection
3,3V:
51...75W
5V:
70...105W
7,5...48V:
73...105W
Withstand Voltage
I/P-O/P:
3000V AC
I/P-FG:
1500V AC
O/P-FG:
500V AC
Operating Temperature:
-10...+60C
Weight:
210g
I/P = Input, O/P = Output, FG = Frame Ground

Part Nr.
UA
IA
PA
DUA
URN
h
 [V]
[A]
[W]
[%]
[mVp-p]
[%]
PS-65-3.33,3
0...12
39,6
3
80
69
PS-65-55
0...12
60
3
100
76
PS-65-7.57,5
0..8
60
3
100
79
PS-65-1212
0...5,2
62,4
2
100
79
PS-65-13.513,5
0...4,7
63,5
2
100
79
PS-65-1515
0...4,2
63
2
100
79
PS-65-2424
0...2,7
64,8
2
100
80
PS-65-2727
0...2,4
64,8
2
100
80
PS-65-4848
0...1,35
64,8
2
100
80
UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency
Note
You will find suitable crimp housings in product group L7611.
Labelling

Terms of Delivery
Minimum order quantity: 1 PKU = 1 piece
Manufacturer

http://www.meanwell.com
Inkl. moms
Kr. 233,20
  • v/5 – Kr. 186,56
  • v/10 – Kr. 162,50
