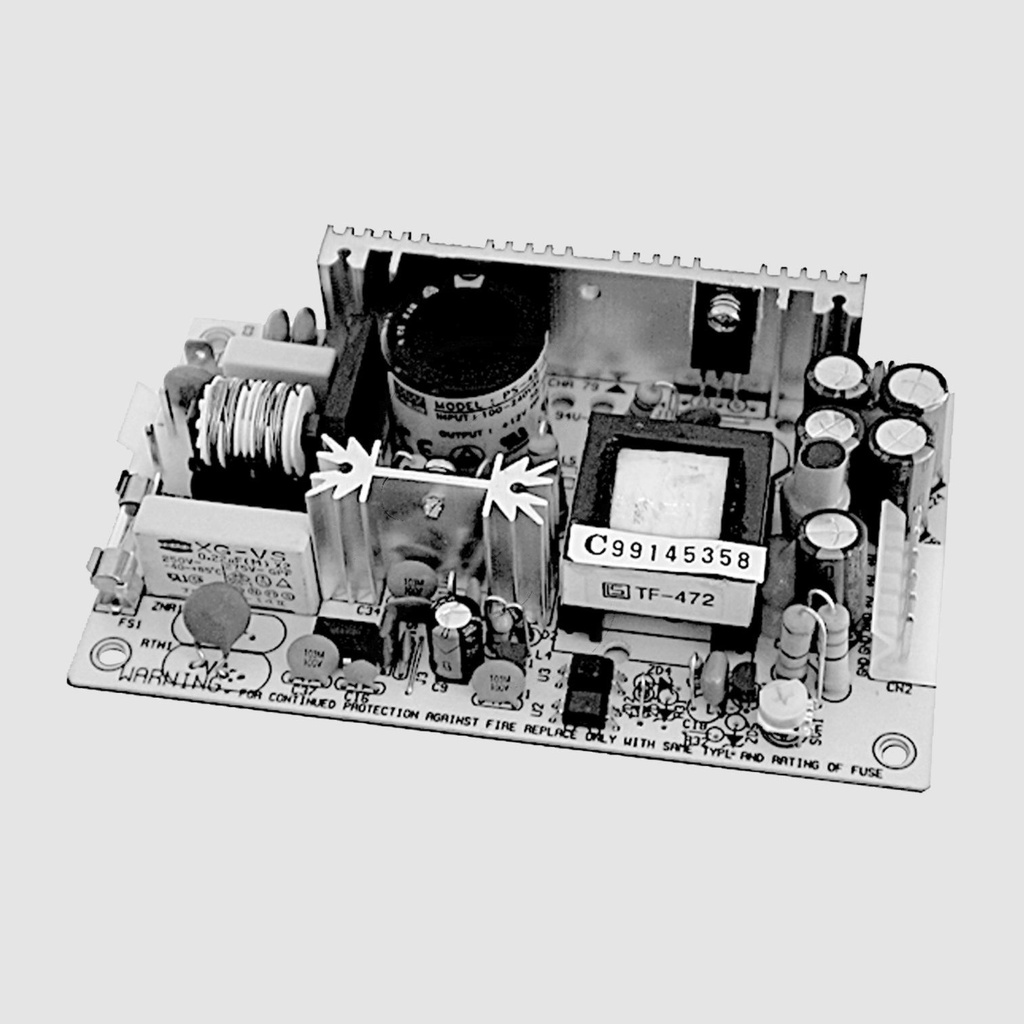

• Open frame
• Contact pin for nylon crimp terminals
• Input voltage range: 85...264V AC
• Overload protection, pulsing hiccup shutdown, reset: auto recovery
• Short-circuit proof
• 100% full load burn-in test
• Built-in EMI filter, low ripple noise
|
 |
|
|
|
Operating Temperature:
|
-10...+60°C
|
Storage Temperature:
|
-20...+85°C
|
Overload Protection:
|
53...75W / 3,3V: 36...55W
|
Overvoltage Protection:
|
115...135%
|
Insulation Voltage
|
I/P-O/P:
|
3000V AC
|
I/P-FG:
|
1500V AC
|
O/P-FG:
|
500V AC
|
Insulation Resistance
|
(I/P-O/P, I/P-FG, O/P-FG: 500V DC):
|
100MW
|
Hold Up Time (230V):
|
20ms
|
Weight:
|
230g
|
I/P = Input, O/P = Output, FG = Frame Ground
|
|
|
|
|
Input Voltage:
|
85...264V AC (47...440Hz)
|
120...370V DC
|
AC Current (230V):
|
0,7A
|
In-Rush Current, Cold Start (230V):
|
40A
|
|
|
|
|
|
|
|
|
|
|
Part Nr.
|
UA
|
DUA
|
Uadj
|
IAN
|
IA
|
PA
|
URW
|
h
|
| |
[V]
|
[%]
|
[%]
|
[A]
|
[A]
|
[W]
|
[mVp-p]
|
[%]
|
| PS-45-3,3 |
3,3
|
±3
|
+10/-5
|
8
|
0...8
|
26,4
|
80
|
69
|
| PS-45-5 |
5
|
±3
|
+10/-5
|
8
|
0...8
|
40
|
100
|
74
|
| PS-45-7,5 |
7,5
|
±3
|
+10/-5
|
5,4
|
0...5,4
|
40,5
|
100
|
75
|
| PS-45-12 |
12
|
±2
|
+10/-5
|
3,7
|
0...3,7
|
44,4
|
100
|
76
|
| PS-45-13,5 |
13,5
|
±2
|
+10/-5
|
3,3
|
0...3,3
|
44,6
|
100
|
77
|
| PS-45-15 |
15
|
±2
|
+10/-5
|
3
|
0...3
|
45
|
100
|
77
|
| PS-45-24 |
24
|
±2
|
+10/-5
|
1,9
|
0...1,9
|
45,6
|
100
|
78
|
| PS-45-27 |
27
|
±2
|
+10/-5
|
1,7
|
0...1,7
|
45,9
|
100
|
78
|
| PS-45-48 |
48
|
±2
|
+10/-5
|
1
|
0...1
|
48
|
100
|
78
|
UA = Output Voltage, DUA = Output Voltage Tolerance, Uadj = DC Voltage Adj., IAN = Output Rated Current, IA = Output Current Range, PA = DC Output Power, URW = Ripple & Noise, h = Efficiency
|
|
|
|
|
CN1: Molex 5277-02
|
Pin 1,2:
|
AC Input (L, N)
|
CN2: Molex 5273-06
|
Pin 1,2,3:
|
DC Output +U
|
Pin 4,5,6:
|
DC Output -U
|
|
|
