Button Cell Holder 1xCR2430
Varenummer:
89-703
Varekode: SN2430
Vægt: 3 g
13 stk.
på lager
| Application |
| • Prevents short-circuiting during soldering • Fast battery change • For direct soldering on the PCB • SN2032 for button cells with 20mmØ (e.g. CR2032) • SN2430 for button cells with 24 to 25mmØ (e.g. CR2430) |
 |
| Construction |
| |
| Holder: | Thermoplastic PBT, 30% Glass Fiber |
| Spring | |
| SN2032: | Spring Steel, 0,5mm, Tin-plated |
| SN2430: | Phosphor-Bronze, 0,6mm, Tin-plated |
| |

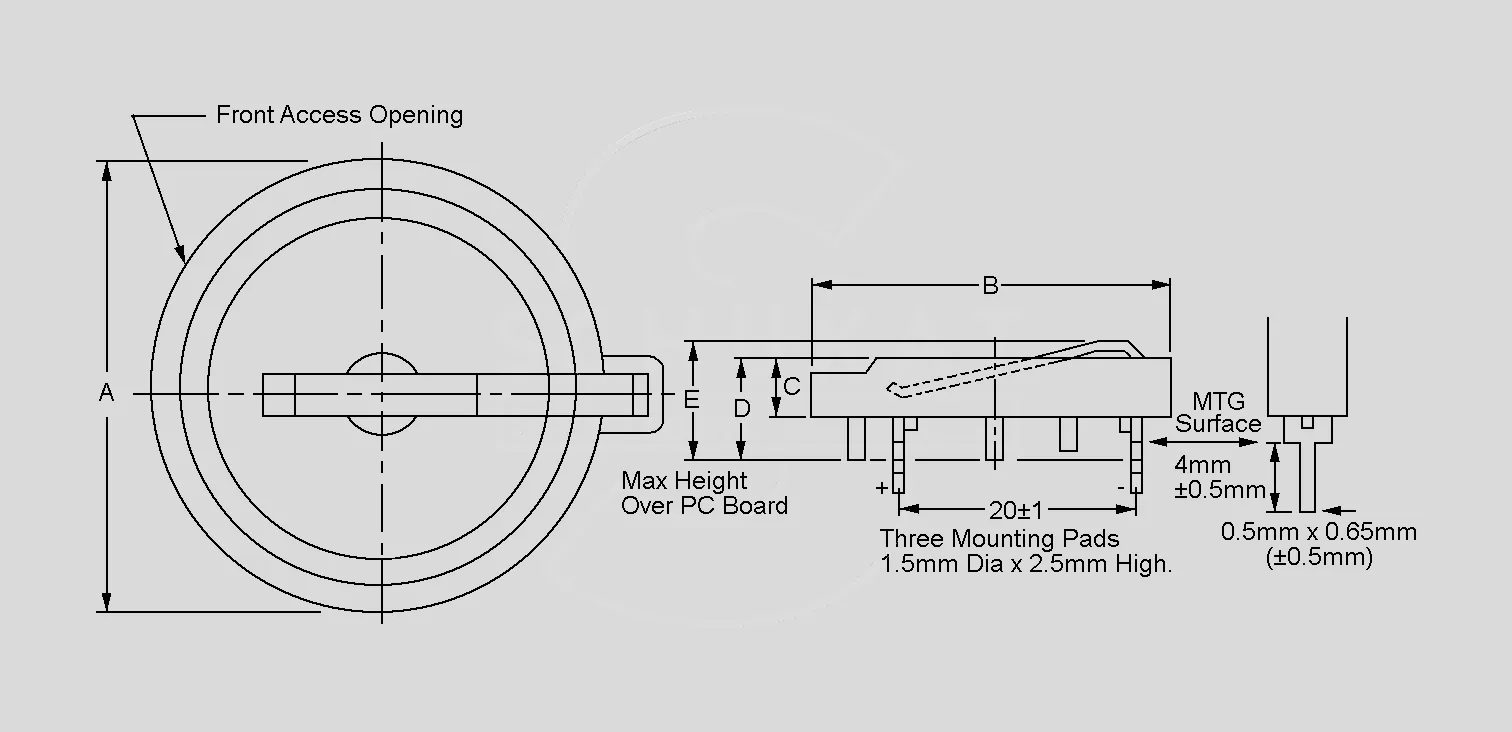

| Dimensions |
| Part Nr. | A | B | C | D | E |
| [mm] | [mm] | [mm] | [mm] | [mm] | |
| SN2032 | 22,6 | 27,3 | 5,1 | 7,0 | 7,4 |
| SN2430 | 27,7 | 30,4 | 4,7 | 7,2 | 8,3 |
| |||||
| Note |
| • You will find button cells in product groups S1272 and S1273. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| Various |
|
