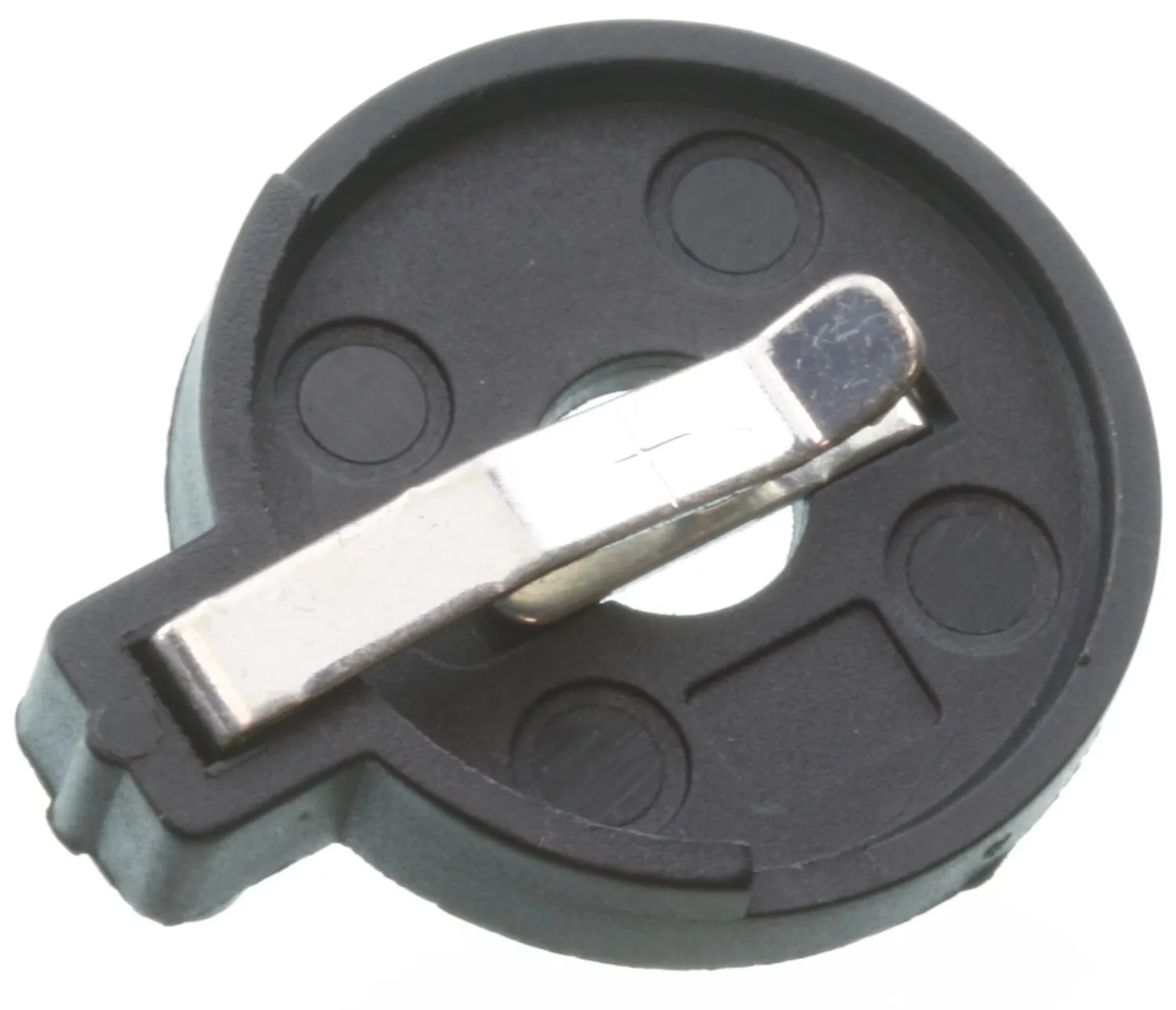

Knapcelle Holder 1xCR2032
Varenummer:
89-702
Varekode: SN2032
Vægt: 2 g
97 stk.
på lager
Gruppe: S6515
Button Cell Holders
For CR2032 and CR2430
Series: SN2_
| Application |
| • Prevents short-circuiting during soldering • Fast battery change • For direct soldering on the PCB • SN2032 for button cells with 20mmØ (e.g. CR2032) • SN2430 for button cells with 24 to 25mmØ (e.g. CR2430) |
 |
| Construction |
|
|||||||||
| Holder: | Thermoplastic PBT, 30% Glass Fiber | Spring | SN2032: | Spring Steel, 0,5mm, Tin-plated | SN2430: | Phosphor-Bronze, 0,6mm, Tin-plated | |||
|
|||||||||
| Dimensions |
| Part Nr. | A | B | C | D | E | [mm] | [mm] | [mm] | [mm] | [mm] | SN2032 | 22,6 | 27,3 | 5,1 | 7,0 | 7,4 | SN2430 | 27,7 | 30,4 | 4,7 | 7,2 | 8,3 | |||||||
|
|||||||||||||||||||||||||||||
| Note |
| • You will find button cells in product groups S1272 and S1273. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| Various |
|
