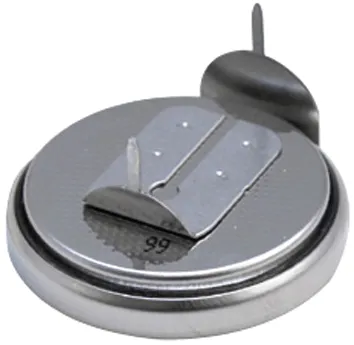

CR2450 24,0x5,0mm. vandret 3V 560mAh
Varenummer:
89-543
Varekode: CR2450PCB
Vægt: 9 g
8 stk.
på lager
Gruppe:
S1275
VARTA Lithium Button Cells
With Solder Pins
Rated Voltage: 3V
Series: CR
VARTA Lithium Button Cells
With Solder Pins
Rated Voltage: 3V
Series: CR
| Technical Specifications |
| Part Nr. | IEC | UN | Ctyp. |
| [V] | [mAh] | ||
| CR2032_ | CR2032 | 3 | 230 |
| CR2430_ | CR2430 | 3 | 280 |
| CR2450PCB | CR2450 | 3 | 560 |
| CR2450PCB-3 | CR2450 | 3 | 560 |
| UN = Rated Voltage, Ctyp. = Capacitance, Typ., 20C, End Voltage 2,0V | |||
 | |||
| Dimensions |
| |
| Material Strength of Solder Pin: | 0,15mm |
| |
| Part Nr. | A | D | E | F | G | H | K |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| CR2032SLF | 21,5 | 1 | 4,2 | 20,5 | - | 1 | - |
| CR2032PCB | 20,0 | 11 | 3,2 | 17,8 | 7,5 | 10 | 11,4 |
| CR2430SLF | 25,8 | 1 | 4,0 | 25,0 | - | 1 | - |
| CR2430PCB | 24,5 | 11 | 3,0 | 17,8 | 7,5 | 10 | 11,4 |
| CR2450PCB | 24,7 | 12,7 | 5,0 | 17,8 | 7,5 | 10 | 11,4 |
| CR2450PCB-3 | 24,7 | 13,2 | 5,0 | 17,8 | 7,5 | 10 | 11,4 |
| C = 10mm | |||||||
| |||||||
| Note |
| Prices exclude battery disposal fee, in accordance with BattG for deliveries within Germany to customers without ownership rights contract (see for price list). Please note the information concerning limited shipping of dangerous goods. Batteries are outside the scope of the RoHS. However, the soldering pins meet RoHS specifications. |
|
| Recycling |
| All used batteries or cells must be given to an environmentally-friendly waste bank for disposal in accordance with local regulations. Do not dispose of used batteries in domestic waste!   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.varta-microbattery.com |
|
Inkl. moms
Kr. 46,25
- v/10 – Kr. 31,25
- v/25 – Kr. 25,00
CR2450 24,0x5,0mm. vandret 3V 560mAh
89-543
/ CR2450PCB
8 stk.
på lager
Gruppe:
S1275
VARTA Lithium Button Cells
With Solder Pins
Rated Voltage: 3V
Series: CR
VARTA Lithium Button Cells
With Solder Pins
Rated Voltage: 3V
Series: CR
| Technical Specifications |
| Part Nr. | IEC | UN | Ctyp. |
| [V] | [mAh] | ||
| CR2032_ | CR2032 | 3 | 230 |
| CR2430_ | CR2430 | 3 | 280 |
| CR2450PCB | CR2450 | 3 | 560 |
| CR2450PCB-3 | CR2450 | 3 | 560 |
| UN = Rated Voltage, Ctyp. = Capacitance, Typ., 20C, End Voltage 2,0V | |||
| |||
| Dimensions |
| |
| Material Strength of Solder Pin: | 0,15mm |
| |
| Part Nr. | A | D | E | F | G | H | K |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| CR2032SLF | 21,5 | 1 | 4,2 | 20,5 | - | 1 | - |
| CR2032PCB | 20,0 | 11 | 3,2 | 17,8 | 7,5 | 10 | 11,4 |
| CR2430SLF | 25,8 | 1 | 4,0 | 25,0 | - | 1 | - |
| CR2430PCB | 24,5 | 11 | 3,0 | 17,8 | 7,5 | 10 | 11,4 |
| CR2450PCB | 24,7 | 12,7 | 5,0 | 17,8 | 7,5 | 10 | 11,4 |
| CR2450PCB-3 | 24,7 | 13,2 | 5,0 | 17,8 | 7,5 | 10 | 11,4 |
| C = 10mm | |||||||
| |||||||
| Note |
| Prices exclude battery disposal fee, in accordance with BattG for deliveries within Germany to customers without ownership rights contract (see for price list). Please note the information concerning limited shipping of dangerous goods. Batteries are outside the scope of the RoHS. However, the soldering pins meet RoHS specifications. |
|
| Recycling |
| All used batteries or cells must be given to an environmentally-friendly waste bank for disposal in accordance with local regulations. Do not dispose of used batteries in domestic waste! |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| |
| http://www.varta-microbattery.com |
|
