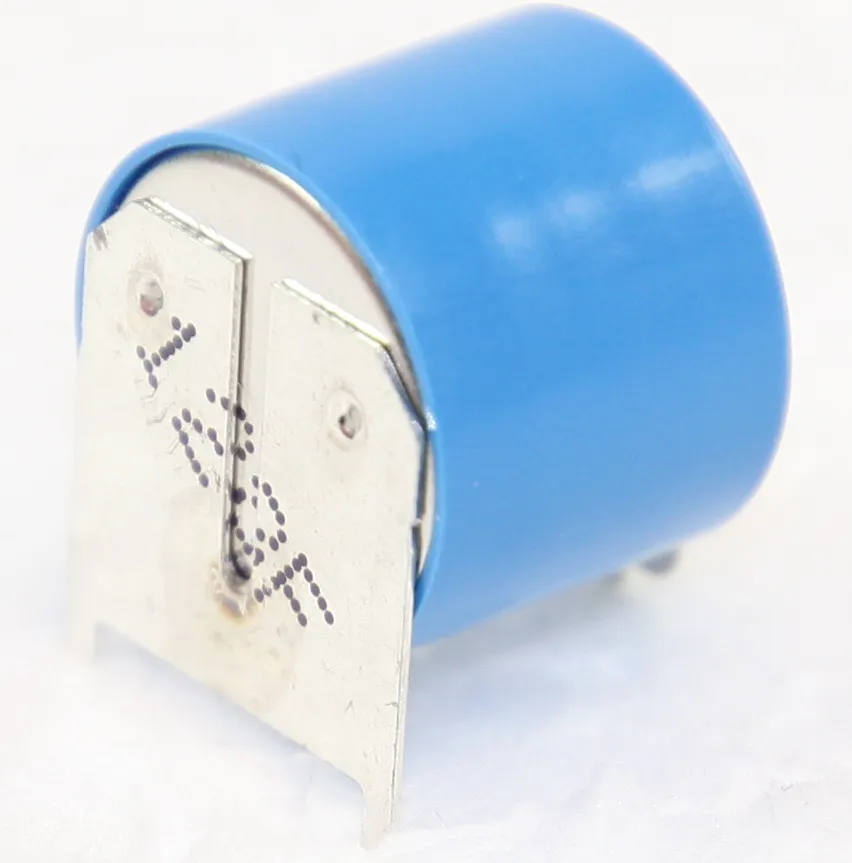

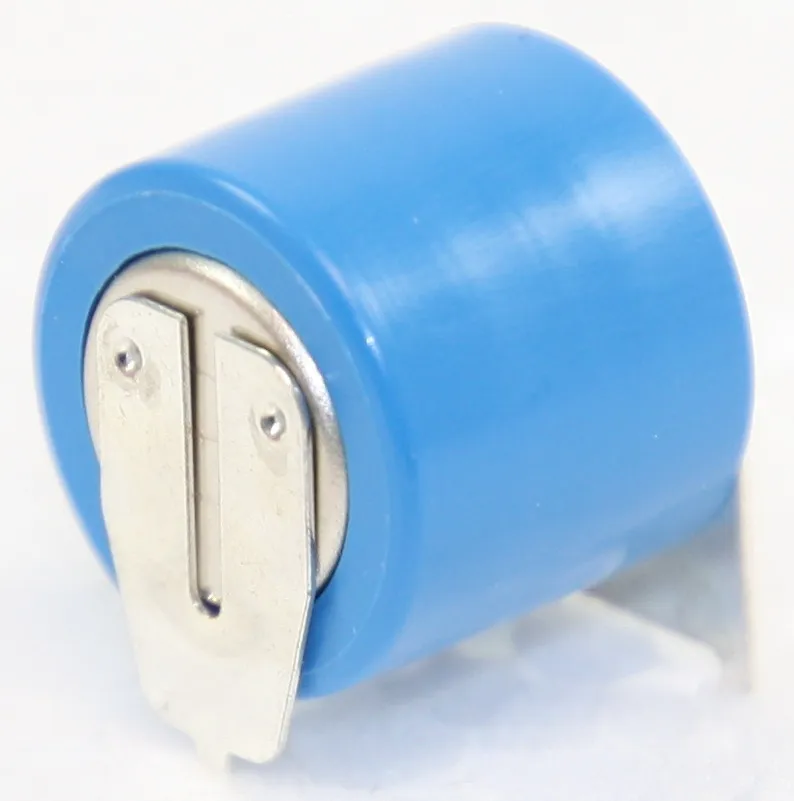

1/3N 13,0x11,5mm. 3V 170mAh. med printben
Varenummer:
89-524
Varekode: CR1/3N-SLF
Vægt: 7 g
10 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 285 stk. kan skaffes lørdag d. 31/10
Gruppe:
S1165
VARTA, PANASONIC Lithium Batteries
With Solder Pins
Rated Voltage: 3V
Series: CR1, BR2
| CR1/3N-SLF |
| With Double PCB Soldering Tags |
 |
| Application |
| As a "standby" battery to supply electronic units in the event of a loss of mains-dependent direct voltage. |
|
| Technical Specifications |
|
|||||||||||||||
| Size: | 1/3N | System: | Li/Mn | Rated Voltage: | 3,0V | Capacitance, Typ. (20°C, End Voltage 2,0V): | 170mAh | Discharge Over: | 5,6kW | Operating Temperature: | -30...+65°C | Storage Temperature: | -55...+70°C | ||
|
|||||||||||||||
| Note |
| • Prices exclude battery disposal fee, in accordance with BattG for deliveries within Germany to customers without ownership rights contract (see for price list). • Please note the information concerning limited shipping of dangerous goods. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.varta-microbattery.com |
|
| BR2/3A3V |
| With Welded Soldering Pins |
|
| Features |
| • Particularly suitable for standby power supplies requiring absolute reliability • High voltage stability • Corrosion-free, non-poisonous and leak-proof |
|
| Technical Specifications |
|
|||||||||||||||||||||||
| Size: | 2/3A | System: | (CF)n/Li | Cell Rated Voltage: | 3V | Rated Capacitance | (2,5mA, Residual Voltage 1,8V, 20°C): | 1200mAh | Rated Current: | 2,5mA | Continuous Current, Max.: | 250mA | Pulsed Current, Max.: | 1000mA | Energy Density: | 440...480Wh/l | Storability: | Approx. 10 Years | Weight: | 13,5g | |||
|
|||||||||||||||||||||||
| Note |
| • Please consider the temperature dependence of the leak currents for the load to determine the storage time and the battery capacity. Make sure that buffer diodes are used with a leak current • Prices exclude battery disposal fee, in accordance with BattV for deliveries within Germany to customers without ownership rights contract (see for price list). • Please note the information concerning limited shipping of dangerous goods. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.industrial.panasonic.com/eu |
|
| CR1/2AA-CD, CR1/2AA-SLF |
| With Welded Solder Pins With Double PCB Soldering Tags |
|
| Application |
| As a "standby" battery to supply electronic storage units in the event of the loss of mains-dependent direct voltage. |
|
| Technical Specifications |
|
|||||||||||||||
| Size: | 1/2AA | System: | Li/MnO2 | Rated Voltage: | 3,0V | Capacitance, Typ. (20°C, End Point Voltage 2,0V): | 950mAh | Discharge Resistance: | 5,6kW | Operating Temperature: | -30...+75°C | Storage Temperature: | -55...+75°C | ||
|
|||||||||||||||
| Note |
| • Prices exclude battery disposal fee, in accordance with BattV for deliveries within Germany to customers without ownership rights contract (see for price list). • Please note the information concerning limited shipping of dangerous goods. |
|
| Recycling |
| All used batteries or cells must be given to an environmentally-friendly waste bank for disposal in accordance with local regulations. Do not dispose of used batteries in domestic waste!   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| |
| http://www.varta-microbattery.com |
|
