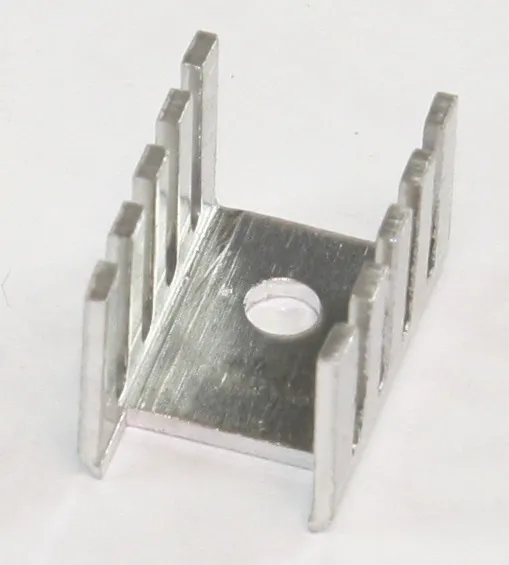

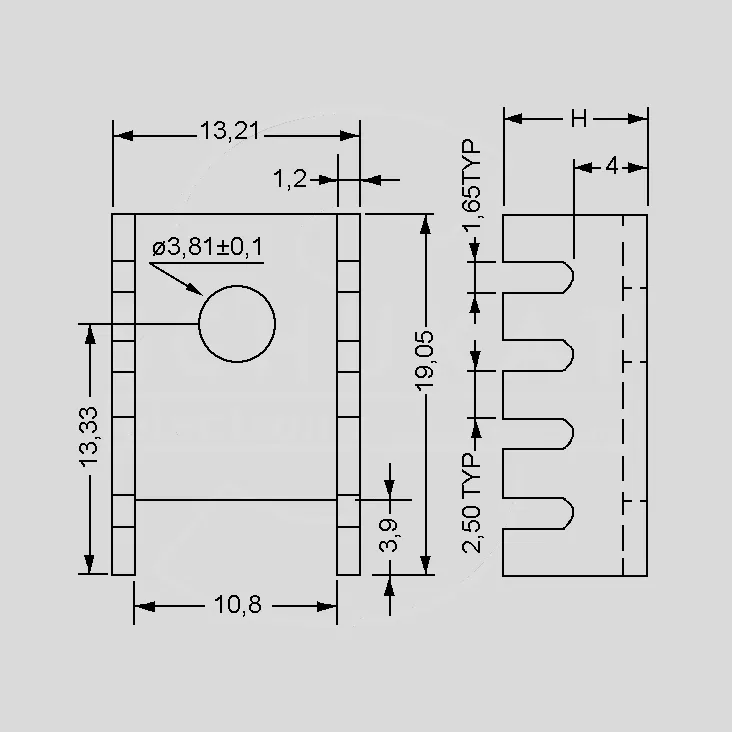

Køleplade Alu Til TO-220 13,3x19,1x12,7mm
Varenummer:
89-260
Varekode: FK301
Vægt: 1 g
39 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 11800 stk. kan skaffes lørdag d. 31/10
Gruppe: G9211
Finger-shaped Heatsinks
Series: FK3
U-Form for TO220
Surface: Black Anodized, Natural Aluminium
| Features |
| • Suitable for TO220 housing • FK_A: U-formed bend and finger-shaped aluminium heatsink design, 3,9mm laminated bearing surface • FK_PA: with solderable pins for vertical mounting on the PCB, non-laminated bearing surface |
 |
| Selection Table |
| Part Nr. | Thermal Resistance | H | Surface | [K/W] | [mm] | FK301 | 27 | 12,7 | Alu Natural | FK301A | 21 | 12,7 | Black Anodized | FK302 | 28 | 9,53 | Alu Natural | FK302A | 22 | 9,53 | Black Anodized | FK303 | 31 | 6,35 | Alu Natural | FK301PA | 24 | 6,35 | Black Anodized | FK302PA | 22 | 9,53 | Black Anodized | FK303PA | 21 | 12,7 | Black Anodized | ||||||
| 1) With Soldering Pin | |||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
| Note |
| You will find heat conductor pastes for optimal heat transfer in our red "Components & Devices" catalogue at product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces FK301PA, FK302PA, FK303PA: 1 PKU = 50 pieces |
|
| Manufacturer |
| Various |
|
