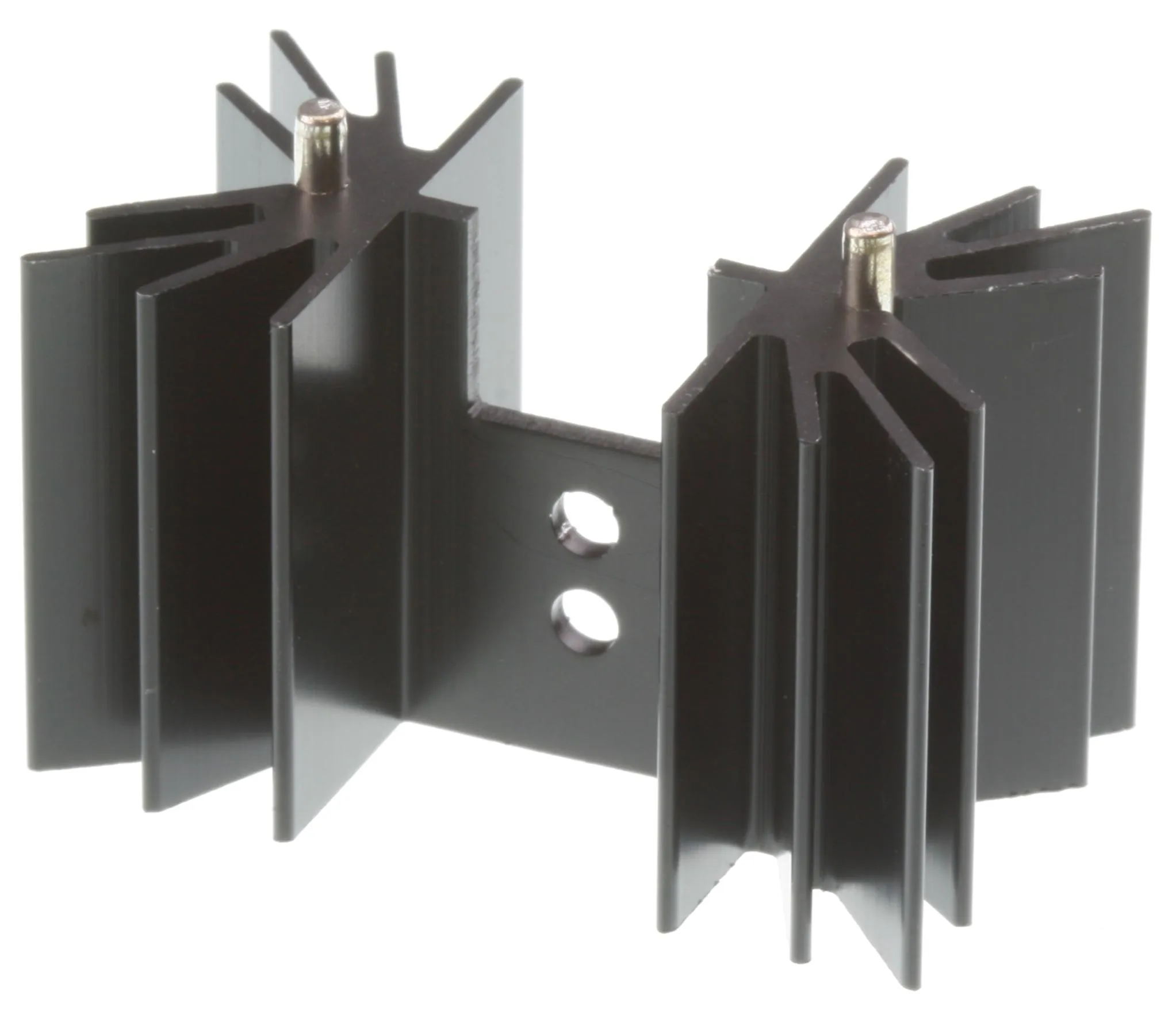

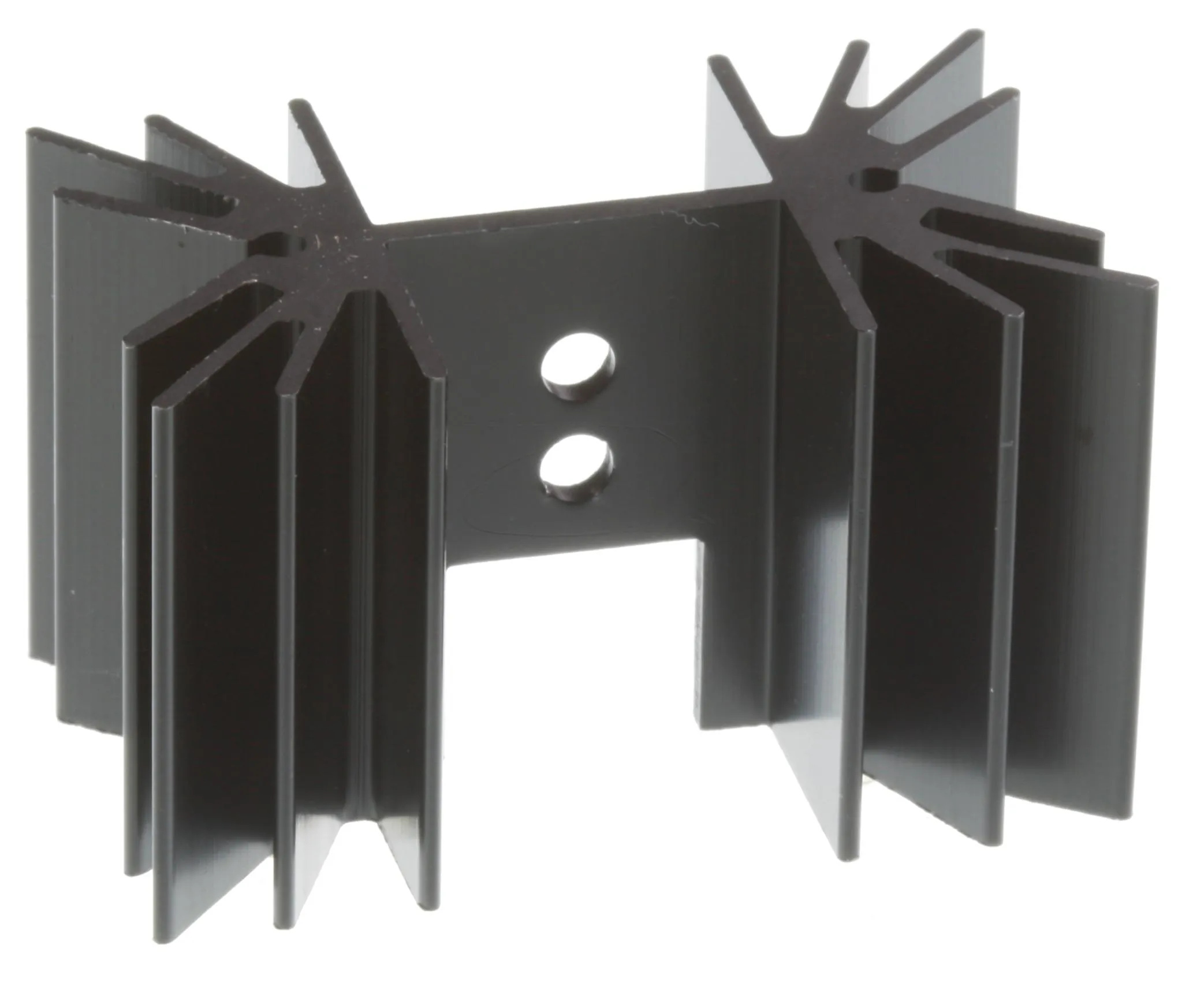

Køleplade Til TO220/SOT32/TOP3.25,4/41,6mm
Varenummer:
89-240
Varekode: SK42-25S
Vægt: 23 g
5 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 1708 stk. kan skaffes lørdag d. 31/10
Gruppe: G9524
Extruded Heatsinks
Series: SK42
With Solderable Fixing Pins, for TO220, SOT32, TOP3
Profile Width: 42mm
Surface: Black Anodized
| Features |
| • For vertical mounting • Mounting of heatsink by solderable fixing pins Ø 2,3mm • Black anodized finish • Semiconductor screw assembly with M3 screws (drilling without fixing lugs) or with a spring mounting clip for transistors THF42 (must be ordered separately) • Suitable for TO220-, SOT32- and TOP3 housing |
 |
| Technical Specifications |
| Part Nr. | Thermal Resistance | Length L | [K/W] | [mm] | SK42-25S | 6,5 | 25,4 | SK42-38S | 5,0 | 38,1 | SK42-51S | 4,0 | 50,8 | ||||
|
|||||||||||||||||
| THF42 |
| Transistor Spring Mounting Clip |
|
| Features |
| Clip to mount semiconductors to heatsinks SK42-_ |
|
| Note |
| You will find heat conductor pastes for optimal heat transfer in our red "Components & Devices" catalogue at product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| Various |
|
