Køleplade Alu Sort Til TO220/SOT32/TOP3 38,1mm
Varenummer:
89-230
Varekode: SK104-38STS
Vægt: 17 g
7 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 2350 stk. kan skaffes lørdag d. 31/10
Gruppe: G9522
FISCHER Extruded Heatsinks
Series: SK104
With Solderable Fixing Pins, for TO220, SOT32, TOP3
Profile Width: 35mm
Surface: Black Anodized
| Features |
| • Vertical mounting • Mounting of heatsink by solderable fixing pins Ø 2,3mm • Black anodized finish • Suitable for TO220-, SOT32- and TOP3 housing • SK104-_STS: Mount semiconductor using M3 screws (drilling without fixing lugs) or by transistor mounting clip THF104 (Skal bestilles særskilt) |
 |
| Technical Specifications |

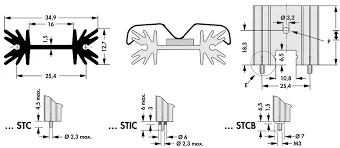

| Part Nr. | Thermal Resistance | Length L | [K/W] | [mm] | SK104-25_ | 14,0 | 25,4 | SK104-38_ | 11,0 | 38,1 | SK104-51_ | 9,0 | 50,8 | ||||
|
|||||||||||||||||
| THF104 |
| Transistor Clips |
|
| Features |
| Clip to mount semiconductors to heatsinks SK104-_. |
|
| Note |
| You will find heat conductor pastes for optimal heat transfer in our red "Components & Devices" catalogue at product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.fischerelektronik.de |
|
Køleplade Alu Sort Til TO220/SOT32/TOP3 38,1mm
89-230
/ SK104-38STS
7 stk.
på lager
Bestil nu for afsendelse i morgen
Ved bestilling nu, får vi dem hjem lørdag d. 31/10
Gruppe: G9522
FISCHER Extruded Heatsinks
Series: SK104
With Solderable Fixing Pins, for TO220, SOT32, TOP3
Profile Width: 35mm
Surface: Black Anodized
| Features |
| • Vertical mounting • Mounting of heatsink by solderable fixing pins Ø 2,3mm • Black anodized finish • Suitable for TO220-, SOT32- and TOP3 housing • SK104-_STS: Mount semiconductor using M3 screws (drilling without fixing lugs) or by transistor mounting clip THF104 (Skal bestilles særskilt) |
|
| Technical Specifications |
| Part Nr. | Thermal Resistance | Length L | [K/W] | [mm] | SK104-25_ | 14,0 | 25,4 | SK104-38_ | 11,0 | 38,1 | SK104-51_ | 9,0 | 50,8 | ||||
|
|||||||||||||||||
| THF104 |
| Transistor Clips |
|
| Features |
| Clip to mount semiconductors to heatsinks SK104-_. |
|
| Note |
| You will find heat conductor pastes for optimal heat transfer in our red "Components & Devices" catalogue at product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
|
| http://www.fischerelektronik.de |
|
