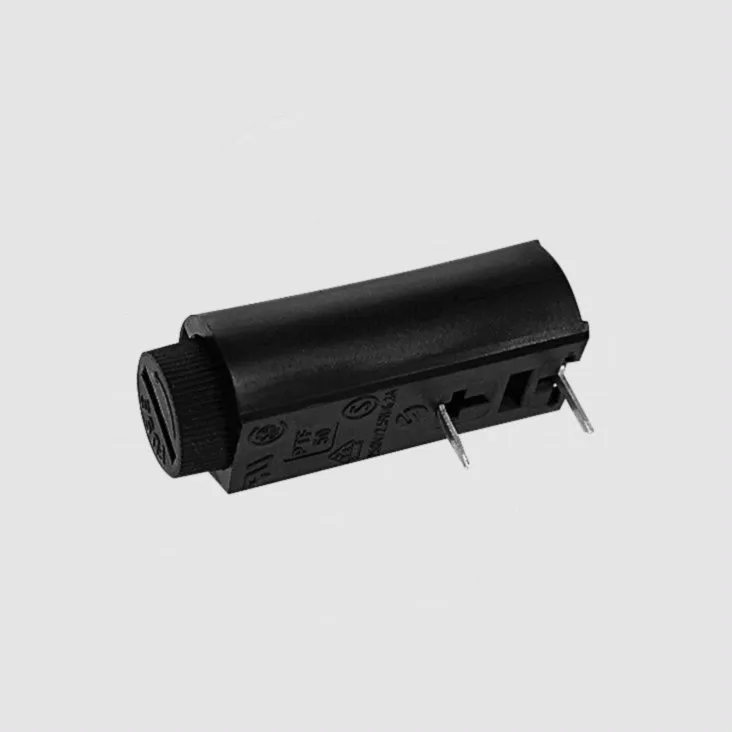

PC Fuse Holder VDE 5x20 Horizontal
Varenummer:
89-184
Varekode: PTF/50
Vægt: 5 g
30 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 1780 stk. kan skaffes lørdag d. 31/10
Gruppe:
E1829
STELVIO KONTEK Fuse Holders
Series: PTF
For Microfuses 5x20mm
Terminals: PCB Pins
Rated Current: Up to 6,3A
E1829
STELVIO KONTEK Fuse Holders
Series: PTF
For Microfuses 5x20mm
Terminals: PCB Pins
Rated Current: Up to 6,3A
| Features |
| Fuse holders made of fiber-enforced polyester, self-extinguishing (UL94V-O) Bayonet cover Brass metal parts with nickel layer, tin-plated |
 |
| Technical Specifications |
| |
| Operating Voltage, Max.: | 250V AC |
| Rated Current: | 6,3A |
| Contact Resistance: | 5mW |
| Insulation Resistance: | >10MW |
| Dielectric Strength: | >3000V AC/60s |
| PCB Mounting Hole: | 1,3mm |
| |
| Note |
| You will find suitable fuse links starting at product group E1421. |
|
| Norms |
| IEC 127-6 |
|
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.stelvio-kontek.com |
|
PC Fuse Holder VDE 5x20 Horizontal
89-184
/ PTF/50
30 stk.
på lager
Bestil nu for afsendelse i morgen
Ved bestilling nu, får vi dem hjem lørdag d. 31/10
Gruppe:
E1829
STELVIO KONTEK Fuse Holders
Series: PTF
For Microfuses 5x20mm
Terminals: PCB Pins
Rated Current: Up to 6,3A
E1829
STELVIO KONTEK Fuse Holders
Series: PTF
For Microfuses 5x20mm
Terminals: PCB Pins
Rated Current: Up to 6,3A
| Features |
| Fuse holders made of fiber-enforced polyester, self-extinguishing (UL94V-O) Bayonet cover Brass metal parts with nickel layer, tin-plated |
|
| Technical Specifications |
| |
| Operating Voltage, Max.: | 250V AC |
| Rated Current: | 6,3A |
| Contact Resistance: | 5mW |
| Insulation Resistance: | >10MW |
| Dielectric Strength: | >3000V AC/60s |
| PCB Mounting Hole: | 1,3mm |
| |
| Note |
| You will find suitable fuse links starting at product group E1421. |
|
| Norms |
| IEC 127-6 |
|
| Approvals |
| |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| |
| http://www.stelvio-kontek.com |
|
