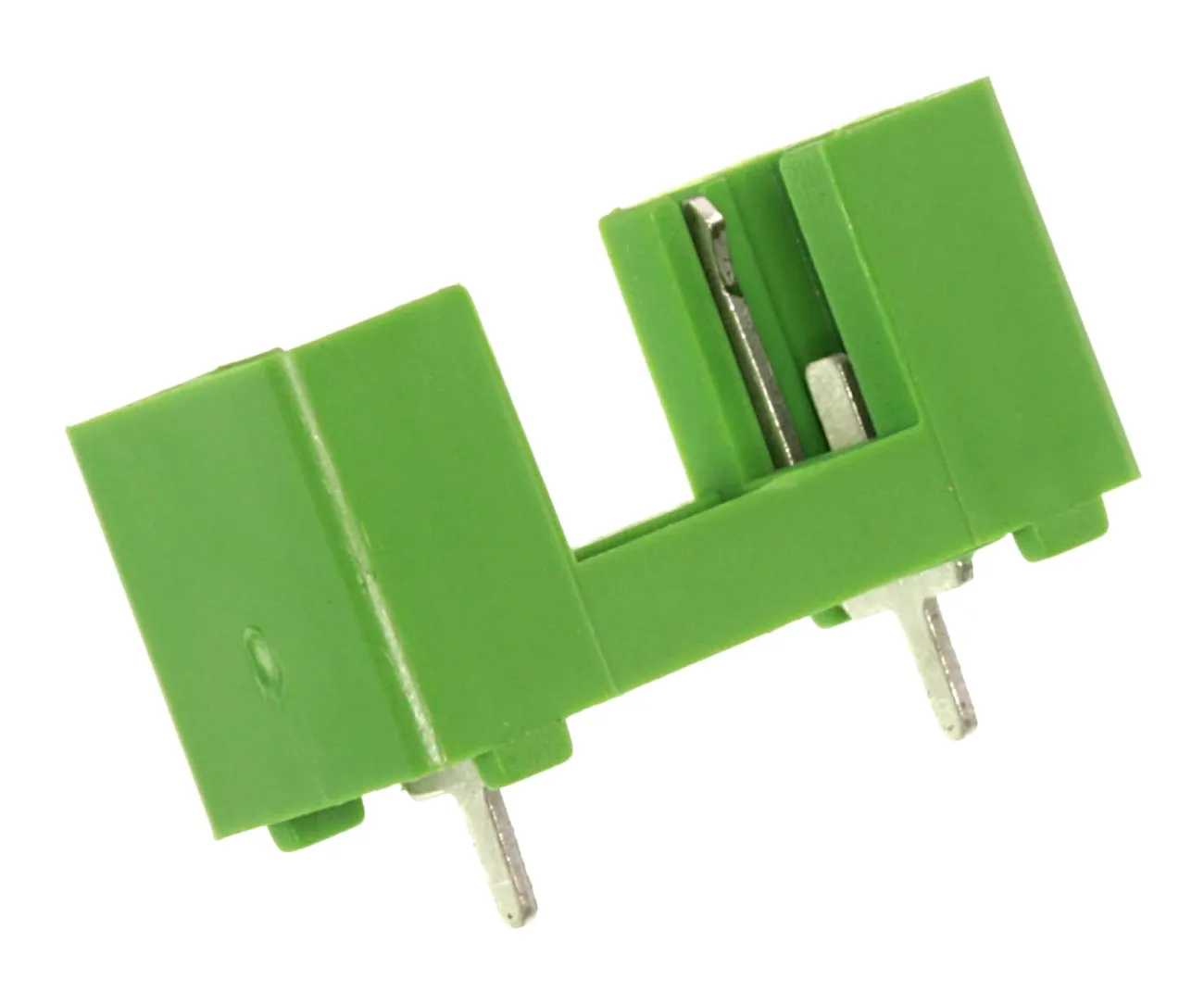

Fuse Holder, Insulated 5x20 P15,0 UDEN cover!
Varenummer:
89-179
Varekode: PTF/76
Vægt: 1 g
81 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 1350 stk. kan skaffes lørdag d. 31/10
Gruppe: E1825
STELVIO KONTEK Insulated Clip Fuse Holders
Series: PTF
For Microfuses 5x20mm
Terminals: PCB Pins
Rated Current: Up to 6,3A
| Features |
| • Clip fuse holder consisting of a soldered-holder with insulated brass springs and an upper section with a transparent window • For glass tube micro fuses 5x20mm to 6,3A/250V • Made of Polyamide-68, self-extinguishing (UL94V-0) • Metal parts made from brass with nickel layer, tin-plated |
 |
| Technical Specifications |
|
|||||||||||||||
| Operating Voltage, Max.: | 250V AC | Rated Current: | 6,3A | Contact Resistance: | 5mW | Insulation Resistance: | >102MW | Dielectric Strength: | >3000V AC/60s | PCB Mounting Hole: | Ø1,5mm | Colour: | Green | ||
|
|||||||||||||||
| Note |
| • You will find suitable fuse links starting at product group E1421. |
|
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Delivery contents: top and bottom part |
|
| Manufacturer |
 |
| http://www.stelvio-kontek.com |
|
Inkl. moms
Kr. 4,01
- v/10 – Kr. 3,21
- v/25 – Kr. 2,40
- v/100 – Kr. 1,60
- v/1000 – Kr. 1,20
