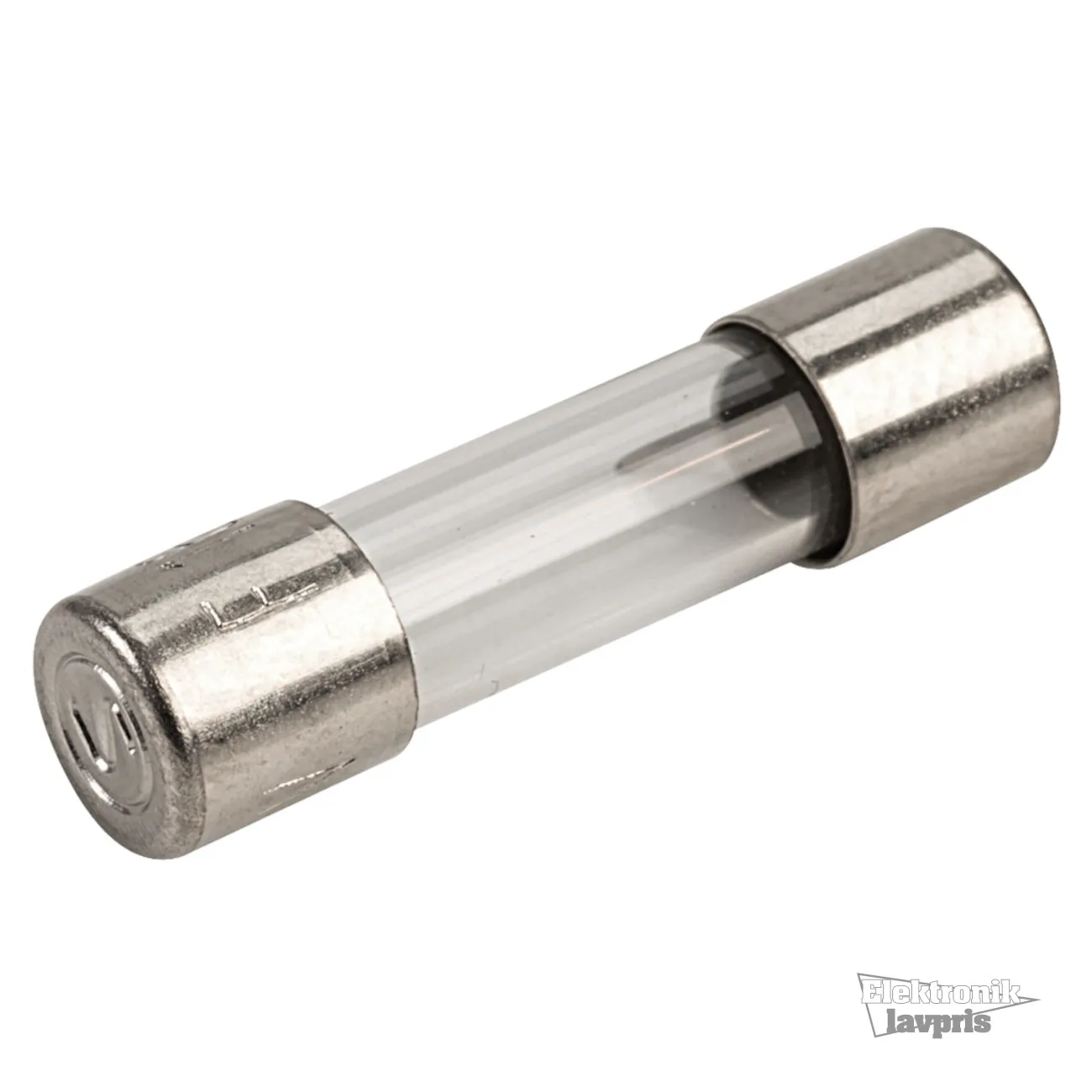

Fuse 6,3x32 Time-lag 5,0A
Varenummer:
89-046
Varekode: FSBT05
Vægt: 2 g
86 stk.
på lager
Gruppe:
E1471
SIBA Fuse Links
Series: 189100
IEC60127
Characteristic: Time-Lag
Rated Voltage: 250V
Housing: 6,3x32mm
SIBA Fuse Links
Series: 189100
IEC60127
Characteristic: Time-Lag
Rated Voltage: 250V
Housing: 6,3x32mm
| Features |
| Transparent glass tube Nickel plated, brass end caps |
 |
| Technical Specifications |
| |
| Rated Voltage: | 250V |
| Fusing Time Limits | |
| 50mA...20A | |
| 2xIN: | 800ms...30s |
| 2,75xIN: | 200ms...6s |
| 4xIN: | 80ms...2s |
| 10xIN: | 15ms...300ms |
| |
| Part Nr. | Rated | Drop | RBC | Melting |
| Current | VoltageMax. | Integral | ||
| [A] | [mV] | [A AC] | [A2s] | |
| FSBT00.2 | 0,2 | 1000 | 35 | 0,484 |
| FSBT00.4 | 0,4 | 300 | 35 | 0,6 |
| FSBT00.5 | 0,5 | 300 | 35 | 0,9 |
| FSBT01 | 1,0 | 250 | 35 | 4 |
| FSBT01.25 | 1,25 | 250 | 35 | 5 |
| FSBT01.6 | 1,6 | 200 | 35 | 10 |
| FSBT02 | 2,0 | 200 | 35 | 16 |
| FSBT02.5 | 2,5 | 200 | 35 | 24 |
| FSBT03.15 | 3,15 | 200 | 35 | 42 |
| FSBT04 | 4,0 | 200 | 40 | 70 |
| FSBT05 | 5,0 | 200 | 50 | 130 |
| FSBT06.3 | 6,3 | 200 | 63 | 230 |
| FSBT08 | 8,0 | 200 | 80 | 370 |
| FSBT10 | 10,0 | 150 | 100 | 630 |
| FSBT12 | 12,0 | 150 | 120 | 820 |
| FSBT15 | 15,0 | 150 | 150 | 920 |
| FSBT16 | 16,0 | 150 | 160 | 1.200 |
| FSBT20 | 20,0 | 150 | 200 | 1.600 |
| RBC = Rated Breaking Capacity | ||||
| ||||
| Note |
| You will find suitable fuse holders starting at product group E1810. |
|
| Additional Products |
| 10,000 pieces in industrial packs available on request, delivery time approx. 4 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.siba.de |
|
Inkl. moms
Kr. 8,06
- v/10 – Kr. 5,64
- v/30 – Kr. 4,03
- v/100 – Kr. 2,42
