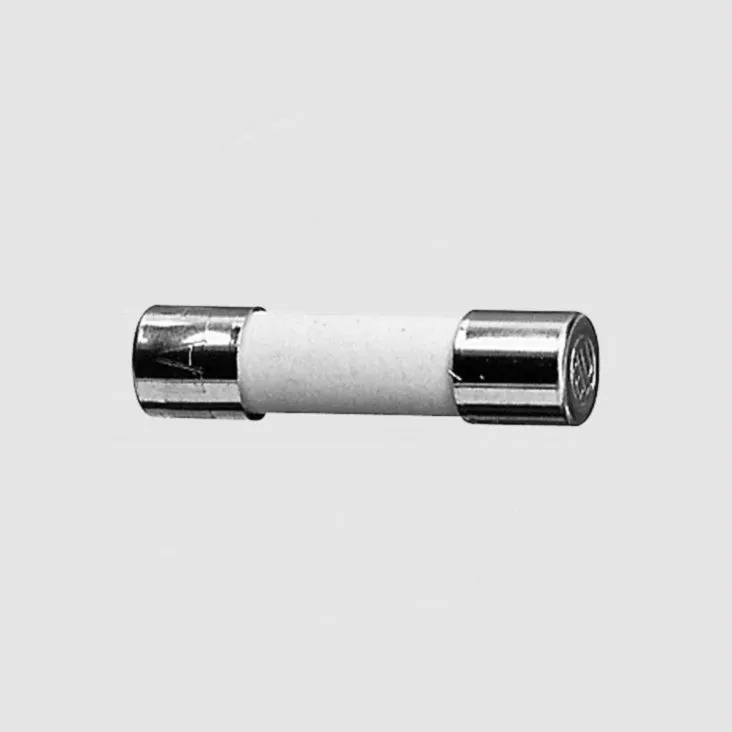

Sikring Træg (T) 1,6A (1600mA) 5x20
Varenummer:
89-029
Varekode: FSHT01,6
Vægt: 1 g
181 stk.
på lager
Features
| • Non-transparent ceramic tube with filling • Nickel plated, brass end caps |
 |
| Technical Specifictions |
|
|
| Rated Voltage: | 250V |
| Rated Breaking Capacity (@ AC 250V): | 1.500A |
|
|
| Part Nr. | Rated | Voltage | Melting | |||
| Current | Drop | Integral | ||||
| [A] | [mV] | [A2s] |  |
 |
 |
|
| FSHT01 | 1,0 | 250 | 1,5 | x | x | x |
| FSHT01.25 | 1,25 | 200 | 3,1 | x | x | x |
| FSHT01.6 | 1,6 | 150 | 6,1 | x | x | x |
| FSHT02 | 2,0 | 130 | 5,2 | x | x | x |
| FSHT02.5 | 2,5 | 110 | 10 | x | x | x |
| FSHT03.15 | 3,15 | 100 | 20 | x | x | x |
| FSHT04 | 4,0 | 90 | 37 | x | x | x |
| FSHT06.3 | 6,3 | 90 | 130 | x | x | x |
| FSHT10 | 10,0 | 90 | 370 | x | ||
|
||||||
| Norms |
| IEC60127-2/5, EN60127-2/5, DIN VDE0820-2/5 |
Inkl. moms
Kr. 6,85
- v/10 – Kr. 4,17
- v/30 – Kr. 2,98
- v/100 – Kr. 1,79
Sikring Træg (T) 1,6A (1600mA) 5x20
89-029
/ FSHT01,6
181 stk.
på lager
Features
| • Non-transparent ceramic tube with filling • Nickel plated, brass end caps |
|
| Technical Specifictions |
|
|
| Rated Voltage: | 250V |
| Rated Breaking Capacity (@ AC 250V): | 1.500A |
|
|
| Part Nr. | Rated | Voltage | Melting | |||
| Current | Drop | Integral | ||||
| [A] | [mV] | [A2s] | |
|
|
|
| FSHT01 | 1,0 | 250 | 1,5 | x | x | x |
| FSHT01.25 | 1,25 | 200 | 3,1 | x | x | x |
| FSHT01.6 | 1,6 | 150 | 6,1 | x | x | x |
| FSHT02 | 2,0 | 130 | 5,2 | x | x | x |
| FSHT02.5 | 2,5 | 110 | 10 | x | x | x |
| FSHT03.15 | 3,15 | 100 | 20 | x | x | x |
| FSHT04 | 4,0 | 90 | 37 | x | x | x |
| FSHT06.3 | 6,3 | 90 | 130 | x | x | x |
| FSHT10 | 10,0 | 90 | 370 | x | ||
|
||||||
| Norms |
| IEC60127-2/5, EN60127-2/5, DIN VDE0820-2/5 |
