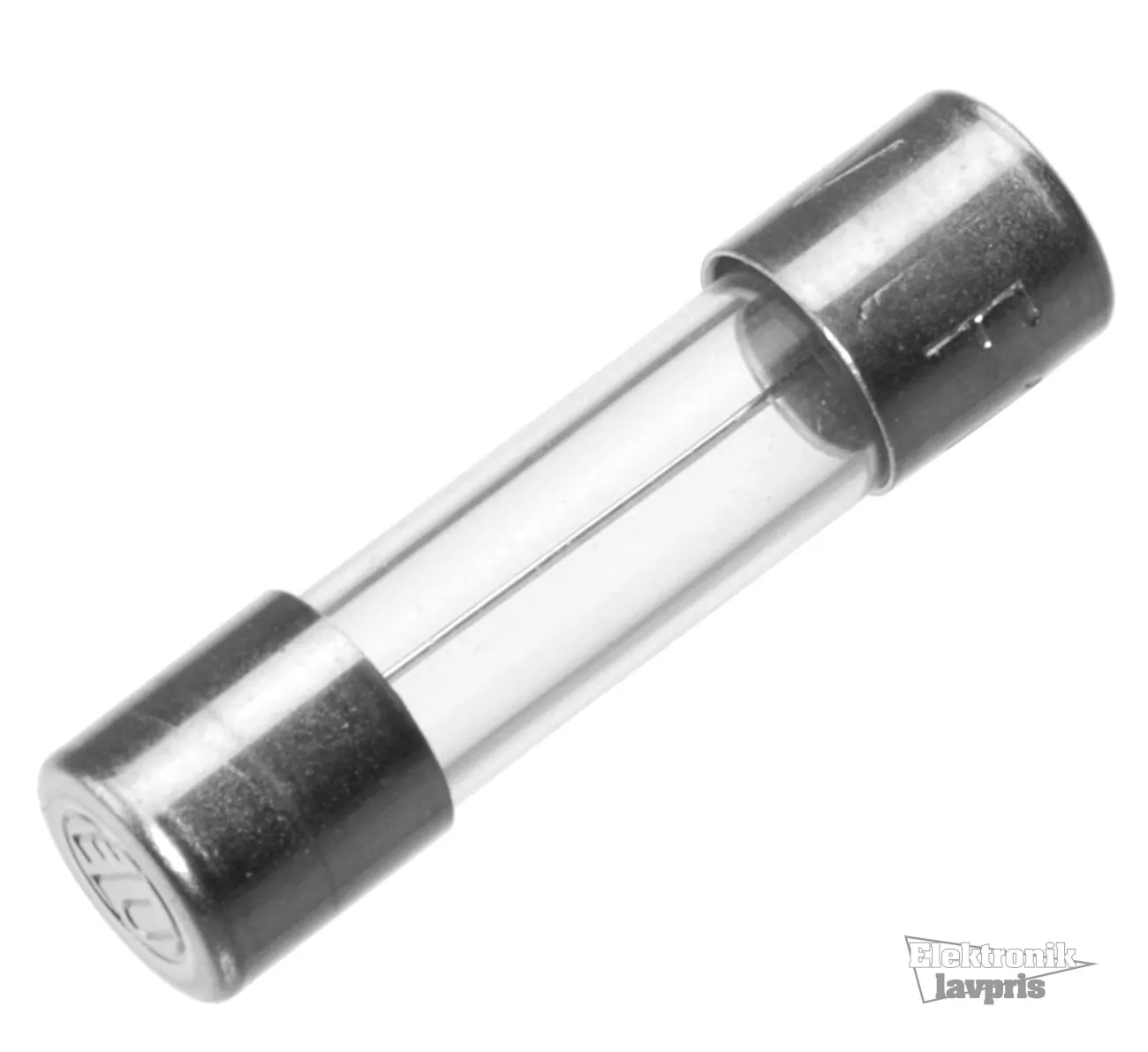

Fuse 6,3x32 Quick-acting 16A
Varenummer:
88-972
Varekode: FSBF16
Vægt: 2 g
118 stk.
på lager
Gruppe:
E1461
SIBA Fuse Links
Series: 189000
IEC60127-2/4
Characteristic: Quick Acting
Rated Voltage: 250V
Housing: 6,3x32mm
SIBA Fuse Links
Series: 189000
IEC60127-2/4
Characteristic: Quick Acting
Rated Voltage: 250V
Housing: 6,3x32mm
| Features |
| Transparent glass tube Nickel plated, brass end caps |
 |
| Technical Specifications |
| |
| Rated Voltage: | 250V |
| Fusing Time Limits 50mA...100mA: | |
| 2xIN: | 20s |
| 2,75xIN: | 2ms...200ms |
| 4xIN: | 1ms...30s |
| 10xIN: | 5ms |
| Fusing Time Limits 125mA...10A: | |
| 2xIN: | 20s |
| 2,75xIN: | 20ms...1,5s |
| 4xIN: | 8ms...400ms |
| 10xIN: | 80ms |
| |
| Part Nr. | Rated | RBC | Voltage | Power | Melting |
| Current | Drop | dissipation | Integral | ||
| [A] | [A AC] | [mV] | [W] | [A2s] | |
| FSBF00.5 | 0,5 | 35 | 2000 | 1,3 | 0,21 |
| FSBF01 | 1,0 | 35 | 500 | 0,5 | 1,1 |
| FSBF01.6 | 1,6 | 35 | 400 | 0,7 | 3,3 |
| FSBF02 | 2,0 | 35 | 300 | 0,8 | 6,2 |
| FSBF02.5 | 2,5 | 35 | 250 | 0,9 | 13 |
| FSBF03.15 | 3,15 | 35 | 250 | 1,1 | 24 |
| FSBF04 | 4,0 | 40 | 250 | 1,3 | 40 |
| FSBF05 | 5,0 | 50 | 200 | 1,4 | 80 |
| FSBF06.3 | 6,3 | 63 | 200 | 1,6 | 150 |
| FSBF08 | 8,0 | 80 | 200 | 2,0 | 240 |
| FSBF10 | 10,0 | 100 | 200 | 2,3 | 500 |
| FSBF12.5 | 12,5 | 125 | 200 | 2,5 | 650 |
| FSBF15 | 15,0 | 150 | 200 | 2,7 | 930 |
| FSBF16 | 16,0 | 160 | 200 | 2,8 | 1250 |
| FSBF20 | 20,0 | 200 | 200 | 4,0 | 1600 |
| RBC = Rated Breaking Capacity | |||||
| |||||
| Note |
| When using this type from 6.3A up, consideration should be given to heat dissipation. You will find suitable fuse holders starting at product group E1810. |
|
| Norms |
| IEC 60127-2/4 |
|
| Additional Products |
| Other parts of 5,000 pieces upwards available on request, delivery time approx. 4 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.siba.de |
|
Inkl. moms
Kr. 7,83
- v/10 – Kr. 5,48
- v/30 – Kr. 3,91
- v/100 – Kr. 2,35
