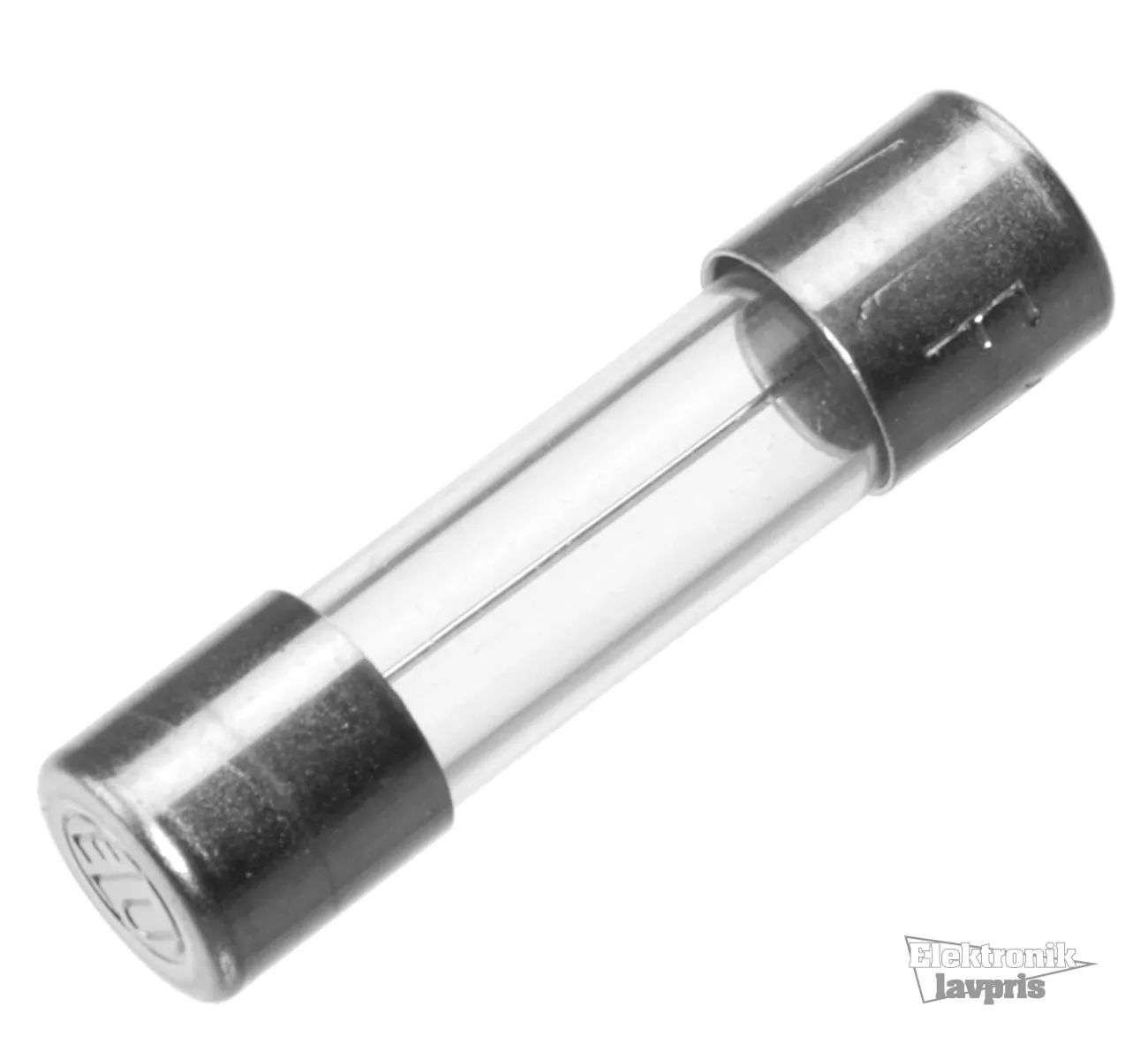

Fuse 5x20 Quick-acting 5,0A

Varenummer: 88-953
Varekode: FSF05
Vægt: 0 g
272 stk. på lager
Vis lignende produkter i kategorien "F = Flink"
Gruppe: E1421
SIBA Fuse Links
Series: 179020
IEC60127-2/2
Characteristic: Quick Acting
Rated Voltage: 250V
Housing: 5x20mm
Features
Transparent glass tube
Nickel plated, brass end caps
Technical Specifications
Rated Voltage:
250V
Fusing Time Limits 32mA...100mA:
1,5xIN:
1h...30min.
2,75xIN:
10ms...50ms
4xIN:
3ms...100s
10xIN:
20ms
Fusing Time Limits 125mA...6,3A:
1,5xIN:
1h...30min.
2,75xIN:
50ms...2s
4xIN:
10ms...300ms
10xIN:
20ms
Fusing Time Limits 8A...10A:
1,5xIN, Min.:
30min.
2,1xIN, Max.:
30min.
2,75xIN:
50ms...2s
4xIN:
10ms...400ms
10xIN, Max.:
40ms
Part Nr.
Rated
RBC
Voltage

 Current
 Drop

 [A]
[A AC]
[mV]



FSF00.10,1
35
2200
x
x
x
x
FSF00.1250,125
35
350
x
x
x
x
FSF00.160,16
35
310
x
x
x
x
FSF00.20,2
35
290
x
x
x
x
FSF00.250,25
35
280
x
x
x
x
FSF00.3150,315
35
230
x
x
x
x
FSF00.40,4
35
200
x
x
x
x
FSF00.50,5
35
160
x
x
x
x
FSF00.630,63
35
140
x
x
x
x
FSF00.80,8
35
130
x
x
x
x
FSF011,0
35
130
x
x
x
x
FSF01.251,25
35
120
x
x
x
x
FSF01.41,4
35
120

FSF01.61,6
35
120
x
x
x
x
FSF02.02,0
35
120
x
x
x
x
FSF02.52,5
35
120
x
x
x
x
FSF03.153,15
35
120
x
x
x
x
FSF044,0
40
100
x
x
x
x
FSF055,0
50
100
x
x
x
x
FSF06.36,3
63
100
x
x
x
x
FSF088,0
80
100

FSF1010,0
100
100

FSF1616,0
300
100

RBC = Rated Breaking Capacity
Note
You will find suitable fuse holders starting at product group E1810.
Norms
IEC60127-2/2, EN60127-2/2, DIN VDE0820-2/2
Labelling
On the end caps: manufacturers logo, rated voltage and breaking capacity: S = Quick-acting, M = Medium Time-lag, T = Time-lag
Additional Products
10,000 pieces in industrial packs available on request, delivery time approx. 4 weeks.
Terms of Delivery
Minimum order quantity: 1 PKU = 10 pieces
Manufacturer

http://www.siba.de
Inkl. moms
Kr. 6,65
  • v/10 – Kr. 2,76
  • v/30 – Kr. 1,97
  • v/100 – Kr. 1,18
