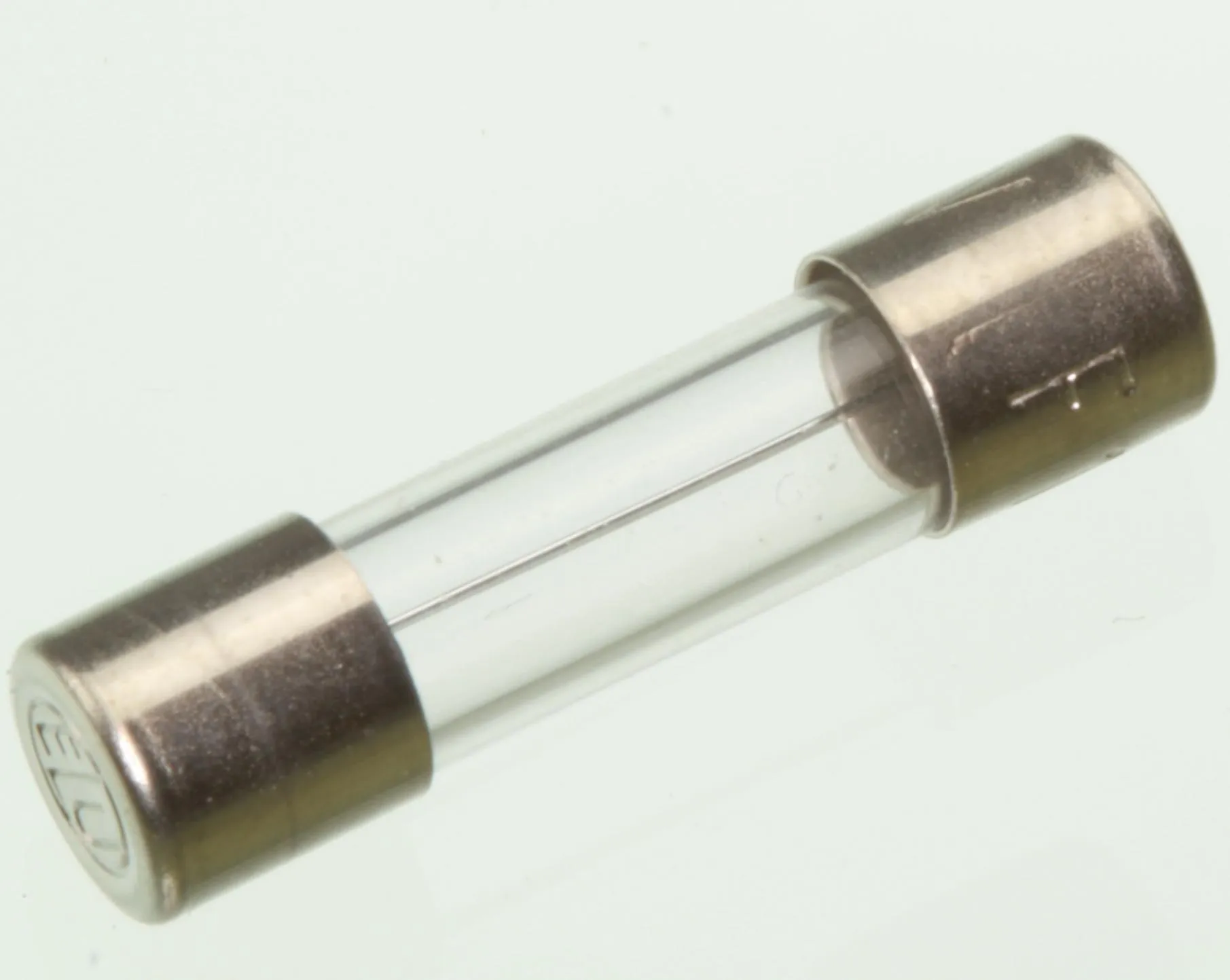

Sikring Flink 4A 5x20
Varenummer:
88-952
Varekode: FSF04
Vægt: 0 g
359 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 5240 stk. kan skaffes fredag d. 27/11
Vis lignende produkter i kategorien "F = Flink"
Gruppe: E1421
SIBA Fuse Links
Series: 179020
IEC60127-2/2
Characteristic: Quick Acting
Rated Voltage: 250V
Housing: 5x20mm
• Transparent glass tube • Nickel plated, brass end caps |
 |
 |
| |
|
Rated Voltage: |
250V |
Fusing Time Limits 32mA...100mA: |
1,5xIN: |
1h...30min. |
2,75xIN: |
10ms...50ms |
4xIN: |
3ms...100s |
10xIN: |
20ms |
Fusing Time Limits 125mA...6,3A: |
1,5xIN: |
1h...30min. |
2,75xIN: |
50ms...2s |
4xIN: |
10ms...300ms |
10xIN: |
20ms |
Fusing Time Limits 8A...10A: |
1,5xIN, Min.: |
30min. |
2,1xIN, Max.: |
30min. |
2,75xIN: |
50ms...2s |
4xIN: |
10ms...400ms |
10xIN, Max.: |
40ms |
 |
| |
|
|
|
|
|
|
|
Part Nr. |
Rated |
RBC |
Voltage |
|
|
|
|
|
Current |
|
Drop |
|
|
|
|
|
[A] |
[A AC] |
[mV] |
|
|
|
|
FSF00.1 |
0,1 |
35 |
2200 |
x |
x |
x |
x |
FSF00.125 |
0,125 |
35 |
350 |
x |
x |
x |
x |
FSF00.16 |
0,16 |
35 |
310 |
x |
x |
x |
x |
FSF00.2 |
0,2 |
35 |
290 |
x |
x |
x |
x |
FSF00.25 |
0,25 |
35 |
280 |
x |
x |
x |
x |
FSF00.315 |
0,315 |
35 |
230 |
x |
x |
x |
x |
FSF00.4 |
0,4 |
35 |
200 |
x |
x |
x |
x |
FSF00.5 |
0,5 |
35 |
160 |
x |
x |
x |
x |
FSF00.63 |
0,63 |
35 |
140 |
x |
x |
x |
x |
FSF00.8 |
0,8 |
35 |
130 |
x |
x |
x |
x |
FSF01 |
1,0 |
35 |
130 |
x |
x |
x |
x |
FSF01.25 |
1,25 |
35 |
120 |
x |
x |
x |
x |
FSF01.4 |
1,4 |
35 |
120 |
|
|
|
|
FSF01.6 |
1,6 |
35 |
120 |
x |
x |
x |
x |
FSF02.0 |
2,0 |
35 |
120 |
x |
x |
x |
x |
FSF02.5 |
2,5 |
35 |
120 |
x |
x |
x |
x |
FSF03.15 |
3,15 |
35 |
120 |
x |
x |
x |
x |
FSF04 |
4,0 |
40 |
100 |
x |
x |
x |
x |
FSF05 |
5,0 |
50 |
100 |
x |
x |
x |
x |
FSF06.3 |
6,3 |
63 |
100 |
x |
x |
x |
x |
FSF08 |
8,0 |
80 |
100 |
|
|
|
|
FSF10 |
10,0 |
100 |
100 |
|
|
|
|
FSF16 |
16,0 |
300 |
100 |
|
|
|
|
| RBC = Rated Breaking Capacity |
 |
| Note |
| You will find suitable fuse holders starting at product group E1810. |
 |
| Norms |
| IEC60127-2/2, EN60127-2/2, DIN VDE0820-2/2 |
 |
| Labelling |
| On the end caps: manufacturers logo, rated voltage and breaking capacity: S = Quick-acting, M = Medium Time-lag, T = Time-lag |
 |
| Additional Products |
| 10,000 pieces in industrial packs available on request, delivery time approx. 4 weeks. |
 |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
 |
