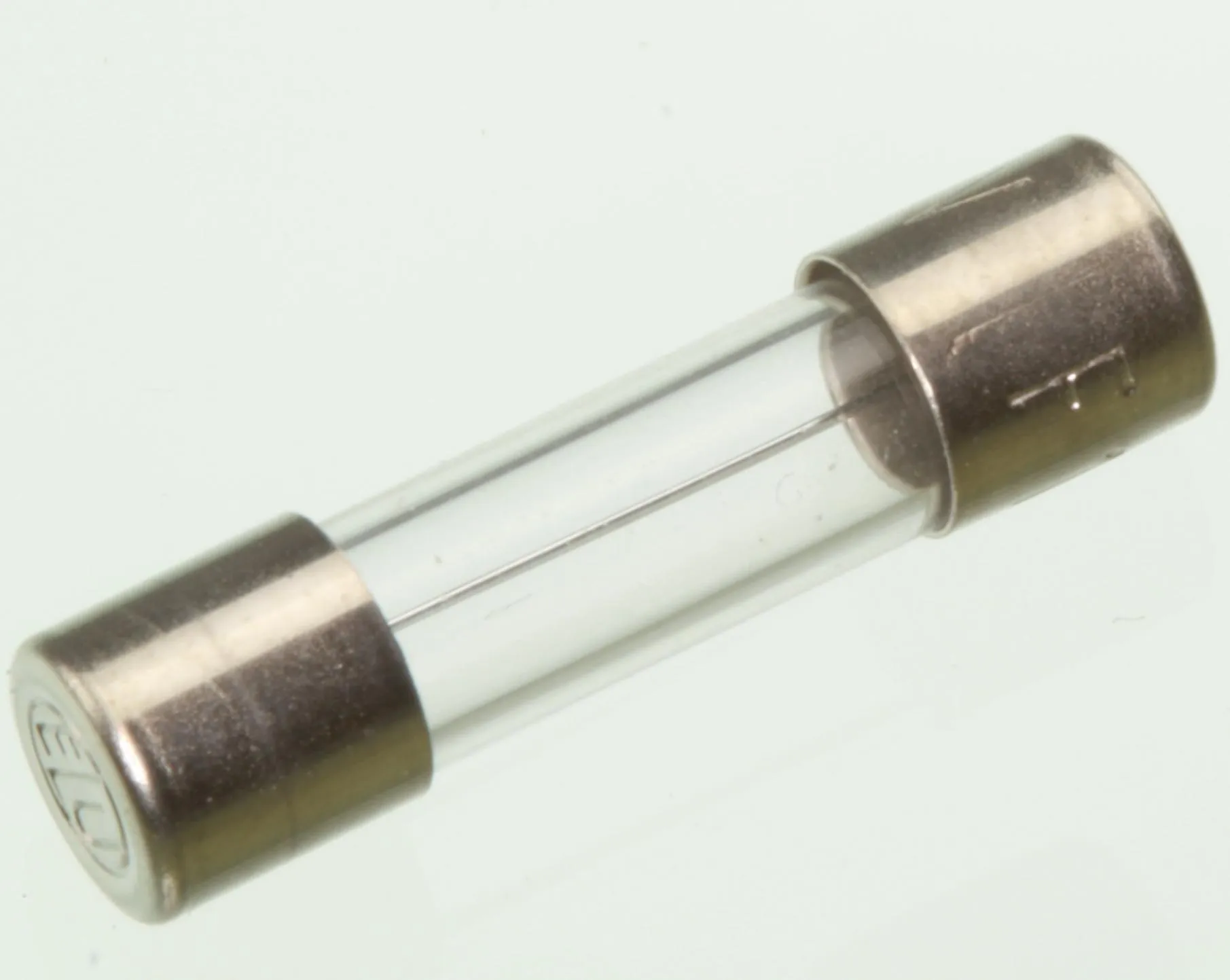

Sikring Flink(F) 1,6A 5x20
Varenummer:
88-948
Varekode: FSF01,6
Vægt: 0 g
0 stk.
på lager
Fuse 5x20 Quick-acting 1,6A179020.1,6 : SIBA
Features
| • Transparent glass tube • Nickel plated, brass end caps |
 |
| Technical Specifications |
|
|
| Rated Voltage: | 250V |
| Fusing Time Limits 32mA...100mA: | |
| 1,5xIN: | 1h...30min. |
| 2,75xIN: | 10ms...50ms |
| 4xIN: | 3ms...100s |
| 10xIN: | 20ms |
| Fusing Time Limits 125mA...6,3A: | |
| 1,5xIN: | 1h...30min. |
| 2,75xIN: | 50ms...2s |
| 4xIN: | 10ms...300ms |
| 10xIN: | 20ms |
| Fusing Time Limits 8A...10A: | |
| 1,5xIN, Min.: | 30min. |
| 2,1xIN, Max.: | 30min. |
| 2,75xIN: | 50ms...2s |
| 4xIN: | 10ms...400ms |
| 10xIN, Max.: | 40ms |
| Labelling |
| On the end caps: manufacturers logo, rated voltage and breaking capacity: S = Quick-acting, M = Medium Time-lag, T = Time-lag |
| Norms |
| IEC60127-2/2, EN60127-2/2, DIN VDE0820-2/2 |
|
Inkl. moms
Kr. 6,65
- v/10 – Kr. 2,76
- v/30 – Kr. 1,97
- v/100 – Kr. 1,18
Produktfiler
