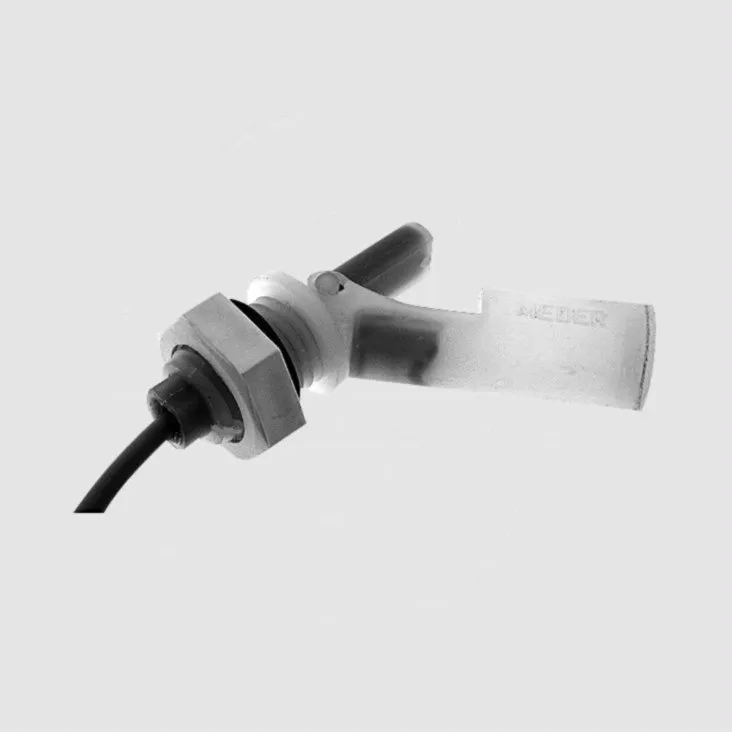

Niveauføler for væsker SPST-NO horisontal
Varenummer:
88-848
Varekode: LS03-1A66-PP-500W
Vægt: 22 g
5 stk.
på lager
Features
| • To monitor point levels in containers for automotive applications, measuring and control and domestic applications • _PP: for use in plain or acidic water; chimney, float and screw made from polypropylene • _PA: for oil; chimney, float and screw made from polyamide • Sealed with nitril-rubber |
 |
| Technical Specifications |
|
|
| Type of Contact: | SPST |
| Switching Capacity, Max.: | 10W |
| Switching Voltage, Max.: | 200V DC |
| Switching Current, Max.: | 0,5A |
| Current at Closed Contacts: | 1,25A |
| Contact Resistance, Max.: | 150mOhm |
| Shock Resistance, Max.: | 50G |
| Vibration Resistance, Max.: | 20G |
| Operating Temperature Range* | |
| LS01_: | -20...+80°C |
| MLS2_: | -30...+80°C |
| MKL3_/LS03_: | -20...+80°C |
| * Cable not moved | |
Inkl. moms
Kr. 116,21
- v/3 – Kr. 109,35
- v/10 – Kr. 102,50
Produktfiler
Niveauføler for væsker SPST-NO horisontal
88-848
/ LS03-1A66-PP-500W
5 stk.
på lager
Features
| • To monitor point levels in containers for automotive applications, measuring and control and domestic applications • _PP: for use in plain or acidic water; chimney, float and screw made from polypropylene • _PA: for oil; chimney, float and screw made from polyamide • Sealed with nitril-rubber |
|
| Technical Specifications |
|
|
| Type of Contact: | SPST |
| Switching Capacity, Max.: | 10W |
| Switching Voltage, Max.: | 200V DC |
| Switching Current, Max.: | 0,5A |
| Current at Closed Contacts: | 1,25A |
| Contact Resistance, Max.: | 150mOhm |
| Shock Resistance, Max.: | 50G |
| Vibration Resistance, Max.: | 20G |
| Operating Temperature Range* | |
| LS01_: | -20...+80°C |
| MLS2_: | -30...+80°C |
| MKL3_/LS03_: | -20...+80°C |
| * Cable not moved | |
