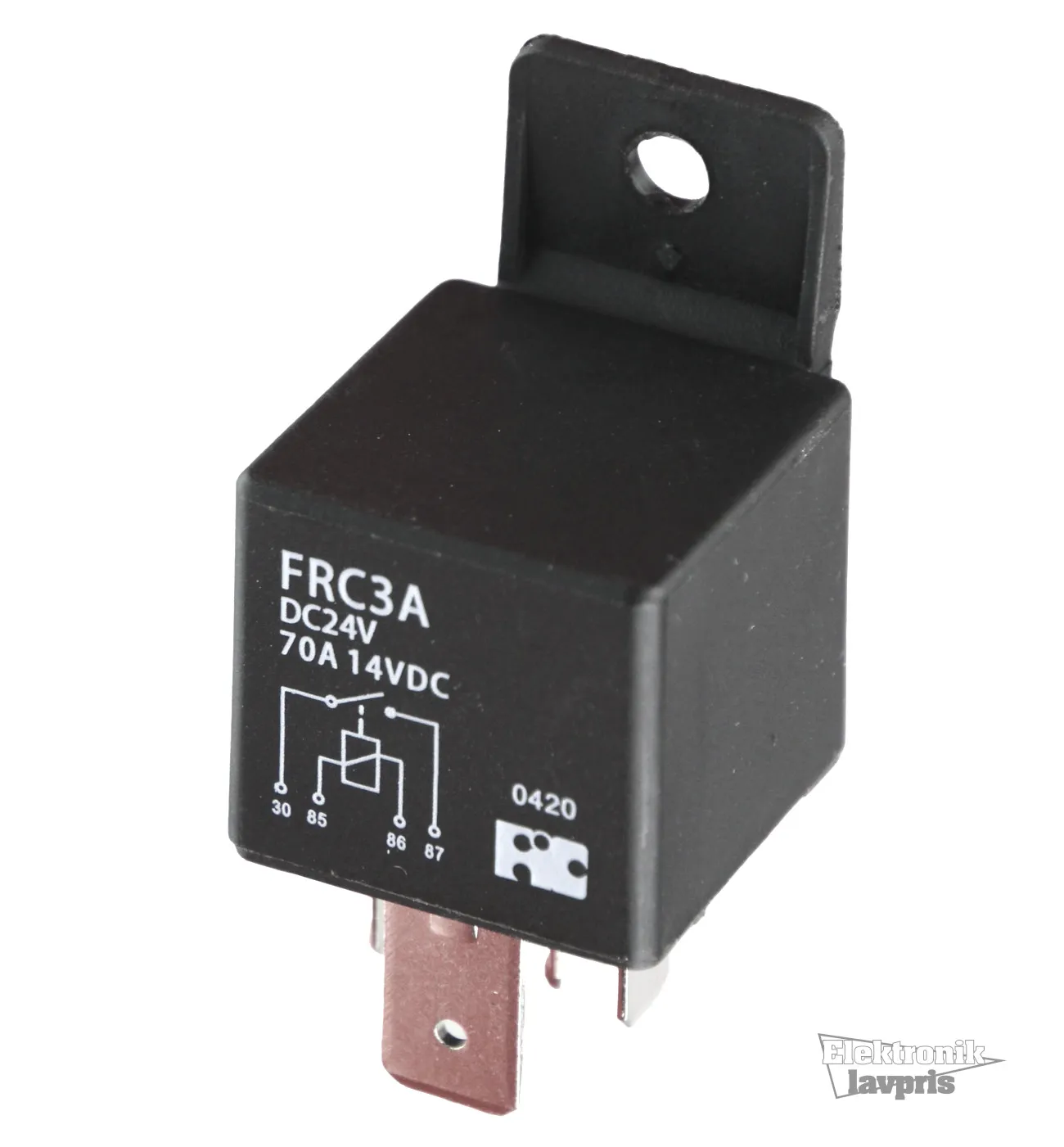

High Current Relay SPST 70A 24V 320R 1xSlutte
Varenummer:
88-749
Varekode: FRC3-A-DC24V
Vægt: 44 g
7 stk.
på lager
Specifikationer
| Relæ kontakt | SPST |
|---|---|
| Mærkestrøm | 70 A |
| Spolemodstand | 320 Ω |
| Spolespænding | 24 V |
Gruppe:
E6523
FIC Automotive Relays
Series: FRC3
Contact: SPST-NO
Rated Current: 70A
Housing: 29,0x29,0x26,5mm (42,5mm)
E6523
FIC Automotive Relays
Series: FRC3
Contact: SPST-NO
Rated Current: 70A
Housing: 29,0x29,0x26,5mm (42,5mm)
| Features |
| • High contact ratings 70A • PCB terminals |
 |
| Technical Specifications |
| |
| Contact: | SPST-NO |
| Contact Material: | AgSnO2 |
| Rated Current: | 70A |
| Max. Switching Current: | 75V DC |
| Operate/Release Time: | 10/10ms |
| Testing Voltage Coil/Contact: | 500V AC |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Electrical: | 1x105 Operations |
| Operating Temperature: | -40...+85°C |
| Weight Approx.: | 47g |
| |
| Coil Data |
| Part Nr. | UN | Umax. | UAn | UAb | IN | PN | RN |
| [V DC] | [V] | [V] | [V] | [mA] | [mW] | [W] | |
| FRC3-12F | 12 | 18 | 7,8 | 1,2 | 150 | 1800 | 80 |
| FRC3-24F | 24 | 36 | 15,6 | 2,4 | 75 | 1800 | 320 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||
| |||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.ficrelay.com.hk |
|
Inkl. moms
Kr. 73,13
- v/10 – Kr. 52,34
- v/25 – Kr. 43,83
- v/100 – Kr. 35,31
