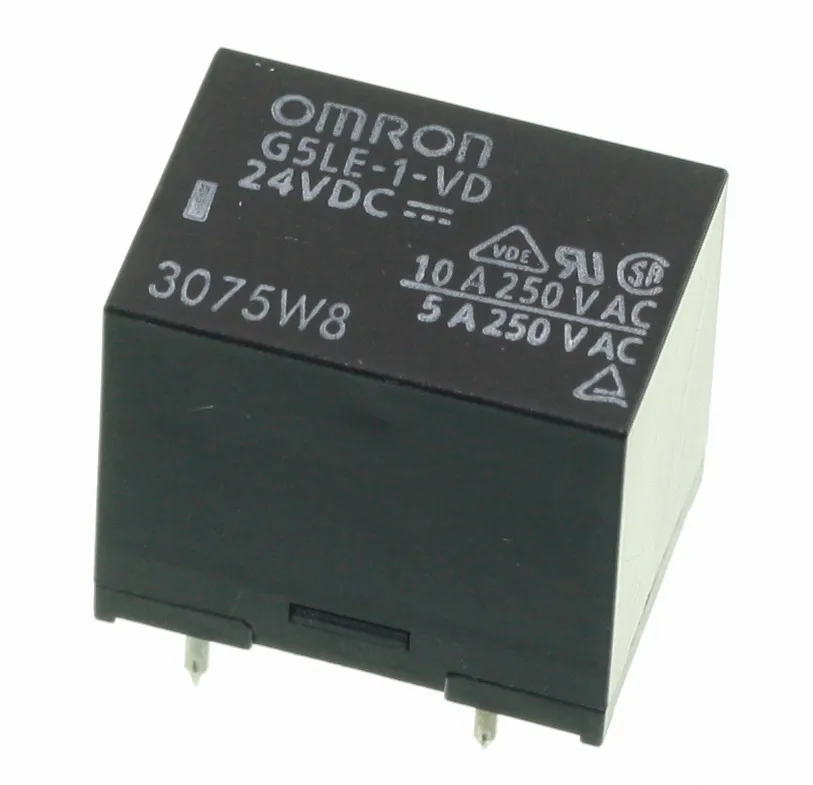

Omron Relæ 1xSkifte 24VDC 10A 1440R
Varenummer:
88-734
Varekode: G5LE-1 24DC
Vægt: 10 g
8 stk.
på lager
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Spolespænding | 24 V |
| Spolemodstand | 1.44 kΩ |
| Mærkestrøm | 10 A |
Omron G5LE-1-VD 24 VDC PCB Mount Relay, Cube 24Vdc 1 CO, SPDT
Technical data
- Creep resistance: PTI (CTI) > 250
| Type | G5LE-1-VD 24 VDC |
|---|---|
| Coil nominal voltage | 24 Vdc |
| Control mode | monostable, 1 coil |
| R(coil) | 1440 Ω |
| Contact type | 1 change-over |
| Contact material | AgSnO2 |
| Switching voltage (max.) | 125 Vdc, 250 Vac |
| Switching current (max.) | 8 A |
| Max. switching capacity | 240 W, 1200 VA |
| Connection | Solder pins |
| Electrical lifespan | Min 100000 cycles |
| Durability | Min 10 x 106 cycles |
| Min. temperature | -40 °C |
| Max. temperature | +85 °C |
| Length | 22.5 mm |
| Width | 16.5 mm |
| Height | 19 mm |
| Category | PCB relays |
| Content | 1 pc(s) |
Highlights & details
- VDE-certification
Description
Mono-stable, compact PCB-relay. Is used in white goods, controls of all kinds!
Approvals: Certified by VDE according to EN61810-1, UL508 and CSA 22.2.
Inkl. moms
Kr. 18,50
- v/10 – Kr. 13,88
- v/25 – Kr. 13,44
- v/100 – Kr. 10,50
Produktfiler
Omron Relæ 1xSkifte 24VDC 10A 1440R
88-734
/ G5LE-1 24DC
8 stk.
på lager
Specifikationer
- Relæ kontakt SPDT
- Spolespænding 24 V
- Spolemodstand 1.44 kΩ
- Mærkestrøm 10 A
Omron G5LE-1-VD 24 VDC PCB Mount Relay, Cube 24Vdc 1 CO, SPDT
Technical data
- Creep resistance: PTI (CTI) > 250
| Type | G5LE-1-VD 24 VDC |
|---|---|
| Coil nominal voltage | 24 Vdc |
| Control mode | monostable, 1 coil |
| R(coil) | 1440 Ω |
| Contact type | 1 change-over |
| Contact material | AgSnO2 |
| Switching voltage (max.) | 125 Vdc, 250 Vac |
| Switching current (max.) | 8 A |
| Max. switching capacity | 240 W, 1200 VA |
| Connection | Solder pins |
| Electrical lifespan | Min 100000 cycles |
| Durability | Min 10 x 106 cycles |
| Min. temperature | -40 °C |
| Max. temperature | +85 °C |
| Length | 22.5 mm |
| Width | 16.5 mm |
| Height | 19 mm |
| Category | PCB relays |
| Content | 1 pc(s) |
Highlights & details
- VDE-certification
Description
Mono-stable, compact PCB-relay. Is used in white goods, controls of all kinds!
Approvals: Certified by VDE according to EN61810-1, UL508 and CSA 22.2.
