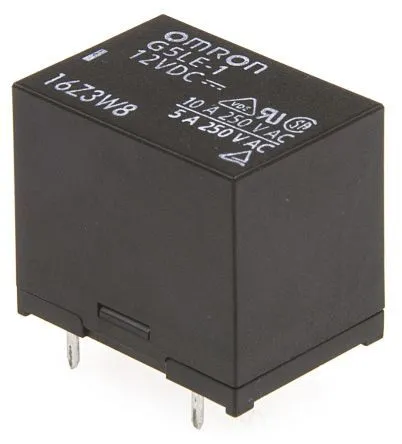

Relay SPDT 10A 12V 360R
Varenummer:
88-733
Varekode: G5LE-1 12DC
Vægt: 20 g
7 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Spolemodstand | 360 Ω |
| Spolespænding | 12 V |
| Mærkestrøm | 10 A |
- RELAY, SPDT, 10A, 250VAC, THT
- Product Range: OMRON - G5LE Series
- Coil Voltage: 12VDC
- Contact Current: 10A
- Contact Voltage VAC: 120V
- Contact Voltage VDC: 30V
- Contact Configuration: SPDT
- Coil Resistance: 360ohm
- Relay Mounting: Through Hole
- SVHC: No SVHC (20-Jun-2013)
- Coil Current: 33.3mA
- Coil Type: DC
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 10A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- External Depth: 16.5mm
- External Height: 19mm
- External Width: 22.5mm
- Nom Operating Power: 400mW
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Relay Type: Power
Inkl. moms
Kr. 21,00
- v/10 – Kr. 13,88
- v/25 – Kr. 13,44
- v/100 – Kr. 10,50
Produktfiler
Relay SPDT 10A 12V 360R
88-733
/ G5LE-1 12DC
7 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Kontakt os for at få oplyst leveringstid
Specifikationer
- Relæ kontakt SPDT
- Spolemodstand 360 Ω
- Spolespænding 12 V
- Mærkestrøm 10 A
- RELAY, SPDT, 10A, 250VAC, THT
- Product Range: OMRON - G5LE Series
- Coil Voltage: 12VDC
- Contact Current: 10A
- Contact Voltage VAC: 120V
- Contact Voltage VDC: 30V
- Contact Configuration: SPDT
- Coil Resistance: 360ohm
- Relay Mounting: Through Hole
- SVHC: No SVHC (20-Jun-2013)
- Coil Current: 33.3mA
- Coil Type: DC
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 10A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- External Depth: 16.5mm
- External Height: 19mm
- External Width: 22.5mm
- Nom Operating Power: 400mW
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Relay Type: Power
Produktfiler
