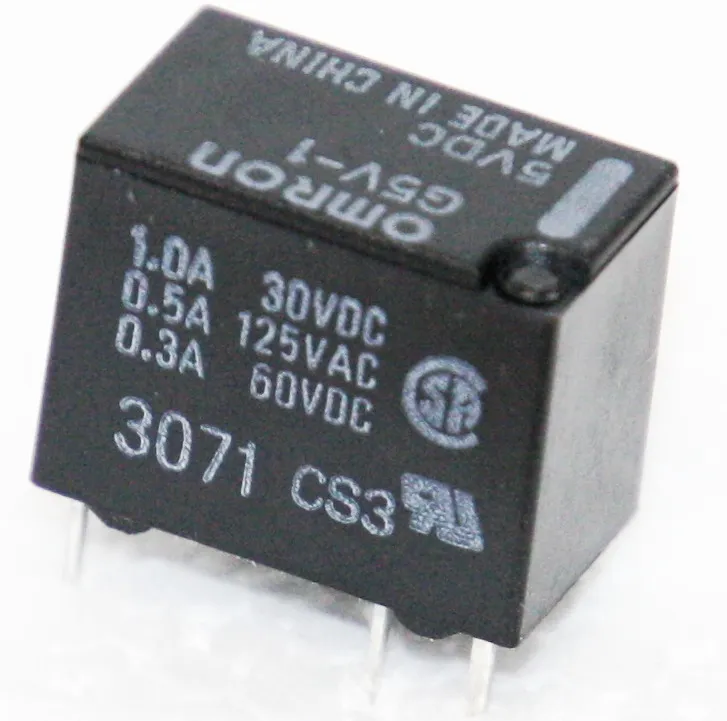

Relay SPDT 1A 5V 167R
Varenummer:
88-702
Varekode: G5V1-5
Vægt: 3 g
50 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 3325 stk. kan skaffes mandag d. 9/11
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Spolespænding | 5 V |
| Spolemodstand | 167 Ω |
| Mærkestrøm | 1 A |
Gruppe:
E6213
OMRON Signal PCB Relays
Series: G5V1
Contact: SPDT
Rated Current: 1A
Housing: 12,5x7,5x10mm
OMRON Signal PCB Relays
Series: G5V1
Contact: SPDT
Rated Current: 1A
Housing: 12,5x7,5x10mm
| Features |
| Wash tight construction Wide switching capacity: 1mA...1A Highly sensitive coil: 150mW Insertable in a 10-pole IC socket Conforms to FCC (part 68) requirements for coil to contacts |
 |
| Technical Specifications |
| |
| Contact: | SPDT (Single Crossbar) |
| Contact Material: | Silver, Gold-Plated |
| Rated Current: | 1A |
| Max. Switching Voltage: | 125V AC / 60V DC |
| Switching Power: | 30W / 62,5VA |
| Operate/Release Time: | 5/5ms |
| Testing Voltage (50/60Hz; 1 Min.) | |
| Coil/Contact: | 1000V AC |
| Lifetime | |
| Mechanical: | 5x106 Operations |
| Electrical: | 1x105 Operations |
| Operating Temperature: | -40...+70C |
| Weight Approx.: | 2g |
| |
| Coil Data |
| Part Nr. | UN | Umax. | UAn | UAb. | IN | RN |
| [V DC] | [V] | [V] | [V] | [mA] | [W] | |
| G5V1-5 | 5 | 10 | 4 | 0,5 | 30,0 | 167 |
| G5V1-12 | 12 | 24 | 9,6 | 1,2 | 12,5 | 960 |
| G5V1-24 | 24 | 48 | 19,2 | 2,4 | 6,25 | 3840 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, RN = Coil Resistance; All Specifications Measured at 23C | ||||||
| ||||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.europe.omron.com |
|
Inkl. moms
Kr. 33,29
- v/10 – Kr. 21,47
- v/25 – Kr. 18,52
- v/100 – Kr. 13,69
- v/1000 – Kr. 10,73
