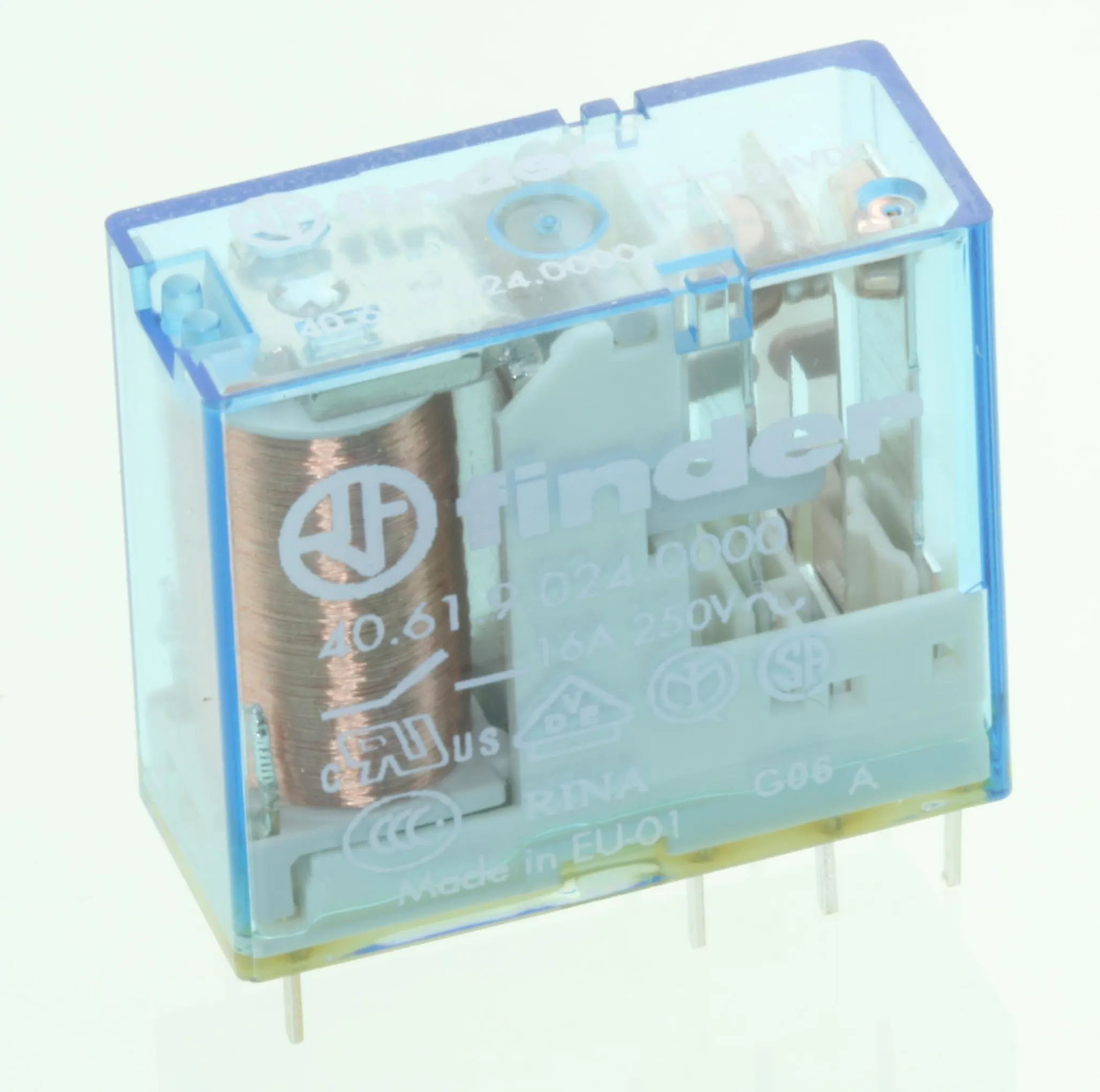

Relæ 1xU 16A 24Vdc 900R 40.61.9.024.0000
Varenummer:
88-673
Varekode: F4061-24
Vægt: 18 g
31 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere kan skaffes onsdag d. 4/11
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Spolemodstand | 900 Ω |
| Spolespænding | 24 V |
| Mærkestrøm | 16 A |
Gruppe:
E6416
FINDER Power PCB Relays
Series: 40.61
Contact: SPDT
Rated Current: 16A
Housing: 29,0x12,4x25,0mm
| Features |
| • Versions with DC or AC coil • Flux protection (260°C, 5s) • Relay protection class RTII |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||||
| Contact: | SPDT (Double Contact) | Contact Material: | F4061-12, -24: | AgCdO | F4061-_A: | AgSnO2 | Rated Current: | 16A | Max. Switching Current: | 30A | Max. Switching Voltage: | 400V AC | Max. Switching Power (AC/DC): | 750/4000VA | Creepage/Clearance: | 8mm | Operate/Release Time: | 7/3ms | Testing Voltage | Coil/Contact: | 6000V | Opening Contact: | 1000V | Lifetime | Mechanical (AC/DC): | 10x106/20x106 Opetations | Electrical: | 10x104 Operations | Operating Temperature: | -40...+85°C | |||||
|
|||||||||||||||||||||||||||||||||||
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN | [V DC/AC] | [V] | [V] | [mA] | [mW] | [W] | F4061-12 | 12 | 8,8 | 18 | 55 | 650 | 220 | F4061-12A | 12 | 8,8 | 18 | 55 | 650 | 220 | F4061-24 | 24 | 17,5 | 36 | 27 | 650 | 900 | F4061-24A | 24 | 17,5 | 36 | 27 | 650 | 900 | F4061-AC230A | 230 | 184 | 253 | 5 | - | 28000 | ||||||||
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • Assembly by direct soldering in the PCB or • PCB socket F95132 with retaining clip F9551SW rather F95523, see product group E6481, or • DIN rail socket F95833 with retaining clip F95913, see product group E6485 |
|
| Norms |
| The series complies with VDE0106, EN50178, EN60204 and EN60335 secure Separation between coil and contacts. |
|
| Labelling |
 |
|
| Approvals |
          |
|
| Additional Products |
| For contact loads of up to 15V DC/AC or in 5 to 20mA range, relays with silver contacts and hard overlays are recommended; 500 pieces available on request, delivery time approx. 8 weeks. Wash tight version of 500 pieces available on request, delivery time approx. 8 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces F4061-AC230: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
Inkl. moms
Kr. 58,75
- v/10 – Kr. 55,00
- v/50 – Kr. 47,50
Produktfiler
Relæ 1xU 16A 24Vdc 900R 40.61.9.024.0000
88-673
/ F4061-24
31 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem onsdag d. 4/11
Specifikationer
- Relæ kontakt SPDT
- Spolemodstand 900 Ω
- Spolespænding 24 V
- Mærkestrøm 16 A
Gruppe:
E6416
FINDER Power PCB Relays
Series: 40.61
Contact: SPDT
Rated Current: 16A
Housing: 29,0x12,4x25,0mm
| Features |
| • Versions with DC or AC coil • Flux protection (260°C, 5s) • Relay protection class RTII |
|
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||||
| Contact: | SPDT (Double Contact) | Contact Material: | F4061-12, -24: | AgCdO | F4061-_A: | AgSnO2 | Rated Current: | 16A | Max. Switching Current: | 30A | Max. Switching Voltage: | 400V AC | Max. Switching Power (AC/DC): | 750/4000VA | Creepage/Clearance: | 8mm | Operate/Release Time: | 7/3ms | Testing Voltage | Coil/Contact: | 6000V | Opening Contact: | 1000V | Lifetime | Mechanical (AC/DC): | 10x106/20x106 Opetations | Electrical: | 10x104 Operations | Operating Temperature: | -40...+85°C | |||||
|
|||||||||||||||||||||||||||||||||||
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN | [V DC/AC] | [V] | [V] | [mA] | [mW] | [W] | F4061-12 | 12 | 8,8 | 18 | 55 | 650 | 220 | F4061-12A | 12 | 8,8 | 18 | 55 | 650 | 220 | F4061-24 | 24 | 17,5 | 36 | 27 | 650 | 900 | F4061-24A | 24 | 17,5 | 36 | 27 | 650 | 900 | F4061-AC230A | 230 | 184 | 253 | 5 | - | 28000 | ||||||||
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • Assembly by direct soldering in the PCB or • PCB socket F95132 with retaining clip F9551SW rather F95523, see product group E6481, or • DIN rail socket F95833 with retaining clip F95913, see product group E6485 |
|
| Norms |
| The series complies with VDE0106, EN50178, EN60204 and EN60335 secure Separation between coil and contacts. |
|
| Labelling |
| |
|
| Approvals |
| |
|
| Additional Products |
| For contact loads of up to 15V DC/AC or in 5 to 20mA range, relays with silver contacts and hard overlays are recommended; 500 pieces available on request, delivery time approx. 8 weeks. Wash tight version of 500 pieces available on request, delivery time approx. 8 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces F4061-AC230: 1 PKU = 5 pieces |
|
| Manufacturer |
| |
| http://www.findernet.com |
|
