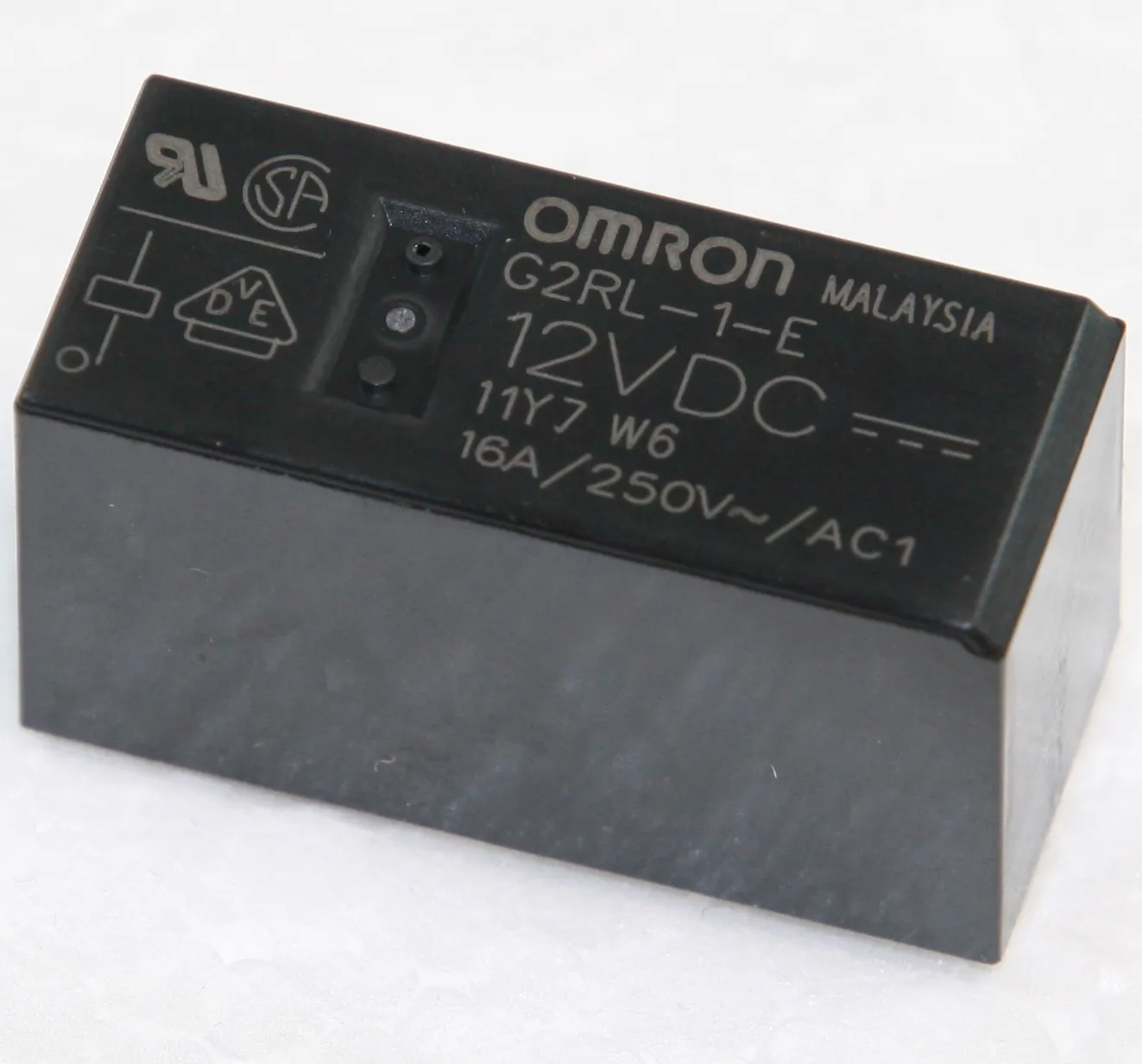

Relay SPDT 16A 12V 360R
Varenummer:
88-653
Varekode: G2RL-1-E 12DC
Vægt: 14 g
15 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 520 stk. kan skaffes mandag d. 9/11
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Spolemodstand | 360 Ω |
| Mærkestrøm | 16 A |
| Spolespænding | 12 V |
Gruppe:
E6378
OMRON Power PCB Relays
Series: G2RL
Contact: SPDT or DPDT
Switching Current: 8A, 12A, 16A
Housing: 29,0x12,7x15,7mm
E6378
OMRON Power PCB Relays
Series: G2RL
Contact: SPDT or DPDT
Switching Current: 8A, 12A, 16A
Housing: 29,0x12,7x15,7mm
| Features |
| • High sensitive coil: 400mV • 10kV dielectric strength coil/contact |
 |
| Technical Specifications |
| |
| Contact | |
| G2RL1_: | SPDT |
| G2RL2_: | DPDT |
| Contact Material: | AgSnIn |
| Rated Current | |
| G2RL1_: | 12A |
| G2RL1E_: | 16A |
| G2RL2_: | 8A |
| Max. Switching Voltage: | 440V AC / 300V DC |
| Max. Switching Power | |
| G2RL1_: | 3000VA |
| G2RL1E_: | 4000VA |
| G2RL2_: | 2000VA |
| Creepage/Clearance: | 8/8mm |
| Operate/Release Time: | 15/5ms |
| Testing Voltage | |
| Coil/Contact: | 5000V AC |
| Contact/Contact | |
| G2RL1_: | 1000V AC |
| G2RL2_: | 2500V AC |
| Lifetime Mechanical: | 20x106 Operations |
| Operating Temperature: | -40...+85°C |
| Weight Approx.: | 12g |
| |
| Coil Data |
| Part Nr. | UN | Umax. | UAn | UAb | IN | PN | RN |
| [V DC] | [V] | [V] | [V] | [mA] | [mW] | [W] | |
| G2RL_-12 | 12 | 15,6 | 8,4 | 1,2 | 33,33 | 400 | 360 |
| G2RL_-24 | 24 | 31,2 | 16,4 | 2,4 | 16,7 | 400 | 1440 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 23°C | |||||||
| |||||||
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quanity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.europe.omron.com |
|
Inkl. moms
Kr. 25,88
- v/10 – Kr. 21,59
- v/25 – Kr. 18,83
- v/100 – Kr. 17,31
- v/1000 – Kr. 15,80
Produktfiler
