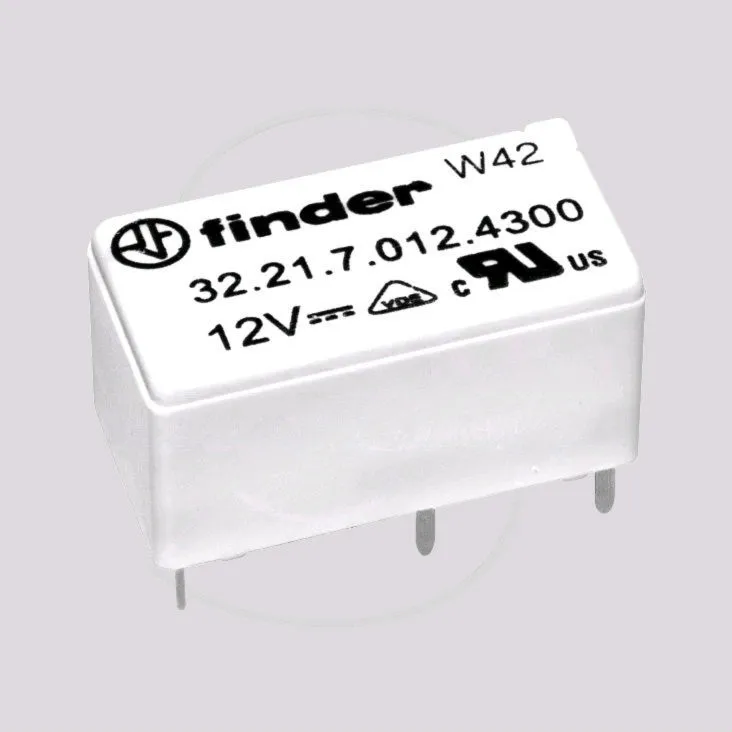

Relay SPDT 6A 12V 720R
Varenummer:
88-624
Varekode: F3221-12U
Vægt: 6 g
7 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 110 stk. kan skaffes onsdag d. 21/10
Gruppe:
E6337
FINDER Power PCB Relays
Series: 32.21
Contact: SPDT or SPST-NO
Rated Current: 6A
Housing: 20,3x10,2x10,7mm
FINDER Power PCB Relays
Series: 32.21
Contact: SPDT or SPST-NO
Rated Current: 6A
Housing: 20,3x10,2x10,7mm
| Features |
| Small power relay in Dual-In-Line design Sensitive coil 200mV Base insulated in accordance with VDE0435 Relay protection: RT III (watertight) |
 |
| Technical Specifications |
| |
| Contact | |
| F3221-_A: | SPST-NO |
| F3221-_U: | SPDT |
| Contact Material: | AgCdO2 |
| Rated Current: | 6A |
| Max. Switching Current: | 15A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power | |
| AC1: | 1500VA |
| AC15 (230V AC): | 250VA |
| Operate/Release Time | |
| F3221-_A: | 6/2ms |
| F3221-_U: | 6/4ms |
| Testing Voltage | |
| Coil/Contact: | 4000V AC |
| Opening Contact: | 1000V AC |
| Lifetime | |
| Mechanical: | 20x106 Operations |
| Electrical: | 10x104 Operations |
| Operating Temperature: | -40...+85C |
| |
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN |
| [V DC] | [V] | [V] | [mA] | [mW] | [W] | |
| F3221-12A | 12 | 9,4 | 18 | 16 | 200 | 720 |
| F3221-24A | 24 | 18,7 | 36 | 8,3 | 200 | 2880 |
| F3221-12U | 12 | 9,4 | 18 | 16 | 200 | 720 |
| F3221-24U | 24 | 18,7 | 36 | 8,3 | 200 | 2880 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20C | ||||||
| ||||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
Inkl. moms
Kr. 30,00
- v/10 – Kr. 22,50
- v/25 – Kr. 18,75
- v/100 – Kr. 15,00
- v/1000 – Kr. 11,25
