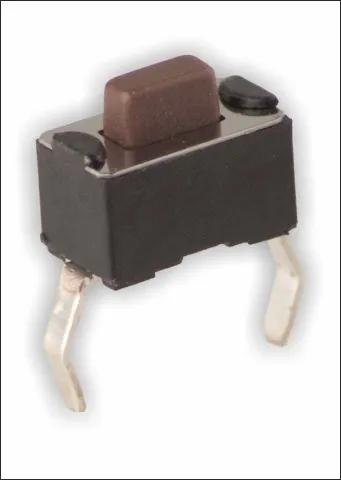

Tact Switch PC Horizontal 5,0mm 1,6N
Varenummer:
88-555
Varekode: DTS32N
Vægt: 0 g
83 stk.
på lager
DIPTRONICS Tact Switches
Series: DTS3
Dimensions: 3,5x6mm
Operating Force: 1,6N
| Features |
| • Single pole input key with an SPST-NO contact • Prevents formed terminal pins (snap-in) falling out • For PCB assembly • Particularly small dimensions • Data and signal technology, measuring and controlling, membrane keyboards |
 |
| Technical Specifications |
|
|
| Switching Voltage, Max.: | 12V DC |
| Switching Current, Max.: | 50mA |
| Test Voltage, 1min.: | 250V AC |
| Operating Life with Switching Capacity: | 50,000 Operations |
| Contact Resistance, Max.: | 100mW |
| Insulation Resistance, Min.: | 100MW/500V DC |
| Switching Type: | 1 NO Contact |
| Operating Force: | 1,6N |
| Operating Path: | 0,25mm +0,2, -0,1 |
| Insulation Material: | Thermoplastic Nylon, UL94V-0 |
| Contact Surface: | Spring Steel, Silver-plated |
| Solder Temperature and Duration, Max.: | 260°C for 5s |
| Operating Temperature: | -25...+70°C |
|
|
| Dimensions |
| Part Nr. | H | |
| [mm] | ||
| DTS31N | 4,3 ±0,2 | |
| DTS32N | 5,0 ±0,2 | |
|
||
Inkl. moms
Kr. 9,73
- v/10 – Kr. 6,11
- v/25 – Kr. 3,42
- v/100 – Kr. 2,19
- v/1000 – Kr. 1,25
