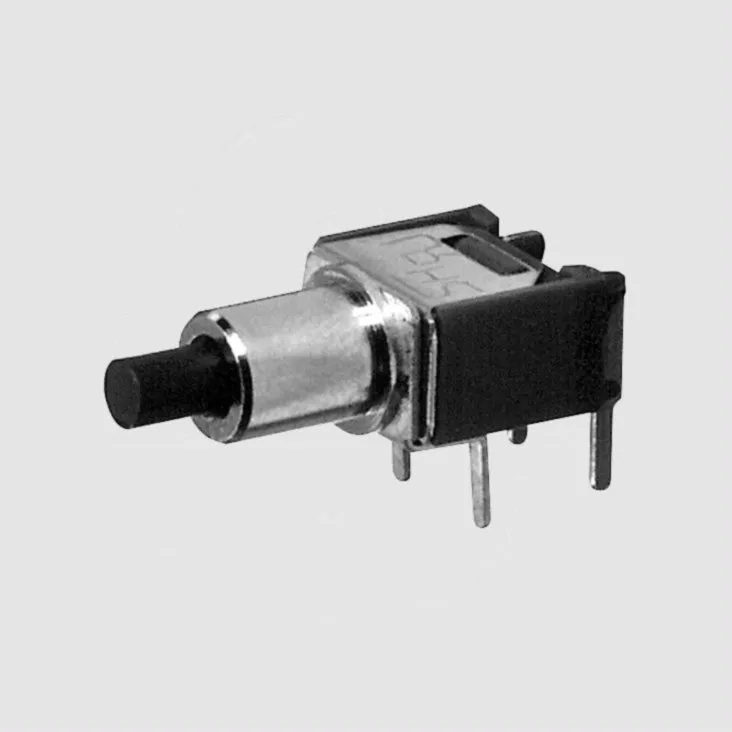

Momentary Switch SPST 120V 1A HorizPrint
Varenummer:
88-503
Varekode: SDT21LP
Vægt: 1 g
6 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 7155 stk. kan skaffes søndag d. 1/11
Gruppe:
E3152
SALECOM Pushbutton Momentary Switches
Series: TS-40-P
Contact: SPST-NO
SALECOM Pushbutton Momentary Switches
Series: TS-40-P
Contact: SPST-NO
| Features |
| • Pushbutton momentary switch with print or solder terminals • sealed against dirt and fluxing agent • suitable for use in applications where space is very limited |
 |
| Technical Specifications |
| |
| Switching Capacity: | 1A/120V AC or 28V DC |
| Switching Cycles under Load: | 60000 |
| Contact Resistance: | 20mW |
| Insulation Resistance: | 1000MW |
| Dielectric Strength: | 1000Veff |
| Operating Temperature: | -30...+85°C |
| Contacts: | Brass, Silver-plated |
| Terminals: | Brass, Silver-plated |
| Sealing: | Epoxy |
| Shell Material: | Diallylphthalate (DAP) |
| |
| Approvals |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces Delivery contents SDT21S, SDT21SP: 2 nuts, toothed disk |
|
| Manufacturer |
| Salecom http://www.salecom.com.tw |
|
Inkl. moms
Kr. 27,94
- v/5 – Kr. 20,95
- v/25 – Kr. 13,97
- v/100 – Kr. 11,87
- v/1000 – Kr. 9,08
Produktfiler
Momentary Switch SPST 120V 1A HorizPrint
88-503
/ SDT21LP
6 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem søndag d. 1/11
Gruppe:
E3152
SALECOM Pushbutton Momentary Switches
Series: TS-40-P
Contact: SPST-NO
SALECOM Pushbutton Momentary Switches
Series: TS-40-P
Contact: SPST-NO
| Features |
| • Pushbutton momentary switch with print or solder terminals • sealed against dirt and fluxing agent • suitable for use in applications where space is very limited |
|
| Technical Specifications |
| |
| Switching Capacity: | 1A/120V AC or 28V DC |
| Switching Cycles under Load: | 60000 |
| Contact Resistance: | 20mW |
| Insulation Resistance: | 1000MW |
| Dielectric Strength: | 1000Veff |
| Operating Temperature: | -30...+85°C |
| Contacts: | Brass, Silver-plated |
| Terminals: | Brass, Silver-plated |
| Sealing: | Epoxy |
| Shell Material: | Diallylphthalate (DAP) |
| |
| Approvals |
| |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces Delivery contents SDT21S, SDT21SP: 2 nuts, toothed disk |
|
| Manufacturer |
| Salecom http://www.salecom.com.tw |
|
