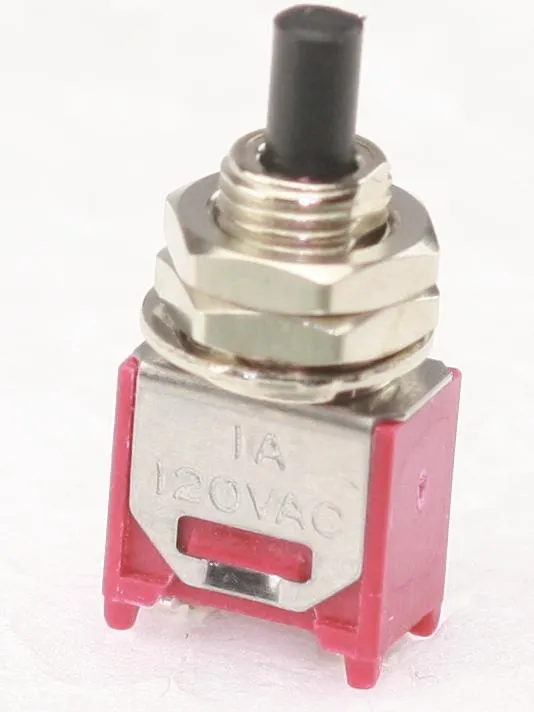

Momentary Switch SPST 120V 1A Vert Print
Varenummer:
88-502
Varekode: SDT21SP
Vægt: 2 g
1 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 2800 stk. kan skaffes tirsdag d. 27/10
Gruppe:
E3152
SALECOM Pushbutton Momentary Switches
Series: TS-40-P
Contact: SPST-NO
SALECOM Pushbutton Momentary Switches
Series: TS-40-P
Contact: SPST-NO
| Features |
| • Pushbutton momentary switch with print or solder terminals • sealed against dirt and fluxing agent • suitable for use in applications where space is very limited |
 |
| Technical Specifications |
| |
| Switching Capacity: | 1A/120V AC or 28V DC |
| Switching Cycles under Load: | 60000 |
| Contact Resistance: | 20mW |
| Insulation Resistance: | 1000MW |
| Dielectric Strength: | 1000Veff |
| Operating Temperature: | -30...+85°C |
| Contacts: | Brass, Silver-plated |
| Terminals: | Brass, Silver-plated |
| Sealing: | Epoxy |
| Shell Material: | Diallylphthalate (DAP) |
| |
| Approvals |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces Delivery contents SDT21S, SDT21SP: 2 nuts, toothed disk |
|
| Manufacturer |
| Salecom http://www.salecom.com.tw |
|
