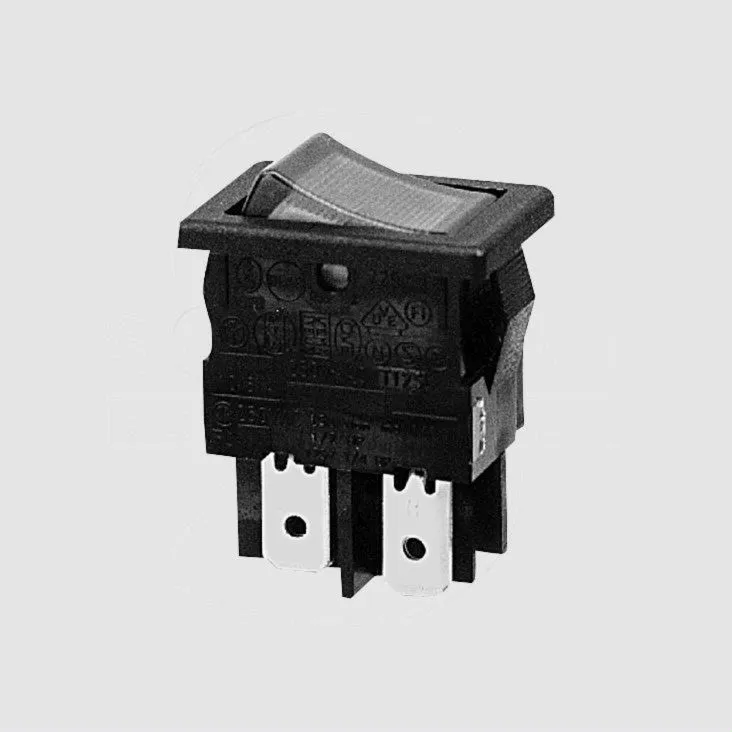

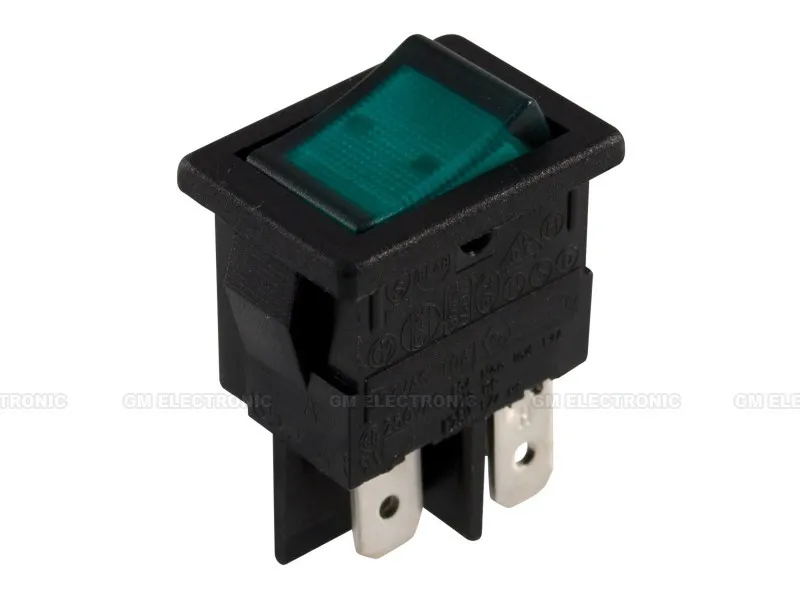

Vippeafbryder 2xON/OFF 10A med GRØN lys
Varenummer:
88-422
Varekode: H8553VB-GN
Vægt: 5 g
20 stk.
på lager
Gruppe:
E2111
ARCOLECTRIC Rocker Switches
Series: 8500
Panel Cut-out: 13x19mm
Inrush Current: 85A
ARCOLECTRIC Rocker Switches
Series: 8500
Panel Cut-out: 13x19mm
Inrush Current: 85A
| Features |
| • For 13x19mm panel cut-out • 1 and 2-pole design • With connector 4,8x0,8mm |
 |
| Selection Table |
| Part Nr. | Function | Shell | Rocker | Impress |
| H8500VB01 | 1 x On/Off | Black | Black | I/O |
| H8550VB01 | 2 x On/Off | Black | Black | I/O |
| H8553VB-RT | 2 x On/Off | Black | Illuminated Red | - |
| H8553VB-GN | 2 x On/Off | Black | Illuminated Green | - |
| ||||
| Technical Specifications |
| |
| Operating Voltage, Max.: | 250V AC |
| Switching Current, Max.: | 10A |
| Switching Current at Inductive Load, Max.: | 6A |
| Inrush Current (EN61058-1): | 85A |
| Ambient Temperature, Max. | |
| H8500VB01, H8550VB01: | 125°C |
| H8553VB-_: | 100°C |
| Insulation Resistance: | >20MW |
| Contact Resistance | |
| (New State, 12V DC/1A): | 100mW |
| Contact Gap: | 3mm |
| Soldering Conditions (Hand Soldering): | 350°C/6s |
| Materials | |
| Shell and Rocker: | Nylon 6.6 |
| Illuminated Rocker: | Polycarbonate |
| Current-carrying Part: | Cu Alloy |
| Contacts: | Silver-plated |
| Flammability Class: | UL94V2 |
| |
| Panel Cut-out |
| Panel Thickness | X | Y |
| [mm] | [mm] | [mm] |
| 0,75...1,25 | 19,1...19,2 | 12,9 |
| 1,25...2,00 | 19,3...19,4 | 12,9 |
| 2,00...3,00 | 19,7...19,8 | 12,9 |
| ||
| Note |
| You will find suitable flat receptacles in product group F1315. |
|
| Approvals |
 15: 10 (6)A, 250Vac, T125Illuminated parts 15: 10 (6)A, 250Vac, T100  15A Non Ind 250Vac, 14A Ind 250Vac, 10A 277Vac 250Vac 1/2hp, 125Vac 1/4hp 105°C, file E45221, file LR10990 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.arcolectric.com |
|
