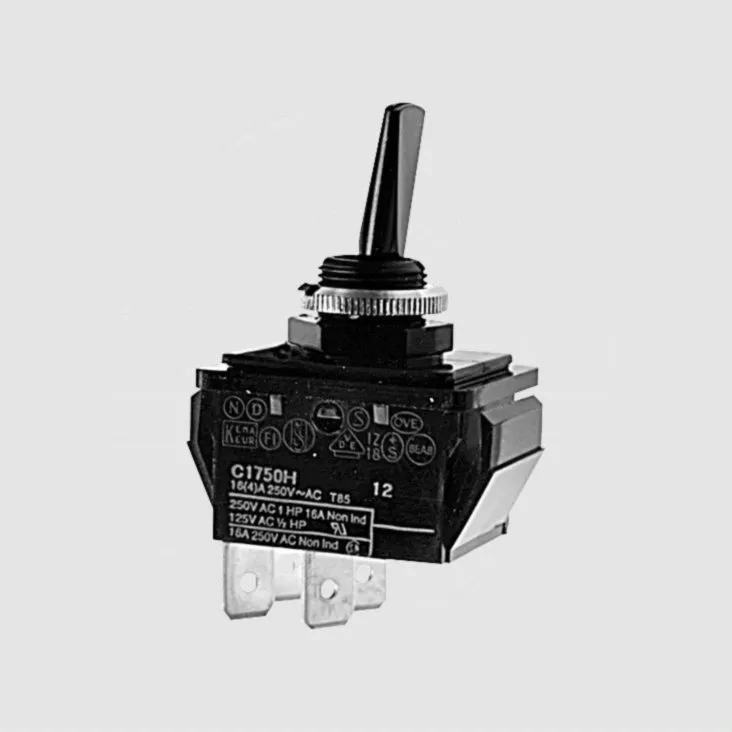

Toggle Switch 2-pol ON/OFF 16A/250V Black
Varenummer:
88-416
Varekode: C1750HOSW
Vægt: 15 g
4 stk.
på lager
Gruppe:
E2311
ARCOLECTRIC Toggle Switches
Series: 1700, 1750
With Plastic Lever
Panel Cut-out: 12,7mm
Inrush Current: 36A
ARCOLECTRIC Toggle Switches
Series: 1700, 1750
With Plastic Lever
Panel Cut-out: 12,7mm
Inrush Current: 36A
| Features |
| For central mounting Black plastic rocker arm Approved up to 250V/16A |
 |
| Selection Table |
| Part Nr. | Nr. of Poles | Function |
| C1700HOSW | 1-Pole | 1 x On/Off |
| C1710HOSW | 1-Pole | 1 x On/On |
| C1720HOSW | 1-Pole | On-Off-On |
| C1750HOSW | 2-Pole | 2 x On/Off |
| ||
| Technical Specifications |
| |
| Operating Voltage, Max.: | 250V AC |
| Switching Current, Max.: | 16A |
| Switching Current at Inductive Load, Max.: | 4A |
| Inrush Current (EN61058-1): | 36A |
| Ambient Temperature, Max.: | 85C |
| Insulation Resistance: | >20MW |
| Contact Resistance | |
| (New State, 12V DC/1A): | 100mW |
| Contact Opening Width | |
| C1700HOSW, C1750HOSW: | 3mm |
| C1710HOSW, C1720HOSW: | 3mm |
| Soldering Conditions (Hand Solder): | 350C/6s |
| Material | |
| Shell and Lever: | Nylon 6.6 |
| Current-carrying Part: | Cu Alloy |
| Contacts: | Silver-plated |
| Flammability Class: | UL94V2 |
| |
| Panel Cut-out |
| Wall Strength | Cut-out | |
| [mm] | [mm] | |
| 3,5 (with 2 Nuts) | 12,7 | |
| 6,5 (with 1 Nut) | 12,7 | |
| ||
| Note |
| You will find suitable flat receptacles in product group F1315. |
|
| Approvals |
 15: 16 (4)A, 250Vac, T85 20A 250Vac Non Ind (single pole) 16A 250Vac Non Ind (double pole)  (2pos types) 250Vac 1hp, 125Vac 1/2hp (3pos types) 250Vac 1/2hp, 125Vac 1/4hp 16A 250Vac Non Ind 85C, file E45221, file LR10990 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.arcolectric.com |
|
Inkl. moms
Kr. 46,63
- v/10 – Kr. 39,97
- v/25 – Kr. 38,52
- v/100 – Kr. 35,00
