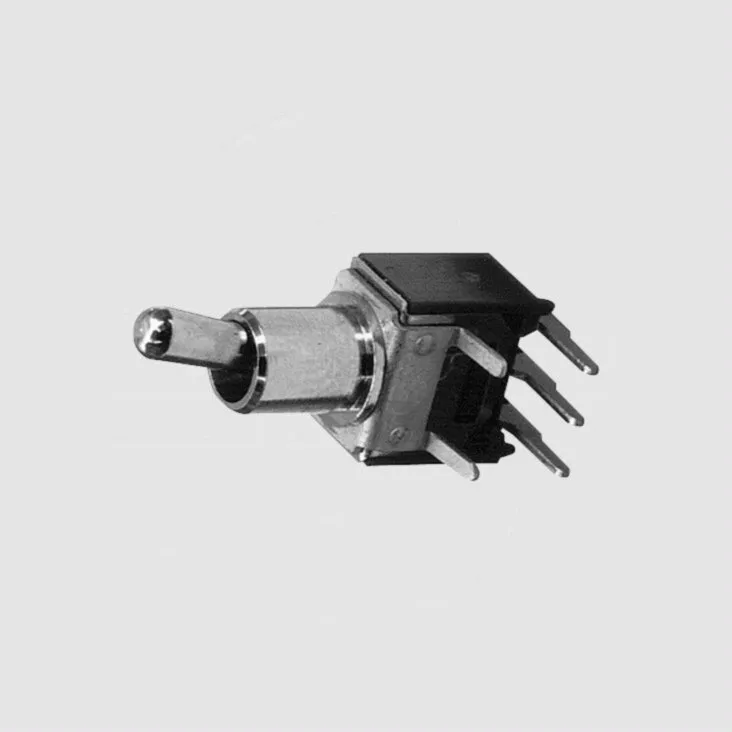

Toggle Switch 1-pol ON/ON for print
Varenummer:
88-408
Varekode: SKS06LP
Vægt: 1 g
3 stk.
på lager
Bestil nu for afsendelse mandag d. 19/10
Yderligere 1230 stk. kan skaffes fredag d. 30/10
Gruppe:
E2337
SALECOM Toggle Switches
Series: TS40-T
With Metal Lever
Panel Cut-out: 4,95mm
E2337
SALECOM Toggle Switches
Series: TS40-T
With Metal Lever
Panel Cut-out: 4,95mm
| Features |
| Miniature tiny toggle switches with print or solder terminals Sealed to prevent dirt and flux Suitable for use in applications with limited space |
 |
| Technical Specifications |
| |
| Switching Capacity | |
| SKS04_, SKS07SP: | 28V DC/3A |
| SKS06LP, SKS08LP: | 0,4VA at 20V AC/DC |
| Switching Cycle Under Load: | 30.000 |
| Contact Resistance: | 20mW |
| Insulation Resistance: | 1,000MW |
| Dielectric Strength: | 1,000Veff |
| Operating Temperature: | -30...+85C |
| Contacts and Terminals | |
| SKS04_, SKS07SP: | Brass, Silver-plated |
| SKS06LP, SKS08LP: | Brass, Gold-plating over Nickel |
| Terminal Seal: | Epoxy |
| Operate: | Brass, Chrome-plating |
| Shell Material: | Diallylphthalat (DAP) |
| |
| Approvals |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Delivery contents SKS04S: nut, securing ring, toothed disk |
|
| Manufacturer |
| Salecom http://www.salecom.com.tw |
|
Inkl. moms
Kr. 19,00
- v/10 – Kr. 16,50
- v/50 – Kr. 14,00
- v/100 – Kr. 12,75
Produktfiler
