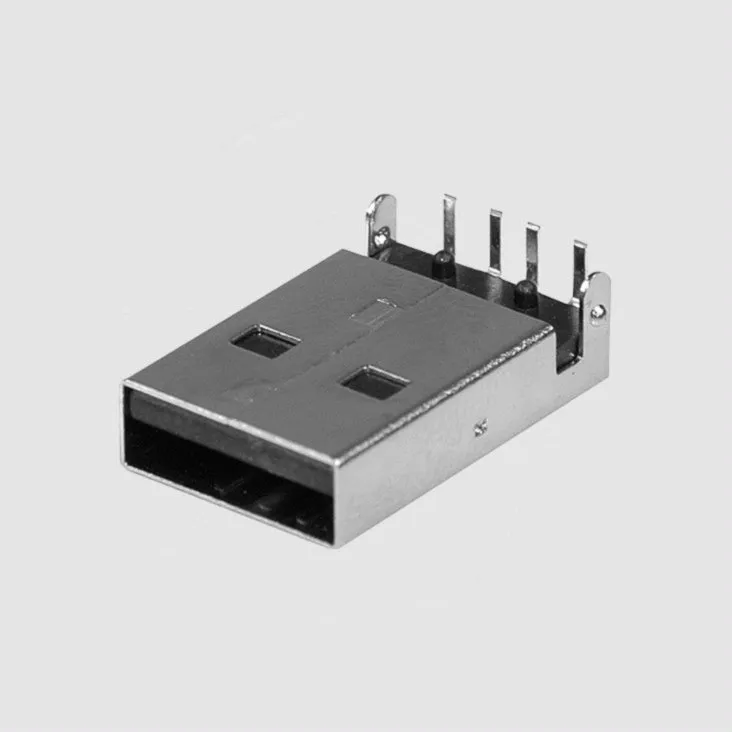

USB Jack A Print 90° Low Profile
Varenummer:
88-360
Varekode: USB-ALP
Vægt: 2 g
42 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 8543 stk. kan skaffes torsdag d. 29/10
Gruppe:
F4412
USB Mounting Jacks
Series: USB-_P
Angled
USB Mounting Jacks
Series: USB-_P
Angled
| Features |
| • USB A and B type for PCB mounting • 90° angled • Solder version |
 |
| USB-AP, USB-BP |
| USB A- and B-Jacks |
|
| Technical Specifications |
| |
| Insulator: | PBT |
| Contacts | |
| USB-AP: | Brass |
| USB-BP: | Phosphor Bronze |
| Rated Current: | 1A |
| Breakdown Voltage, 1 Min.: | 1000V AC |
| Insulation Resistance: | >1000MW |
| Temperature Range: | -55...+105°C |
| |
| USB-ALP |
| USB A-Jack Connector, Low Profile |
|
| Technical Specifications |
| |
| Insulator: | Nylon PA9T |
| Contacts: | Phosphor Bronze |
| Rated Current: | 1,5A |
| Breakdown Voltage, 1 Min.: | 500V AC |
| Insulation Resistance: | >1000MW |
| Temperature Range: | -55...+85°C |
| |
| USB-2AP |
| USB Jacks, 2xA |
|
| Technical Specifications |
| |
| Insulator: | PBT |
| Contacts: | Phosphor Bronze |
| Rated Current: | 1,5A |
| Breakdown Voltage, 1 Min.: | 500V AC |
| Insulation Resistance: | >1000MW |
| Temperature Range: | -55...+85°C |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| Various |
|
Inkl. moms
Kr. 21,23
- v/10 – Kr. 13,27
- v/30 – Kr. 7,96
- v/100 – Kr. 5,31
- v/1000 – Kr. 3,98
