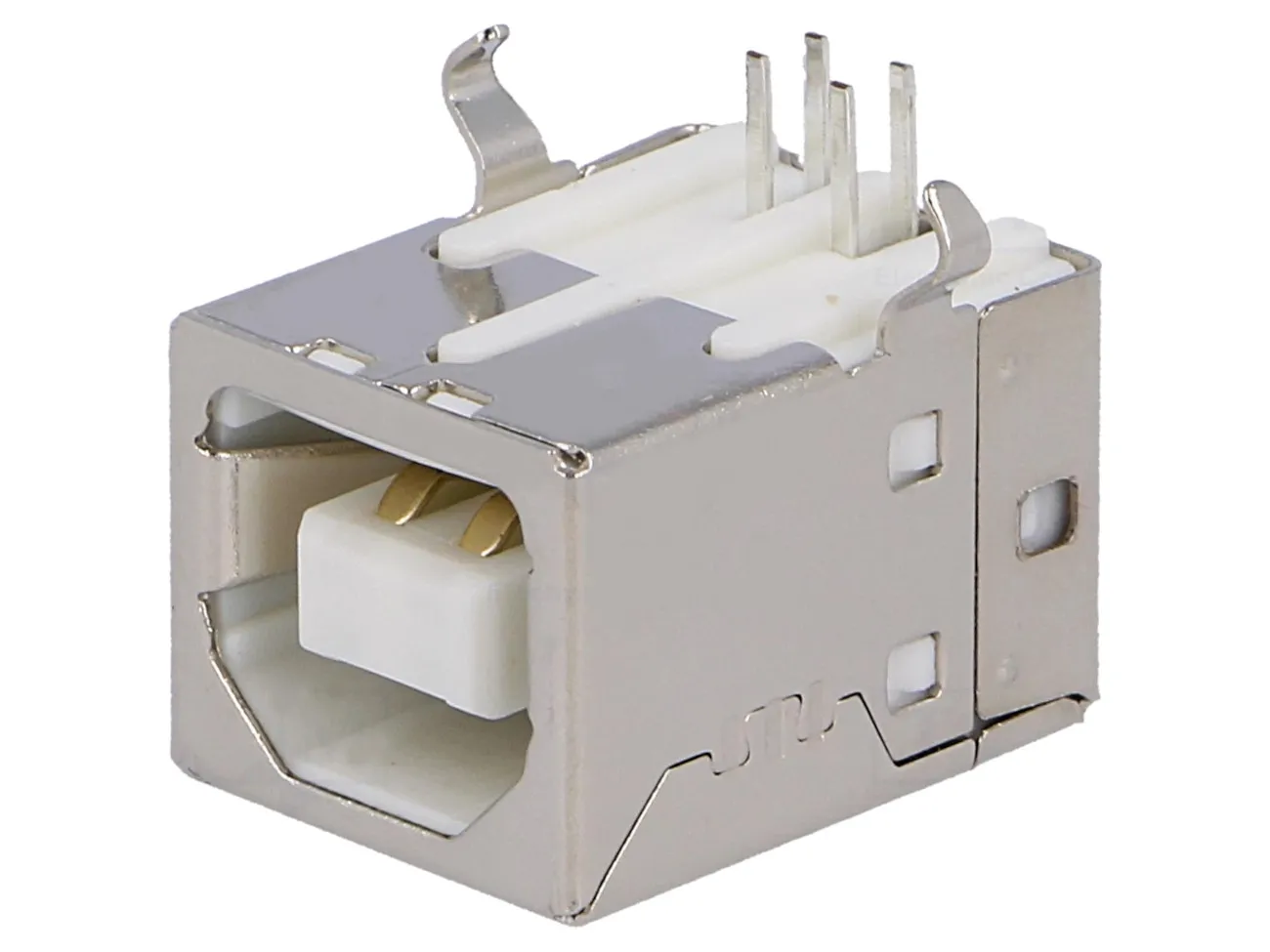

USB Jack B Print 90°
Varenummer:
88-359
Varekode: USB-BP
Vægt: 5 g
85 stk.
på lager
Gruppe: F4412
USB Mounting Jacks
Series: USB-_P
Angled
| Features |
| • USB A and B type for PCB mounting • 90° angled • Solder version |
 |
| USB-AP, USB-BP |
| USB A- and B-Jacks |
|
| Technical Specifications |
|
|||||||||||||||||
| Insulator: | PBT | Contacts | USB-AP: | Brass | USB-BP: | Phosphor Bronze | Rated Current: | 1A | Breakdown Voltage, 1 Min.: | 1000V AC | Insulation Resistance: | >1000MW | Temperature Range: | -55...+105°C | |||
|
|||||||||||||||||
| USB-ALP |
| USB A-Jack Connector, Low Profile |
|
| Technical Specifications |
|
|||||||||||||
| Insulator: | Nylon PA9T | Contacts: | Phosphor Bronze | Rated Current: | 1,5A | Breakdown Voltage, 1 Min.: | 500V AC | Insulation Resistance: | >1000MW | Temperature Range: | -55...+85°C | ||
|
|||||||||||||
| USB-2AP |
| USB Jacks, 2xA |
|
| Technical Specifications |
|
|||||||||||||
| Insulator: | PBT | Contacts: | Phosphor Bronze | Rated Current: | 1,5A | Breakdown Voltage, 1 Min.: | 500V AC | Insulation Resistance: | >1000MW | Temperature Range: | -55...+85°C | ||
|
|||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| Various |
|
Inkl. moms
Kr. 15,09
- v/10 – Kr. 12,40
- v/25 – Kr. 10,19
- v/100 – Kr. 8,46
- v/1000 – Kr. 5,09
