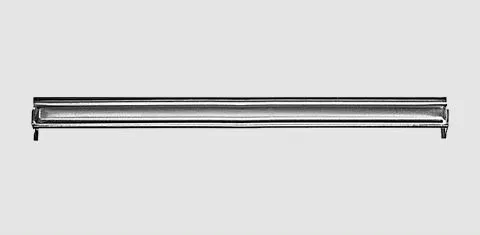

IDC Female A+C 64-pole for Fladkabel
Varenummer:
88-333
Varekode: FL64PCF
Vægt: 19 g
46 stk.
på lager
Bestil nu for afsendelse i morgen
Gruppe:
F5158
CONEC Female Connectors DIN 41.612
Series: FL_PCF
IDC for Flat Cables
Pitch: 2,54mm
F5158
CONEC Female Connectors DIN 41.612
Series: FL_PCF
IDC for Flat Cables
Pitch: 2,54mm
| Features |
| For flat cable connections using IDC technique Assembled rows a and c |
 |
| Technical Specifications |
| |
| Insulation Shell: | Polyamide (UL94V-0) |
| Contact Material: | CuSn |
| Contact Surface (Class 3): | Gold Over Nickel |
| Operating Current: | 1,5A |
| Operating Voltage: | 330V AC/479V DC |
| Test Voltage: | 1000V |
| Contact Resistance: | £15mW |
| Insulation Resistance: | ³1012W |
| |
| Note |
| FL64ZE strain relief must be ordered separately. Flat cables see at product group G1833. Suitable IDC crimping fixtures availabe in our red "Components & Devices" catalogue at product group T4651. |
|
| Additional Products |
| Class 1 and 2 available on request, delivery time approx. 4 weeks. |
|
| FL64ZE |
| Strain relief for FL64CF |
|
| Note |
| Must be ordered separately |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Produktfiler
IDC Female A+C 64-pole for Fladkabel
88-333
/ FL64PCF
46 stk.
på lager
Bestil nu for afsendelse i morgen
Kontakt os for at få oplyst leveringstid
Gruppe:
F5158
CONEC Female Connectors DIN 41.612
Series: FL_PCF
IDC for Flat Cables
Pitch: 2,54mm
F5158
CONEC Female Connectors DIN 41.612
Series: FL_PCF
IDC for Flat Cables
Pitch: 2,54mm
| Features |
| For flat cable connections using IDC technique Assembled rows a and c |
|
| Technical Specifications |
| |
| Insulation Shell: | Polyamide (UL94V-0) |
| Contact Material: | CuSn |
| Contact Surface (Class 3): | Gold Over Nickel |
| Operating Current: | 1,5A |
| Operating Voltage: | 330V AC/479V DC |
| Test Voltage: | 1000V |
| Contact Resistance: | £15mW |
| Insulation Resistance: | ³1012W |
| |
| Note |
| FL64ZE strain relief must be ordered separately. Flat cables see at product group G1833. Suitable IDC crimping fixtures availabe in our red "Components & Devices" catalogue at product group T4651. |
|
| Additional Products |
| Class 1 and 2 available on request, delivery time approx. 4 weeks. |
|
| FL64ZE |
| Strain relief for FL64CF |
|
| Note |
| Must be ordered separately |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| |
| http://www.conec.com |
|
