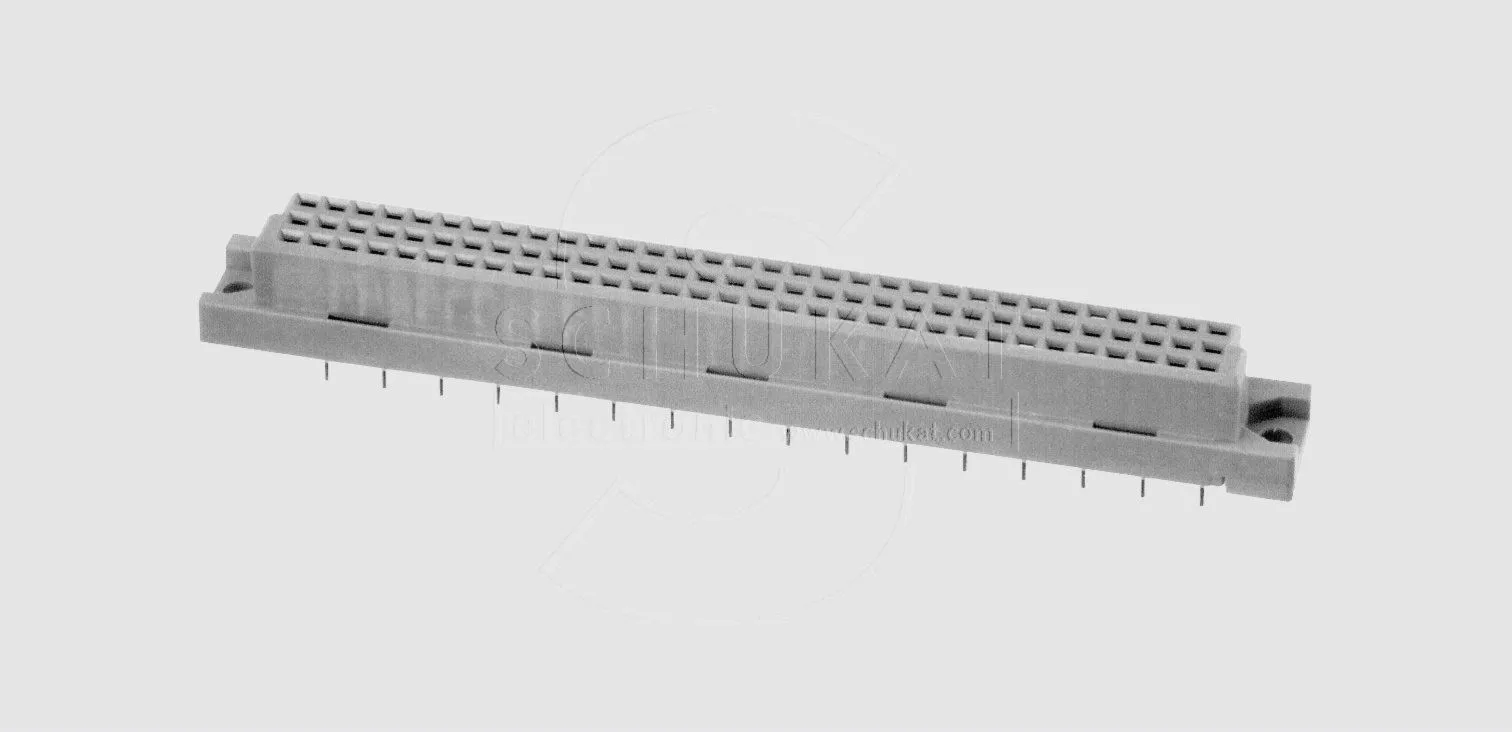

Female A+B+C Pitch=2,54 96-Pole
Varenummer:
88-332
Varekode: FL96P
Vægt: 16 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem søndag d. 1/11
Gruppe:
F5155
CONEC Female Connectors DIN 41.612
Series: FL_P
Straight Solder Pins
Type: C
Pitch: 2,54mm, 5,08mm
CONEC Female Connectors DIN 41.612
Series: FL_P
Straight Solder Pins
Type: C
Pitch: 2,54mm, 5,08mm
| Technical Specifications |
 | |
| Insulation Shell: | Glass Filled Polyamide (PBT), (UL94V-0) |
| Contact Material: | Copper Alloy |
| Contact Surface (Class 3): | Hard Gold |
| Mating and Withdraw Force | |
| 32-Pole: | £30N |
| 64-Pole: | £60N |
| 96-Pole: | £90N |
| Air and Creepage: | ³1,2mm |
| Operating Voltage: | 250V AC1) |
| Test Voltage Ueff (Contact/Contact): | 1kV |
| Operating Current at Ambient Temperature | |
| +20C: | 2A |
| +70C: | 1A |
| +100C: | 0,5A |
| Contact Resistance: | £20mW |
| Insulation Resistance: | ³1011W |
| Temperature Range: | -55...+125C |
| Class: | 3 = 50 Cycles |
| 1) Insulation Group A, VDE 0110 | |
| |

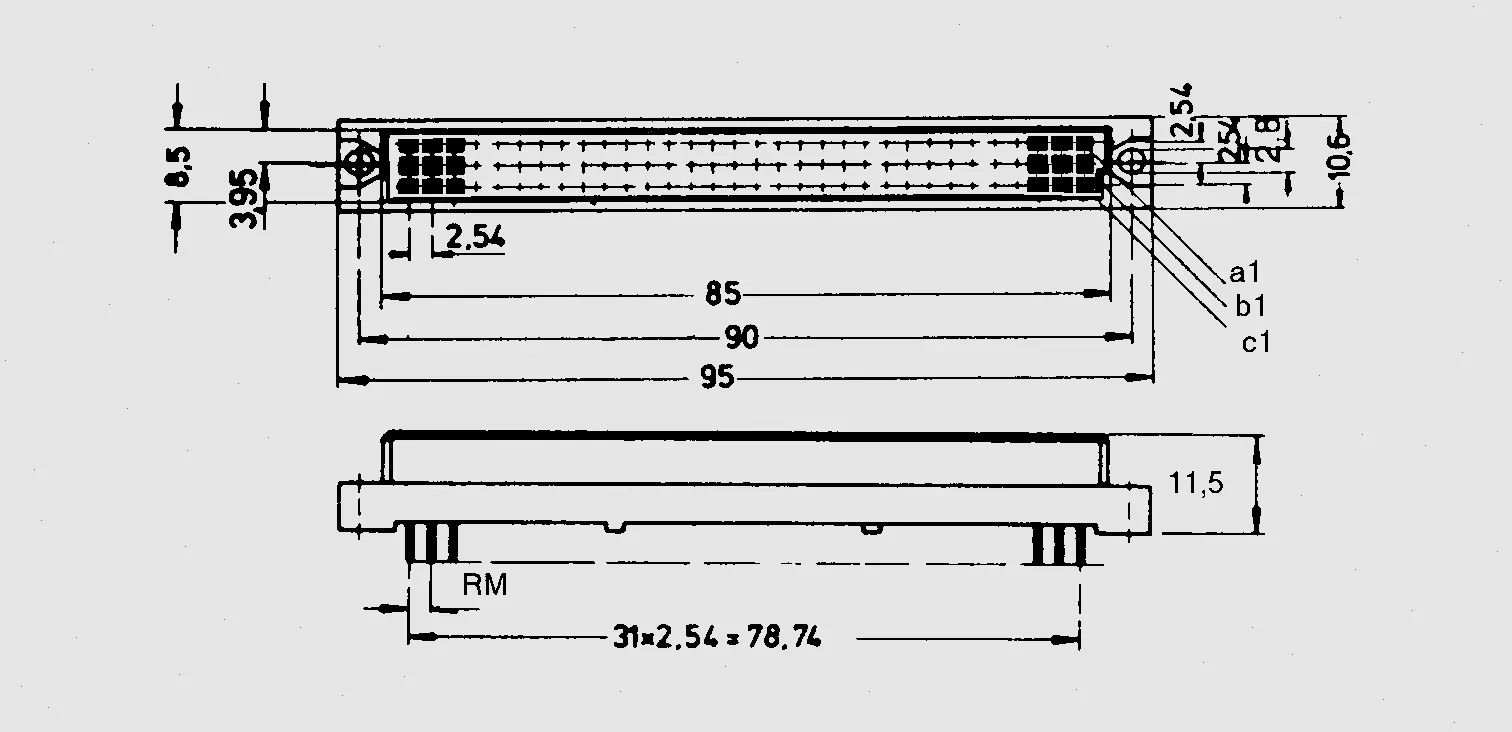

| Construction |
| Part Nr. | Nr. of Poles | Assembly | P |
| [mm] | |||
| FL32P | 32 | a + c | 5,08 |
| FL64P | 64 | a + c | 2,54 |
| FL96P | 96 | a + b + c | 2,54 |
| |||
| Note |
| FL32P is only suitable for CM32RW and SL32P, see product groups F5151 and F5152. |
|
| Additional Products |
| Class 1 and 2 available on request, delivery time approx. 4 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces FL96P: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
