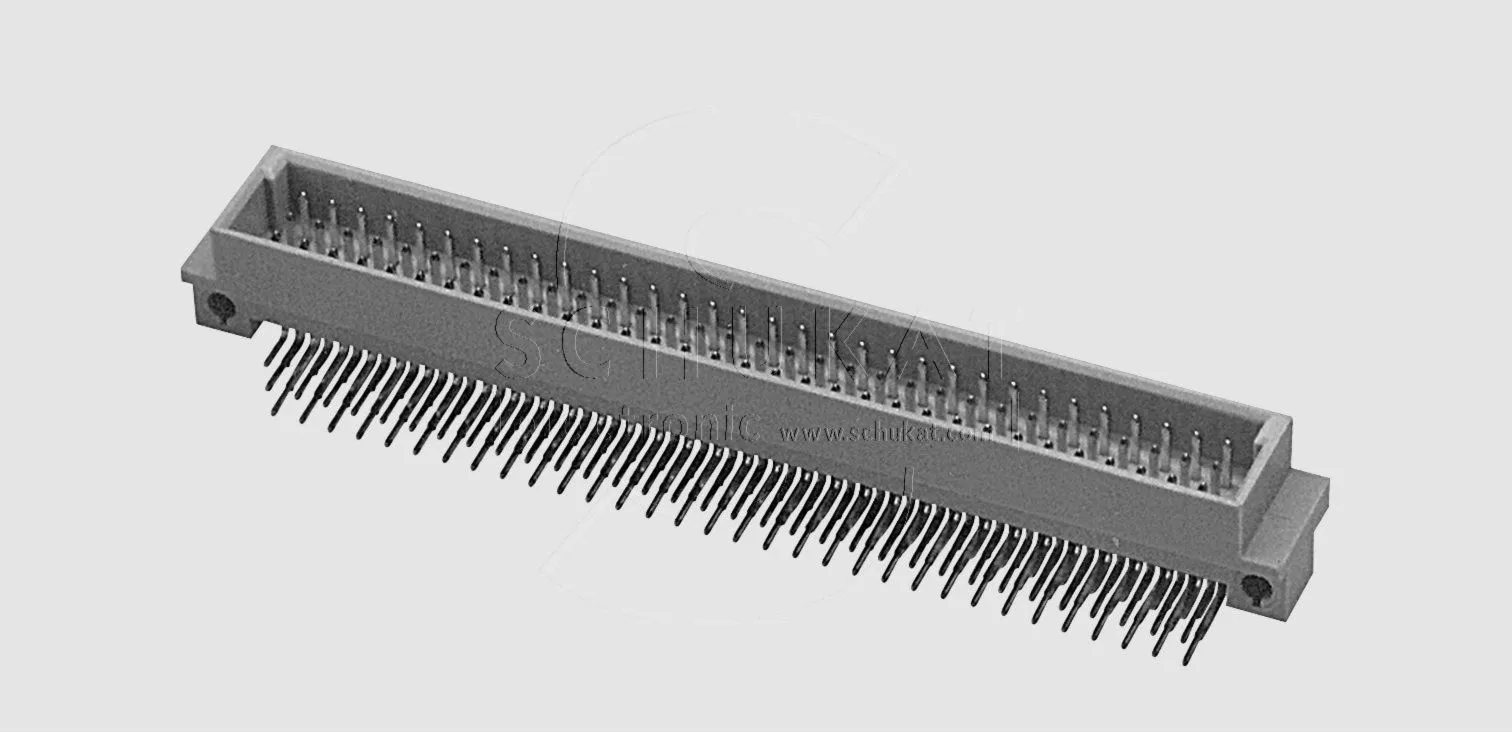

Male A+B+C Pitch2,54 96-Pole
Varenummer:
88-319
Varekode: CM96RW
Vægt: 16 g
11 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 8590 stk. kan skaffes søndag d. 1/11
Gruppe: F5151
APFEL Male Connectors DIN 41.612
ERNI Male Connector 434325/0000
ERNI Male Connector STV-C96-M-abc
Series: CM
Angled Solder Pins
Type: C
Pitch: 2,54mm, 5,08mm
| Technical Specifications |
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Insulation Shell: | Glass Filled Polyamide (PBT), (UL94V-0) | Contact Material | Male Connector: | Brass | Female Connector: | Copper Alloy | Contact Surface | Plug-in Side: | Gold Over Nickel | Solder Side: | Tin-plated | Mating and Withdraw Force, Max. | 32-Pole: | 30N | 64-Pole: | 60N | 96-Pole: | 90N | Air and Creepage, Min.: | 1,2mm | Operating Voltage: | 250V AC | Test Voltage | Between Contacts | P = 5,08: | 1550VRMS | P = 2,54: | 1000VRMS | Between Contacts and Shell: | 1550VRMS | Rated Current | 20°C: | 2A | 70°C: | 1A | 100°C: | 0,5A | Contact Resistance: | £20mW | After 400 Transmission Cycles: | £40mW | Insulation Resistance | Between Adjacent Contacts (100VAC): | ³1012W | Temperature Range: | -55...+125°C | Class: | 3 | |||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Construction |
| Part Nr. | Nr. of Poles | Assembly | P | [mm] | CM32RW | 32 | a + c1) | 5,08 | CM64RW | 64 | a + c | 2,54 | CM96RW | 96 | a + b + c | 2,54 | |||||||
| 1)All Straight Contacts | |||||||||||||||||||||||
|
|||||||||||||||||||||||
| Note |
| • CM32RW is only suitable for CF32TG and FL32P, see product groups F5154 and F5155. |
|
| Approvals |
 E149341 (250V, 2A) |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.apfel.com |
|
Inkl. moms
Kr. 31,50
- v/10 – Kr. 19,69
- v/25 – Kr. 15,75
- v/100 – Kr. 11,81
