IDC PC Connector Male 16-Pole
Varenummer:
88-239
Varekode: AMP215083-16
Vægt: 1 g
1 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 2310 stk. kan skaffes søndag d. 1/11
Gruppe:
F4321
TE Male PCB Connectors
Series: Micro-MaTch
IDC for Flat Cables
Pitch: 1,27mm
TE Male PCB Connectors
Series: Micro-MaTch
IDC for Flat Cables
Pitch: 1,27mm
| Features |
| For flat cable assembly AWG28 (see note) |
 |
| Technical Specifications |
| |
| Pitch: | 1,27mm |
| Housing Material: | Thermoplastic, Polyester, Glass-filled |
| Colour: | Red |
| Flammability: | UL94V-0 |
| Contact Material: | Phosphor Bronze |
| Contact Surface: | Tin-plated |
| Contact Resistance: | 1000MW |
| Insulation Resistance: | 10mW |
| Rated Voltage: | 230V |
| Rated Current: | 1,5A |
| Temperature Range: | -40...+105C |
| Mating Force Per Contact, Min./Max.: | 1N/5N |
| |

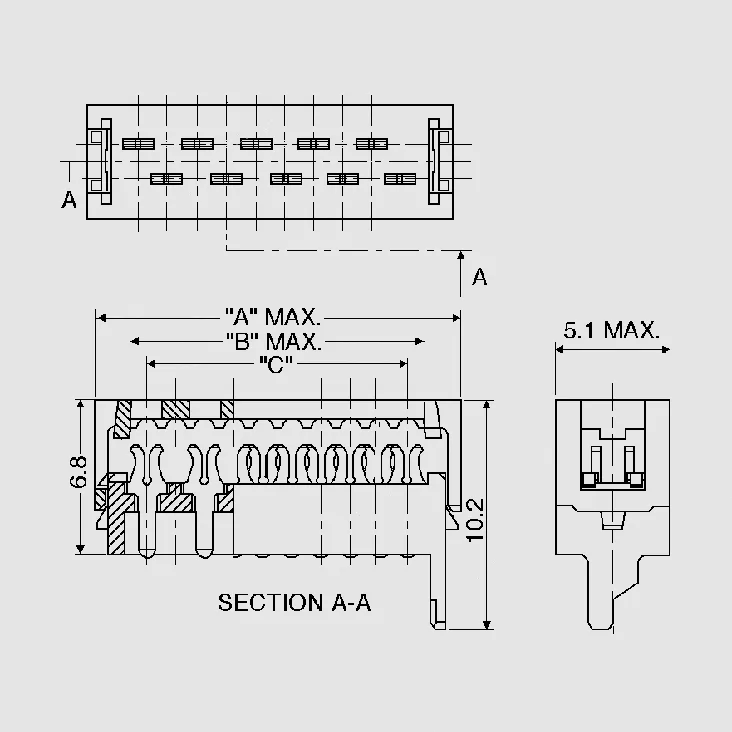

| Dimensions |
| Part Nr. | Nr. of Poles | A | B | C |
| [mm] | [mm] | [mm] | ||
| AMP215083-4 | 4 | 8,6 | 5,4 | 3,81 |
| AMP215083-6 | 6 | 11,1 | 8,0 | 6,35 |
| AMP215083-8 | 8 | 13,6 | 10,5 | 8,89 |
| AMP215083-10 | 10 | 16,2 | 13,0 | 11,43 |
| AMP215083-12 | 12 | 18,7 | 15,6 | 13,97 |
| AMP215083-14 | 14 | 21,3 | 18,1 | 16,51 |
| AMP215083-16 | 16 | 23,8 | 20,7 | 19,05 |
| AMP215083-20 | 20 | 28,9 | 25,7 | 24,13 |
| ||||
| Note |
| You will find suitable flat cables in product groups G1833 and G1837. You will find suitable Micro-MaTch ground indents for a PCB in product group F4325. |
|
| Approvals |
 E28473 Vol.23 Sec.4 |
|
| Additional Products |
| Suitable crimping tools AMP734155-1 with Micro-MaTch part AMP734024 available on request. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
