Pin Header 80-Pole Angled 2R (part.goldplated)
Varenummer:
88-160
Varekode: WSL080MZW
Vægt: 3 g
98 stk.
på lager
Gruppe: F2327
Pin Headers
Series: WSL_W
Double Row, Angled
Pitch: 2,54mm
| Features |
| • Tin-plated, part gold-plated or gold-plated design • Arbitrary mounting • ASL_: High-Quality Pin Headers |
 |
| Technical Specifications |
|
|
| Insulating Shell: | Thermoplastic, UL94V-0 |
| Contact Material: | Copper alloy |
| Contact Surface | |
| ASL_/WSL_ZW: | Tin-plated |
| ASL_TGW: | Part Gold-plated |
| ASL_GW: | Gold-plated |
| Rated Current: | 3A |
| Rated Voltage: | 250Vrms/V DC |
| Breakdown Voltage (1min.): | 500Vrms |
| Temperature Range: | -40...+105°C |
| Short Term (10s): | +260°C |
| Solderability ASL_: | IEC 68-2-20 Tb |
|
|
| Dimensions ASL_ |
|
|
| Pin Length, Complete (A): | 14,7mm |
| Pin Length, Plug-in Area (B): | 6,9mm |
| Pin Length, Solder Area (C): | 3,3mm |
| Pin Cross Section: | 0,635x0,635mm |
|
|

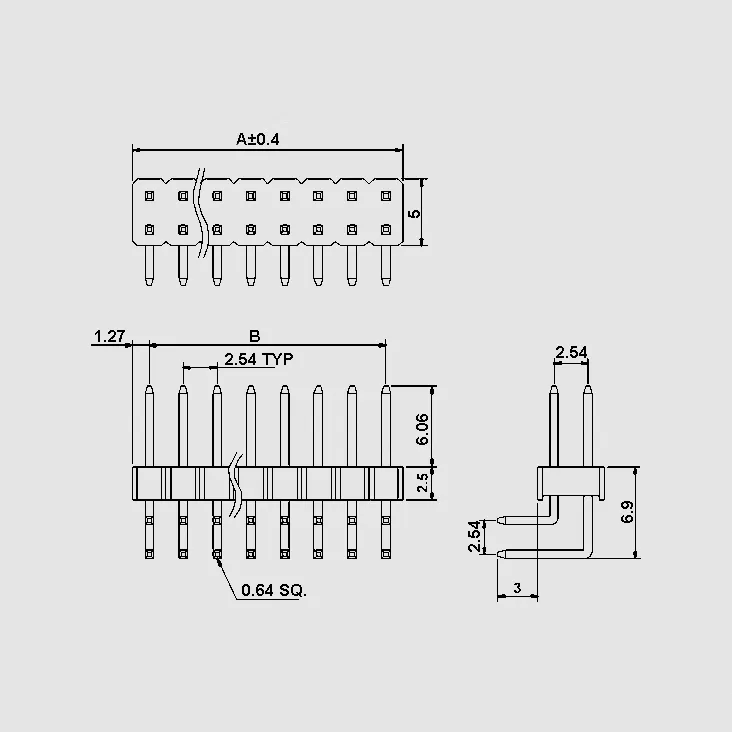

| Dimensions WSL_ |
|
|
| Pin Length, Complete (A): | 10,0mm |
| Pin Length, Plug-in Area (B): | 6,1mm |
| Pin Length, Solder Area (C): | 3,3mm |
| Pin Cross Section: | 0,635x0,635mm |
|
|
