Pin H. 1R 20-Pole 45,3mm Straight Zn
Varenummer:
88-150
Varekode: ASS02045Z
Vægt: 5 g
0 stk.
på lager
Gruppe:
F2311
MPE GARRY High-Quality Sandwich Pin Headers
Series: STL1
Single Row, Straight
Pitch: 2,54mm
MPE GARRY High-Quality Sandwich Pin Headers
Series: STL1
Single Row, Straight
Pitch: 2,54mm
| Features |
| Tin-plated version Arbitrary mounting |
 |
| Technical Specifications |
| |
| Insulation Shell: | Thermoplastic, UL94V-0 |
| Contact Material (DIN17660): | CuZn (brass) |
| Contact Surface: | Sn, lead-free |
| Insulation Resistance, Max.: | 40mW |
| Rated Current: | 3A |
| Rated Voltage: | 250VRMS/250V AC |
| Breakdown Voltage (1min.): | 500Vrms |
| Temperature Range: | -40...+105C |
| Short Term (10s): | +260C |
| Solderability: | IEC 68-2-20 Tb |
| |

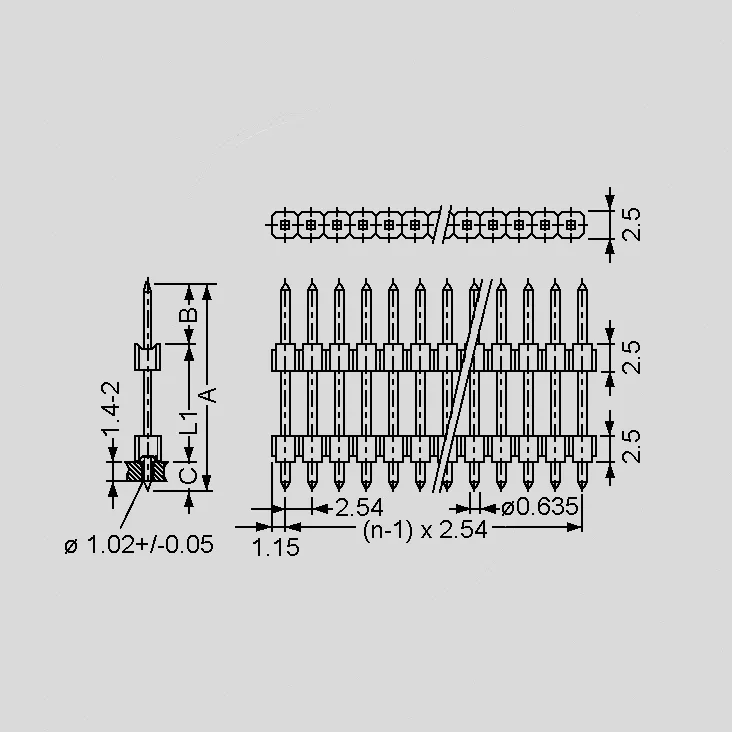

| Dimensions |
| Pin Cross Section: | 0,635x0,635mm |
| |
| ||||
| Part Nr. | A | B | L1 | C |
| [mm] | [mm] | [mm] | [mm] | |
| ASS02029Z | 29,0 | 6,5 | 19,2 | 3,3 |
| ASS02038Z | 37,8 | 6,5 | 28,0 | 3,3 |
| ASS02045Z | 45,3 | 6,5 | 35,5 | 3,3 |
| A = Complete Length, B = Plug-in Area, C = Soldered Area | ||||
| ||||
| Additional Products |
| Single-row and double-row sandwich headers in lengths (A) from 11,3 to 45,3mm with max. 50 poles, also in gold-plated design, 500 pieces upwards available on request, delivery time approx. 2 to 4 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
