Pin Header 100-Pole Angled 2R Sn
Varenummer:
88-146
Varekode: ASL100ZW
Vægt: 7 g
0 stk.
på lager
Gruppe:
F2325
MPE GARRY High-Quality Pin Headers
Series: STL2
Double Row, Angled
Pitch: 2,54mm
MPE GARRY High-Quality Pin Headers
Series: STL2
Double Row, Angled
Pitch: 2,54mm
| Features |
| • Tin-plated or gold-plated design • Arbitrary mounting |
 |
| Technical Specifications |
| |
| Insulating Shell: | Thermoplastic, UL94V-0 |
| Contact Material (DIN17660): | Copper alloy |
| Contact Surface: | |
| ASL_ZW: | Tin-plated |
| ASL_GW: | Gold-plated |
| Rated Current: | 3A |
| Rated Voltage: | 250V AC |
| Breakdown Voltage (1min.): | 500Vrms |
| Temperature Range: | -40...+105°C |
| Short Term (10s): | +260°C |
| Solderability: | IEC 68-2-20 Tb |
| |

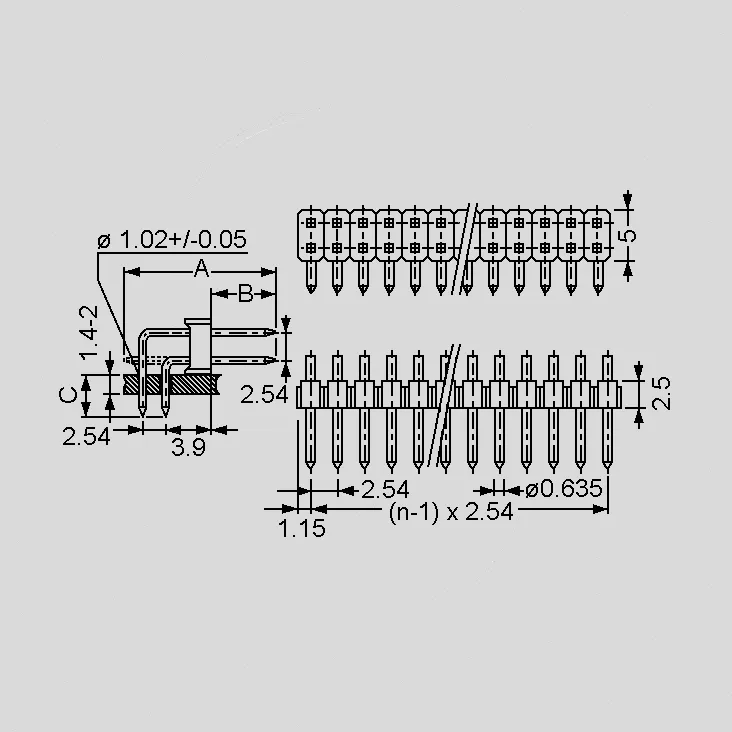

| Dimensions |
| |
| Pin Length, Complete1) (A): | 14,7mm |
| Pin Length, Plug-in Area (B): | 7,0mm |
| Pin Length, Soldered Area (C): | 3,3mm |
| Pin Cross Section | 0,635x0,635mm |
| 1) Full Length of Short Contacts | |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
