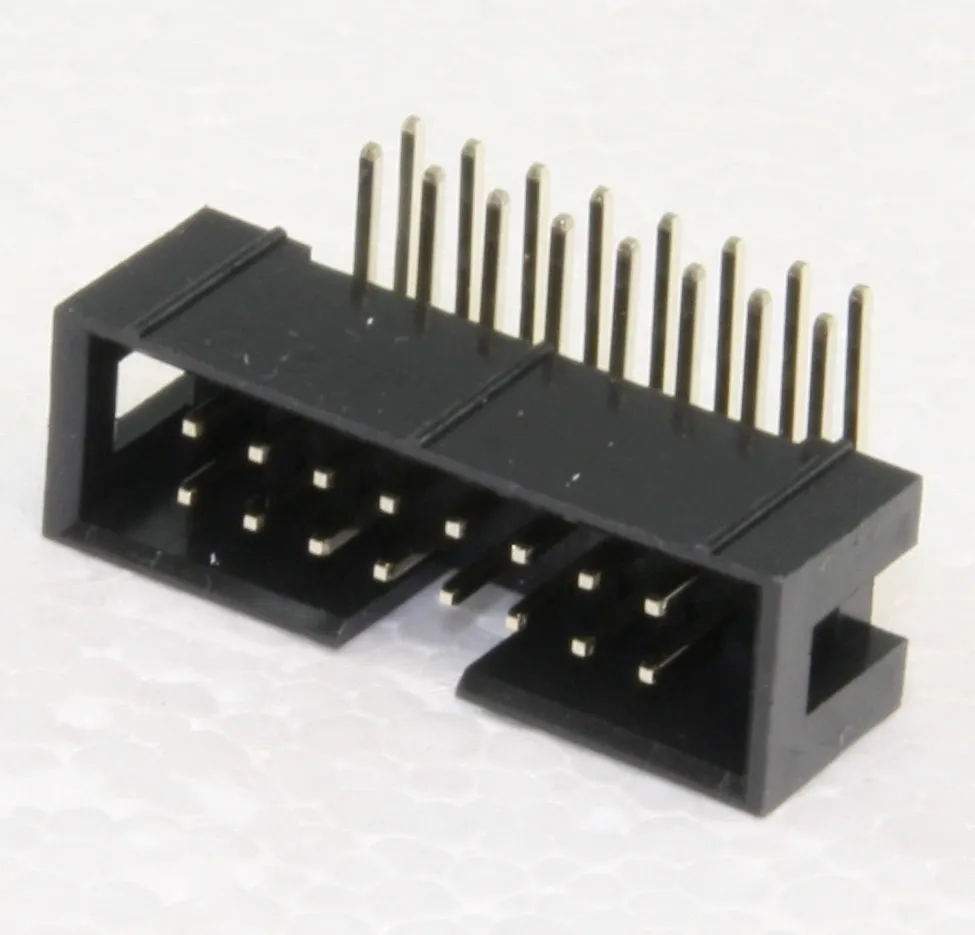

Box Header Angled 16-Pole
Varenummer:
88-114
Varekode: LPH16RA
Vægt: 2 g
77 stk.
på lager
Gruppe:
F2356
GSN Box Headers
Series: LPH_RA
Angled
Colour: Black
Pitch: 2,54mm
GSN Box Headers
Series: LPH_RA
Angled
Colour: Black
Pitch: 2,54mm
| Features |
| • For the IDC connectors series SC_R and PFL (see note) |
 |
| Technical Specifications |
| |
| Insulation Shell: | Nylon 6T, black UL94V-0 |
| Contacts: | Copper Alloy |
| Contact Surface: | Flash Gold |
| Rated Current: | 3A |
| Dielectric Strength: | 250V AC |
| Insulation Resistance, Min.: | 1000MW |
| Temperature Range: | -40...+105°C |
| Shot Time (10s): | +260°C |
| |
| Note |
| • Suitable for the IDC card edge connectors in product groups F2531 and F2535. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.gsn.cn.com |
|
