IDC Connector 14-Pole
Varenummer:
88-037
Varekode: PFL14
Vægt: 2 g
0 stk.
på lager
Gruppe:
F2535
IDC Female Header
Series: PFL
For Flat Cables, Without Strain Relief
Colour: Grey
Pitch: 2,54mm
IDC Female Header
Series: PFL
For Flat Cables, Without Strain Relief
Colour: Grey
Pitch: 2,54mm
| Technical Specifications |
 | |
| Insulating Shell: | Glass-filled Polyester, UL94V-0 |
| Grey, RAL 7035 | |
| Contact Material: | Cu-Alloy |
| Contact Surface: | Selective Gold-plated Over Nickel |
| Rated Current: | 1A |
| Test Voltage: | 1000Veff. |
| Temperature Range: | -65...+150C |
| |

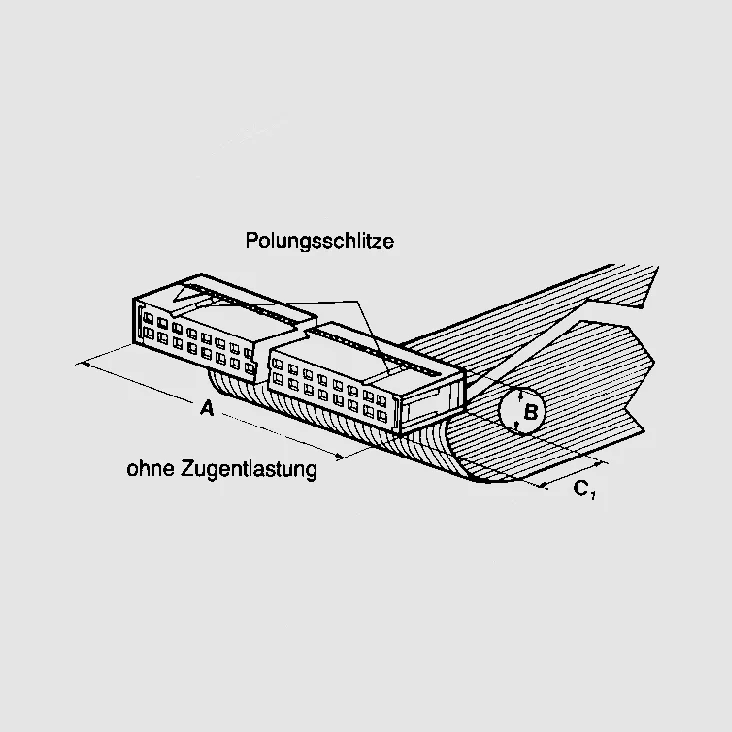

| Dimensions |
| Part Nr. | Nr. of Poles | A | B | C1 |
| [mm] | [mm] | [mm] | ||
| PFL10 | 10 | 17,30 | 6,1 | 10,4±0,1 |
| PFL14 | 14 | 22,40 | 6,1 | 10,4±0,1 |
| PFL16 | 16 | 24,90 | 6,1 | 10,4±0,1 |
| PFL20 | 20 | 30,00 | 6,1 | 10,4±0,1 |
| PFL26 | 26 | 37,60 | 6,1 | 10,4±0,1 |
| PFL34 | 34 | 47,80 | 6,1 | 10,4±0,1 |
| PFL40 | 40 | 55,40 | 6,1 | 10,4±0,1 |
| PFL50 | 50 | 68,10 | 6,1 | 10,4±0,1 |
| PFL60 | 60 | 80,80 | 6,1 | 10,4±0,1 |
| ||||
| Note |
| Suitable strain relief supports see product group F2536 Suitable flat cables see product groups G1833 and G1837 For suitable IDC crimping fixtures, MWZ214, please see product group T4651 in our red "Components and Devices" catalogue. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Delivery contents: strain relief not included in delivery, please see note |
|
| Manufacturer |
| Various |
|
