IDC Connector 34-Pole Strain Relief
Varenummer:
88-032
Varekode: SC34SR
Vægt: 5 g
302 stk.
på lager
Gruppe: F2531
GSN IDC Female Headers
Series: SC_SR
For Flat Cables, With Strain Relief
Colour: Black
Pitch: 2,54mm
Technical Specifications
 |
|
| Insulating Shell: | High Temperature Plastic, UL94V-0 |
| Contact Material: | Cooper Alloy |
| Contact Surface: | Selective Flash Gold |
| Rated Current: | 1A |
| Rated Voltage: | 250VRMS/V DC |
| Dielectric Strength (1Min.): | 500VRMS |
| Temperature Range: | -40...+105°C |
|
|

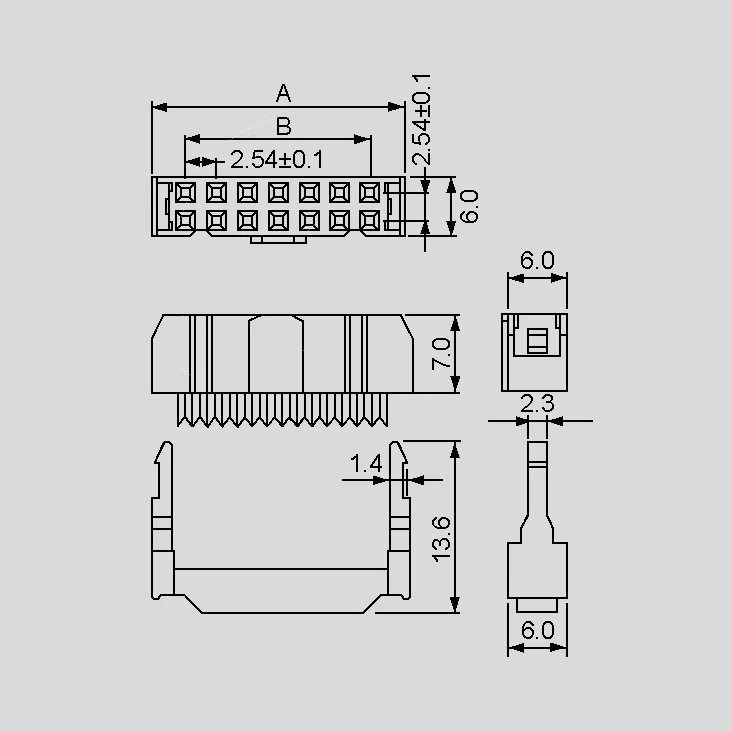

| Dimensions |
| Pole | 6 | 10 | 14 | 16 | 20 | 26 | 34 | 40 | 50 |
| A [mm] | 12,32 | 17,34 | 22,48 | 25,02 | 30,1 | 37,72 | 47,88 | 55,5 | 68,2 |
| B [mm] | 5,08 | 10,16 | 15,24 | 17,78 | 22,86 | 30,48 | 40,64 | 48,26 | 60,96 |
|
|||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = see MOQ in the price list Delivery contents: strain relief included |
