D-Sub-Hood 25-Pole Metallized Fingerskruer
Varenummer:
87-950
Varekode: CGKSUN25ME
Vægt: 17 g
30 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere kan skaffes lørdag d. 10/10
Features
| • Two-piece hoods made of metallized ABS (UL94V-0) silver-chrome colour with straight cable entry • Secure screws and strain relief • Integrated cable clamping in housing • The housing is supplied with retaining screws UNC-40 |
 |

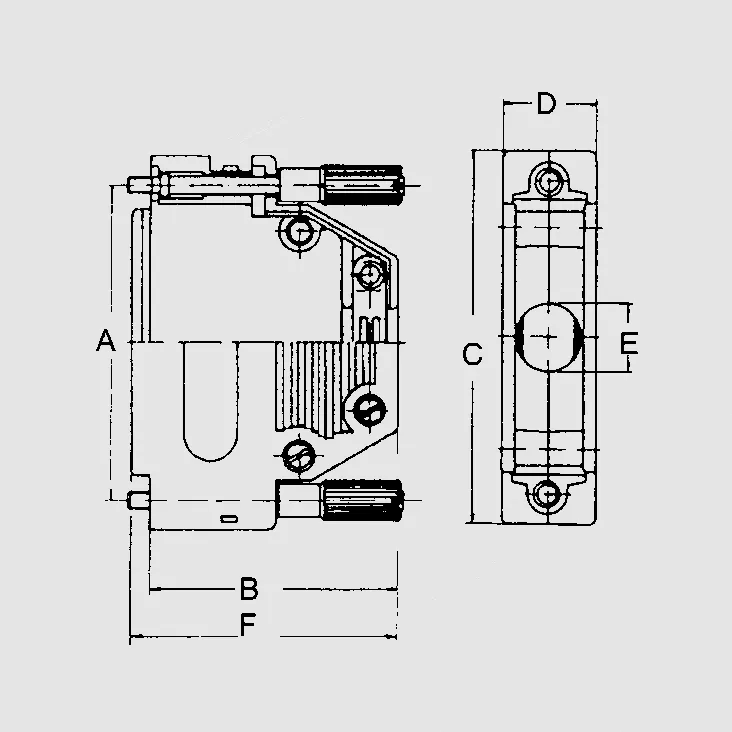

| Dimensions |
| Nr. of Poles | A | B | C | D | E | F |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| 9 | 25,0 | 25,0 | 34,0 | 14,5 | 8,5 | 27,75 |
| 15 | 33,3 | 37,0 | 42,3 | 14,5 | 10,0 | 39,75 |
| 25 | 47,0 | 37,0 | 56,0 | 14,5 | 10,5 | 39,75 |
| 37 | 63,5 | 37,0 | 72,5 | 14,5 | 10,5 | 39,75 |
|
||||||
Produktfiler
D-Sub-Hood 25-Pole Metallized Fingerskruer
87-950
/ CGKSUN25ME
30 stk.
på lager
Bestil nu for afsendelse i morgen
Ved bestilling nu, får vi dem hjem lørdag d. 10/10
Features
| • Two-piece hoods made of metallized ABS (UL94V-0) silver-chrome colour with straight cable entry • Secure screws and strain relief • Integrated cable clamping in housing • The housing is supplied with retaining screws UNC-40 |
|
| Dimensions |
| Nr. of Poles | A | B | C | D | E | F |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| 9 | 25,0 | 25,0 | 34,0 | 14,5 | 8,5 | 27,75 |
| 15 | 33,3 | 37,0 | 42,3 | 14,5 | 10,0 | 39,75 |
| 25 | 47,0 | 37,0 | 56,0 | 14,5 | 10,5 | 39,75 |
| 37 | 63,5 | 37,0 | 72,5 | 14,5 | 10,5 | 39,75 |
|
||||||
