D-sub-hætte 9-pol metalliseret m. fingerskruer lige
Varenummer:
87-948
Varekode: CGKSUN09ME
Vægt: 18 g
0 stk.
på lager
Gruppe:
F4772
CONEC D-Sub Plastic Backshells
Series: CGKS_ME
Metallized with UNC4-40 Thread
F4772
CONEC D-Sub Plastic Backshells
Series: CGKS_ME
Metallized with UNC4-40 Thread
| Features |
| • Two-piece hoods made of metallized ABS (UL94V-0) silver-chrome colour with straight cable entry • Secure screws and strain relief • Integrated cable clamping in housing • The housing is supplied with retaining screws UNC-40 |
 |

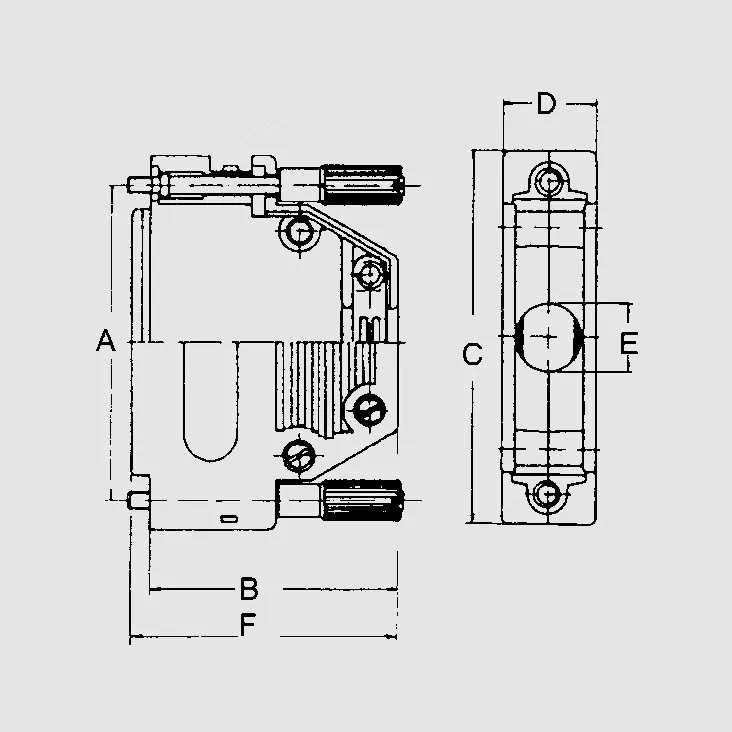

| Dimensions |
| Nr. of Poles | A | B | C | D | E | F |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| 9 | 25,0 | 25,0 | 34,0 | 14,5 | 8,5 | 27,75 |
| 15 | 33,3 | 37,0 | 42,3 | 14,5 | 10,0 | 39,75 |
| 25 | 47,0 | 37,0 | 56,0 | 14,5 | 10,5 | 39,75 |
| 37 | 63,5 | 37,0 | 72,5 | 14,5 | 10,5 | 39,75 |
| ||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
