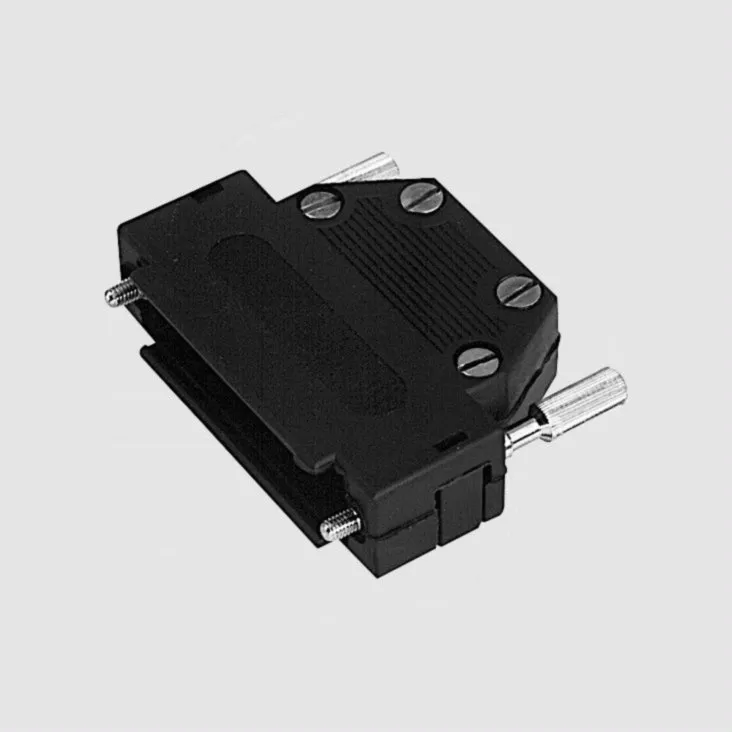

D-Sub-Hood 37-Pole UNC4-40-Thread
Varenummer:
87-946
Varekode: CGKSUN37S
Vægt: 27 g
0 stk.
på lager
Gruppe:
F4771
CONEC D-Sub Plastic Backshells
Series: CGK_S
M3 or UNC4-40 Thread
CONEC D-Sub Plastic Backshells
Series: CGK_S
M3 or UNC4-40 Thread
| Features |
| Two-piece hoods made of ABS (UL94V-0) with straight cable entry. Secure screws and strain relief Integrated cable clamping in housing The housing can be supplied with retaining screws M3 or UNC4-40 on request CGKSM_: Thread M3 CGKSUN_: Thread UNC4-40 |
 |

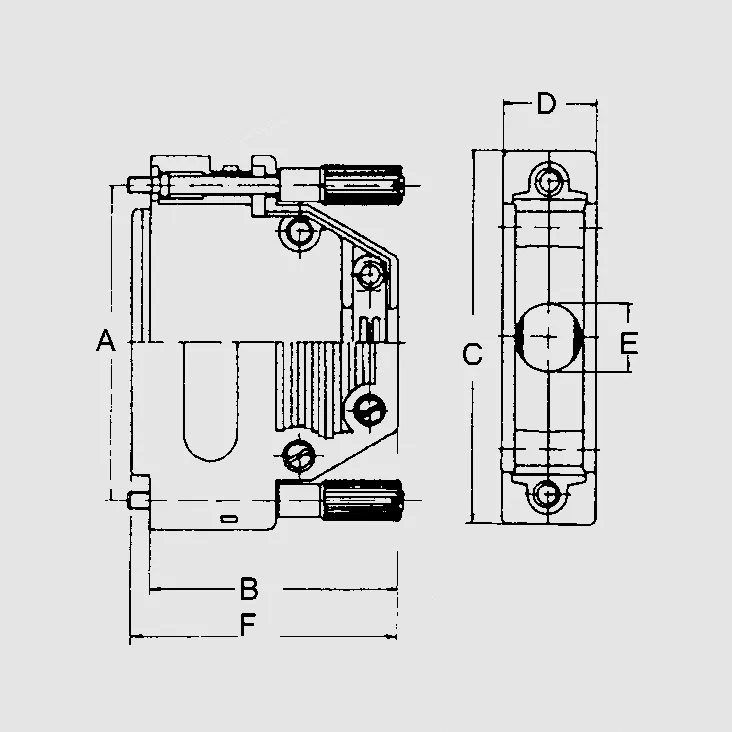

| Dimensions |
| Nr. of Poles | A | B | C | D | E | F |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| 9 | 25,0 | 25,0 | 34,0 | 14,5 | 8,5 | 27,5 |
| 15 | 33,3 | 37,0 | 42,3 | 14,5 | 10,0 | 39,5 |
| 25 | 47,0 | 37,0 | 56,0 | 14,5 | 10,5 | 39,5 |
| 37 | 63,5 | 37,0 | 72,5 | 14,5 | 10,5 | 39,5 |
| 50 | 61,1 | 50,0 | 70,0 | 21,0 | 10,5 | 50,0 |
| ||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces CGKSUN37S, CGKSUN50S: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
